Internationally Approved Cable Command Cable | UL (LiYY) 600v | Sealcon

European Part-No. grey	European Part-No. black	Description & No. Conductors x cross-sec. mm²	Outer Diameter mm	Copper Weight kg/km	Weight ca. kg/km	AWG
83233	83624	Command Cable UL (LiYY) 2X2.08	8.4	39.6	120.0	14
83234	83625	Command Cable UL (LiYY) 3X2.08	8.9	59.6	150.0	14
83235	83626	Command Cable UL (LiYY) 4X2.08	9.6	79.2	190.0	14
83236	83627	Command Cable UL (LiYY) 6X2.08	11.4	119.0	300.0	14
83237	83628	Command Cable UL (LiYY) 10X2.08	15.1	198.4	450.0	14
83238	83629	Command Cable UL (LiYY) 12X2.08	15.6	238.7	500.0	14
83239	83630	Command Cable UL (LiYY) 16X2.08	17.2	319.0	700.0	14
83240	83631	Command Cable UL (LiYY) 18X2.08	18.3	358.4	750.0	14
83241	83632	Command Cable UL (LiYY) 24X2.08	21.5	478.4	900.0	14
83242	83633	Command Cable UL (LiYY) 27X2.08	22.7	538.1	1100.0	14
83243	83634	Command Cable UL (LiYY) 30X2.08	23.5	598.4	1150.0	14
83244	83635	Command Cable UL (LiYY) 36X2.08	25.4	717.2	1800.0	14
83245	83636	Command Cable UL (LiYY) 2X3.2	9.3	61.0	150.0	12
83246	83637	Command Cable UL (LiYY) 3X3.2	9.8	91.4	210.0	12
83247	83638	Command Cable UL (LiYY) 4X3.2	10.8	121.6	300.0	12
83248	83639	Command Cable UL (LiYY) 6X 3.2	12.8	183.7	430.0	12
83249	83640	Command Cable UL (LiYY) 10X3.2	17.0	305.9	500.0	12
83250	83641	Command Cable UL (LiYY) 12X 3.2	17.5	367.6	700.0	12
83251	83642	Command Cable UL (LiYY) 16X3.2	19.8	490.9	810.0	12
83252	83643	Command Cable UL (LiYY) 18X3.2	21.0	551.7	970.0	12
83253	83644	Command Cable UL (LiYY) 24X 3.2	24.8	736.4	1200.0	12

Technical Data

European

Special PVC command cable, approved to UL-Style 2516
Temperature Range
Flexing
-10°C to +80°C (+14°F to +176°F)
Fixed Installation
-20°C to +80°C (+68°F to +176°F)

Nominal Voltage 600 V
Test Voltage 2000 V
Breakdown Voltage
Min. 4000 V
Minimum Bending Radius
Flexing approx. 15x cable Ø

Approvals

Cable Construction

Tinned copper, fine wire conductors to ASTM-B 174, class J-K
Conductor make-up to:
2.08 mm² = 41X0.254 mm
3.20 mm² = 65X0.254 mm
Special PVC conductor insulation class 43 to UL-Std. 1581 table 50.182 (+105°C/+221°F)
Color coded to DIN 47100 or international color code
Conductors stranded in layers with optimal lay-length
Special PVC outer jacket class 43 to UL-Std. 1581 table 50.182 (+105°C/+221°F)

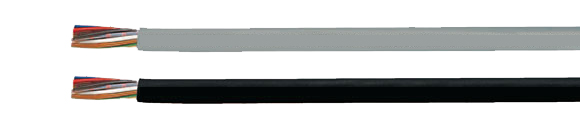

Outer jacket color
Black (international color code)
Gray (DIN 47100 / preferred type from stock)

Application

Suitable for use as a command, measuring and control cable in tool making machinery conveyor system and production lines, in industrial plants and in air conditioning as well as in the steel producing industries.
= The product is conformed with the EC Low-Voltage Directive 2006/95/EG.

Properties

PVC flame retardant according to UL VW-1
Conditionally resistant to: oils, solvents, acids, lye
The materials used in manufacture are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers

Note

AWG sizes are approximate equivalent values. The actual cross-section is in mm².
