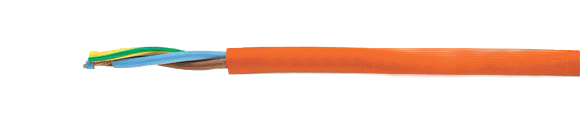

European Installation Cable: H05VV-F/SJT

300V, PVC-Control Cable, 300 V, According to DIN VDE 0281 and UL 62, Orange Jacket

Sealcon, Inc, European & Domestic cable

H05VV-F/SJT 300 V, according to DIN VDE 0281 and UL 62, Installation Cables, RoHS Approved, RoHS Compliant, Sealcon, European
European Part-No. Description & No. Conductors x cross-sec. mm2 Outer Ø (mm) Copper Weight
kg/km
Weight
kg/km
AWG
3110_  H05VV-F/SJT 2X1 7.3 19.2 56.0 17
3111_  H05VV-F/SJT 3G1 7.8 28.8 73.0 17
3112_  H05VV-F/SJT 4G1 8.6 38.4 86.0 17
3113_  H05VV-F/SJT 5G1 9.4 48.0 105.0 17
3114_  H05VV-F/SJT 2x1.5 7.9 28.8 82.0 16
3115_  H05VV-F/SJT 3G1.5 8.4 44.0 96.0 16
3116_  H05VV-F/SJT 4G1.5 9.3 58.0 117.0 16
3117_  H05VV-F/SJT 5G1.5 10.4 72.0 144.0 16
3118_  H05VV-F/SJT 2x2.5 9.2 48.0 118.0 14
3119_  H05VV-F/SJT 3G2.5 10.0 72.0 152.0 14
3120_  H05VV-F/SJT 4G2.5 10.9 96.0 192.0 14
3121_  H05VV-F/SJT 5G2.5 12.2 120.0 243.0 14
3122_  H05VV-F/SJT 2x4 10.6 76.8 195.0 12
3123_  H05VV-F/SJT 3G4 11.5 115.0 235.0 12
3124_  H05VV-F/SJT 4G4 12.4 154.0 300.0 12
3125_  H05VV-F/SJT 5G4 14.1 192.0 361.0 12
Color Code
  • 0 = RAL 5015, blue
  • 1 = RAL 6018, green
  • 2 = RAL 8003, brown
  • 3 = RAL 1021, yellow
  • 4 = RAL 3000, red
  • 5 = RAL 2003, orange
  • 6 = RAL 4005, violet
  • 7 = gold
  • 8 = dusty gold
Please add the individual identification color code to the part numbers below. Further colors on request.
Technical Data European
  • PVC control cable to DIN VDE 0281 part 5 and part 2, IEC 60227-5, HD 21.5 S3 and UL Std. 62 and CSA 22.2 No. 49
  • Temperature Range
    Flexing -5°C (23°F) to +70°C(158 °F);
    Fixed Installation -40°C to +70°C
  • Nominal Voltage
    DIN VDE 0281 U0/U 300/500 V
    UL 62 U 300 V
    CSA U 300 V
  • Test Voltage 2500 V, 5 min.
  • Breakdown Voltage min. 5000 V
  • Spark-Test 6000 V
  • Insulation Resistance
    Min. 20 MOhm x km
  • Minimum Bending Radius
    Approx. 7.5x cable Ø
  • Radiation Resistance
    Up to 80x106 cJ/kg (up to 80 Mrad)
Approvals
RoHSUL CSA CE VDEPCT
Cable Construction
  • Bare copper, fine wire stranded conductor to DIN VDE 0295 cl. 5, BS 6360 cl. 5, IEC 60228 cl. 5, HD 383 and UL Std. 62
  • PVC insulation TI2 to DIN VDE 0281 part 1 and class 43 to UL Std. 62 (Table 50.182, UL Std. 1581) according to CSA Std. C 22.2 No 49 Type SJT
  • Conductor identification according to color code DIN VDE 0293-308, one colored
  • Green-yellow grounding, 3 conductors and above
  • Conductor stranded with optimal lay-length
  • PVC outer jacket TM2 to DIN VDE 0281 part 1 and class 43 to UL Std. 62 (Table 50.182, UL Std. 1581) according to CSA Std. C 22.2 No 49 Type SJT
  • Jacket color by request
  • Imprint on the outer jacket: e.g.
    European VDE HAR
    E 192384 (UL) SJT xxxx VW-1/
    LL 113926 CSA SJT 60°C FT1
Application
These flexible PVC control cables, VDE-HAR-UL-CSA approved, are designed for the export and also for the export-orientated-equipment. These cables are especially suited to use for the appliance with medium mechanical stresses with free movement without tensile stress in households, kitchens and offices, also for household appliances in damp and wet areas, e.g. refrigerators, washing machines, spin-driver etc., as far as this cable is admitted to the relevant specifications of the equipment.
These cables are suited to be used for cooking and heating apparatus under the condition that cable does not come in direct contact with hot parts of the apparatus and no other influences or heat.
The cables are suitable for fixed installation in furniture, partition walls, decoration covering and in hollow spaces of prefabricated building parts.
They are not suitable for use in open air, in industries (also permitted to tailor workshops and of that kind) and in agriculture plants and for connecting commercial electrical tools.
CE Approval = The product is conformed with the EC Low-Voltage Directive 2006/95/EG.
Properties
  • PVC self-extinguishing and flame retardant according to VDE 0482-332-1-2, DIN EN 60332-1-2 / IEC 60332-1 (equivalent DIN VDE 0472 part 804 test method B)
  • The materials used in manufacture are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers
Note
  • G = with green-yellow grounding
    x = without green-yellow grounding
Cable Accessories
  • Coming Soon!
Cable Technical Data Construction and ApplicationProperties and Note Accessories
