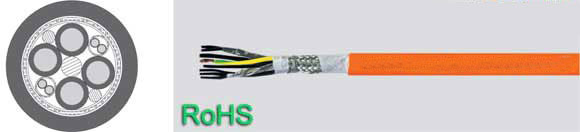

Bare copper, ultra-fine
wire to DIN VDE 0295 cl. 6 and/or IEC 60228
cl. 6
TPE-E conductor insulation,
halogen-free
Black power supply conductors
with imprint U1, V2, W3
Green-yellow grounding
Black control conductors
with white imprint 5-6 and 7-8
Shielding of the control
conductors in pairs wrapped with plastic
aluminum foil, copper drain-wire tinned and
tinned copper braid, approx. coverage 85%
Control conductors stranded
in pairs and laid up in layers together with
the power supply conductors with optimal
lay length and stabilizing filler
Fleece wrapping facilitates
sliding
Overall shielding of tinned
copper wire braid, coverage approx. 85%
PUR outer jacket
Jacket color: Orange (RAL
2003) according to DESINA®
Application
The
combination of supply conductors with
the control conductors for the braking
function and the thermal protection
in these cables is ideal. Precision
servomotors, as used today in many
areas of highly-automated manufacturing
processes, call for high-quality, reliable
and long-lasting cables. These requirements
are met to a high degree by these cables.
The cables have an additional overall
shielding to ensure EMC compatibility,
i.e. for protection against electromagnetic
interference. Production is based on
the specifications of established manufacturers
of servo-drives and controls, as well
as on various VDE, UL and CSA standards.
Applications include machine, plant
and robot construction, automation,
drive, control and production engineering.
Attractive for export-oriented mechanical
and system engineering. EMI =
Electromagnetic
Interference
To optimize the EMI features we recommend
a large round contact of the copper
braiding on both ends. =
The product
is conformed
with the EC
Low-Voltage
Directive 2006/95/EG.
Properties
PUR outer jacket:
low adhesion, extremely abrasion resistant,
halogen-free, resistant to UV, oil,
hydrolysis and microbial attack
PUR jacket: self-extinguishing
and flame retardant, test method B acc.
to DIN VDE 0472 part 804 and IEC 60332-1
Optimum compliance
with requirements for electromagnetic interference
(EMI) by approx. 85% coverage from the
braided shielding
These cables are produced
to high quality specifications and conform
to the DESINA®-standard
Note
For extreme applications extending beyond
standard solutions we recommend that you
request our questionnaire, which has been
especially designed for energy supply systems
Please observe applicable installation
regulations for use in energy supply chains
For linear motors, these
cables are also available with 0.5 mm² signal
conductors
