PVC control cable to DIN VDE 0281
part 5 and part 2, IEC 60227-5, HD
21.5 S3 and UL-Std. 62 and CSA 22.2
No. 49
Temperature Range Flexing
-5°C to +70°C (+23°F to +158°F)
Fixed Installation
-40°C to +70°C (-40°F to +158°F)
Nominal Voltage DIN VDE 0281 U0/U 300/500
V
UL 62 U 300 V
CSA U 300 V
Test Voltage 2500
V, 5 min.
Breakdown Voltage min.
5000 V
Spark-Test 6000
V
Insulation Resistance Min. 20 MOhm x km
Minimum Bending Radius Approx. 7.5x cable Ø
Radiation Resistance Up to 80x106 cJ/kg (up to
80 Mrad)
Approvals
Cable
Construction
Bare copper, fine wire stranded
conductor to DIN VDE 0295 cl. 5,
BS 6360 cl. 5, IEC 60228 cl. 5, HD
383 and UL Std. 62
PVC insulation TI2 to DIN VDE 0281
part 1 and class 43 to UL Std. 62
(Table 50.182, UL Std. 1581) according
to CSA Std. C 22.2 No 49 Type SJT
Conductor identification according to
color code DIN VDE 0293-308, one
colored
Green-yellow grounding, 3 conductors
and above
Conductor stranded with optimal lay-length
PVC outer jacket TM2 to DIN VDE
0281 part 1 and class 43 to UL Std.
62 (Table 50.182, UL Std. 1581) according
to CSA Std. C 22.2 No 49 Type SJT

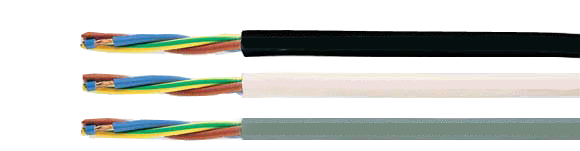

Jacket color: Black, white or gray
Imprint on the outer jacket: e.g. European VDE HAR
E 192384 (UL) SJT xxxx VW-1/
LL 113926 CSA SJT 60°C FT1
Application
These flexible
PVC control cables, VDE-HAR-UL-CSA
approved, are designed for the
export and also for the export-orientated-equipment.
These cables are especially suited
to use for the appliance with medium
mechanical stresses with free movement
without tensile stress in households,
kitchens and offices, also for
household appliances in damp and
wet areas, e.g. refrigerators,
washing machines, spin-driver etc.,
as far as this cable is admitted
to the relevant specifications
of the equipment.
These cables are suited to be used
for cooking and heating apparatus
under the condition that cable does
not come in direct contact with hot
parts of the apparatus and no other
influences or heat.
The cables are suitable for fixed
installation in furniture, partition
walls, decoration covering and in
hollow spaces of prefabricated building
parts.
They are not suitable for use in
open air, in industries (also permitted
to tailor workshops and of that kind)
and in agriculture plants and for
connecting commercial electrical
tools. =
The product is conformed with the EC
Low-Voltage Directive 2006/95/EG.
Properties
PVC self-extinguishing and flame
retardant according to DIN VDE 0482
part 265-2-1 / EN 50265-2-1 / IEC 60332-1
(equivalent DIN VDE 0472 part 804
test method B)
The materials used in manufacture are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers
Note
G = with green-yellow grounding;
x = without green-yellow grounding.
