PDF Printable PDF

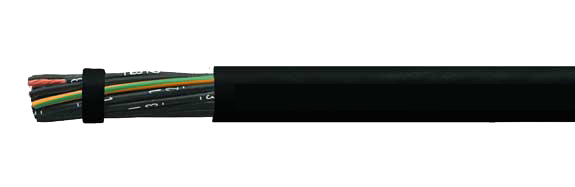

European Media Cable : Loadcable 300/500V + 600/1000V
Stage Light, Electrical Load

Sealcon, Inc, European & Domestic cable

Audio Cables, Digital Audio Cables, AES/EBU Digital Audio Cables, Multiparied, Pairs with Foil Shielding and Overall Foil Shielding, RoHS Approved, RoHS Compliant, Sealcon, European
Loadcable 300/500V
European Part-No. Structure Conductor Isolation mm Outer Diameter
ca. mm		 Copper Weight
kg / km		 Weight
ca. kg / km
400143 14 G 1.5 <13.3 13.4 201.6 322.0
400144 18 G 1.5 <13.3 15.2 259.2 422.0
400145 14 G 2.5 <7.98 16.6 336.0 487.0
400146 18 G 2.5 <7.98 19.0 432.0 634.0
Loadcable 600/1000V
European Part-No. Structure Conductor Isolation mm Outer Diameter
ca. mm		 Copper Weight
kg / km		 Weight
ca. kg / km
400147 14 G 1.5 <13.3 17.7 201.6 430.0
400148 18 G 1.5 <13.3 20.2 259.2 560.0
400149 14 G 2.5 <7.98 20.0 336.0 604.0
400150 18 G 2.5 <7.98 22.6 432.0 778.0
Technical Data
Weight: Approx. 322 kg/km
Min. Bending Radius for Laying: 53.6 mm
Operating Temperature Range Min.: -30°C to -40°F
Operating Temperature Range Max.: +80°C to +176°F
Copper Weight: 201.6 kg/km
Electrical Characteristics

Conductor Resistance:

 13.3 max Ohm/km
Approvals
RoHS
Type: Camera Cable European
Cable Structure Triax 8
tr>
Conductor Material: Copper, bare
Core Insulation: PVC flexible at low temperatures
Core Colors: Black number coded + gn/ye
Stranding Element: 14 cores stranded
Jacket Material: PVC flexible at low temperatures
Cable External Diameter: Approx. 13.4 mm
Jacket Color: Black
Application
The highly flexible load cables UO/U 300/500V and load cables U0/U 600/1000V are applied at medium mehcanical stress in professional stage and lighting technology and other load circuits. The flexibility is achieved through the building with extra fine 0.15mm² strand and the conductor and jacket insulation from cold-flexible PVC, this is also available as a customized product.
Properties
  • Not available
Note
  • Not available
Cable Accessories
  • Coming Soon!
Cable Technical Data Construction and ApplicationProperties and Note Accessories
