European Audio Cable: Microphone Cables

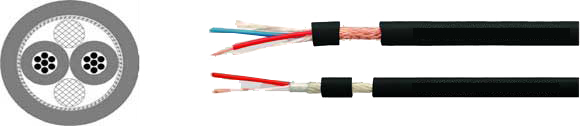

Microphone Cables with Braided Shielding

Sealcon, Inc, European & Domestic cable

Audio Cables, Digital Audio Cables, AES/EBU Digital Audio Cables, Multiparied, Pairs with Foil Shielding and Overall Foil Shielding, RoHS Approved, RoHS Compliant, Sealcon, European
European Part Number: 400040
European Part Number: 400080
Type Microphone Cables Microphone Cables
Cable Construction 2 x 0.34 2 x 0.50
Conductor Material: Copper, bare Copper, bare
Conductor Insulation: PE PE
Conductor Colors: Red, Blue Red, White
Stranding Element: 2 conductors with textile filler stranded 2 conductors with textile filler stranded
Jacket Material: PVC PVC
Cable External Diameter: approx. 6.5 mm approx. 6.7 mm
Jacket Color: black black
>
Electrical Data
Conductor Resistance Max.: 53 Ohm / km 37 Ohm / km
Insulation Resistance Min.: 1.0 GOhm x km 1.0 GOhm x km
Technical Data
Weight: Approximately 30.0 kg/km Approximately 59.0 kg/km
Min. Bending Radius (Laying): 65.0 mm 67.0 mm
Operating Temp.Range, min.: -30°C/-22°F -30°C/-22°F
Operating Temp.Range, max.: +70°C/+158°F +70°C/+158°F
Copper Weight: 13.8 kg/km 37.0 kg/km
Approvals
RoHS
Type Microphone Cables Microphone Cables
Cable Construction 2 x 0.34 2 x 0.50
Conductor Material: Copper, bare Copper, bare
Conductor Insulation: PE PE
Conductor Colors: Red, Blue Red, White
Stranding Element: 2 conductors with textile filler stranded 2 conductors with textile filler stranded
Jacket Material: PVC PVC
Cable External Diameter: approx. 6.5 mm approx. 6.7 mm
Jacket Color: black black
Application
The 2-conductor HELUSOUND® microphone cable with spiral shield is suitable for use in professional stage and studio operation. The microphone cable 2x0.15 has a double spiral shield made of bare copper wires.
Properties
  • Not Available
Note
  • Not Available
Cable Accessories
  • Coming Soon!
Cable Technical Data Construction and ApplicationProperties and Note Accessories
