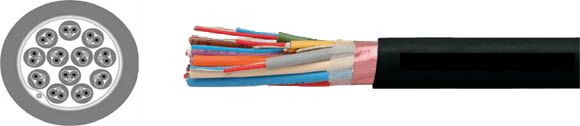

AES/EBU Digital Audio Cables, Multipaired, Spirally Shielded Pairs and Overall Foil Shielding
Sealcon, Inc, European & Domestic cable
European Part
Number: 400030
Type:
Digital Audio Cables
European
Cable
Structure
12 x 2 x 0.22
Conductor Material:
Copper, Bare
Conductor Insulation:
Cell PE
Conductor Colors:
Red, Blue
Stranding Element:
2 conductors with 1 ground conductor
Drain Wire:
Yes
Jacket Material:
PVC
Cable External Diameter:
Approx. 17.0 mm
Jacket Color:
Black
Technical Data
Weight:
Approx. 320.0 kg/km
Min. Bending Radius for Laying:
170 mm
Operating Temperature Range Min.:
-20°C to -4°F
Operating Temperature Range Max.:
+70°C to +158°F
Copper Weight:
171.0 kg/km
Electrical
Characteristics
Characteristic Impedance:
110.0
Ohm/km
Conductor Resistance Max.:
86 Ohm x km
Insulation Resistance Min.:
1.0 GOhm x km
Norms
Halogen-Free acc. to EN 50267-2-3
Approvals
Type:
Digital Audio Cables
European
Cable
Structure
12 x 2 x 0.22
Conductor Material:
Copper, Bare
Conductor Insulation:
Cell PE
Conductor Colors:
Red, Blue
Stranding Element:
2 conductors with 1 ground conductor
Drain Wire:
Yes
Jacket Material:
PVC
Cable External Diameter:
Approx. 17.0 mm
Jacket Color:
Black
Application
The multipaired, digital HELUSOUND® AES/EBU audio cable is characterized by its shielding in pairs, its element jackets and by the additional overall jacket. This cable is suitable for the transmission of digital audio signals.
