European Audio Cable: Speaker Cables

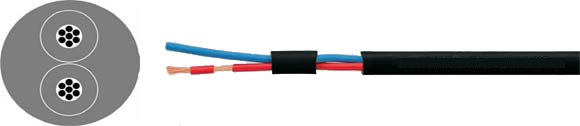

Speaker Cable, Round, Paired

Sealcon, Inc, European & Domestic cable

Audio Cables, Digital Audio Cables, AES/EBU Digital Audio Cables, Multiparied, Pairs with Foil Shielding and Overall Foil Shielding, RoHS Approved, RoHS Compliant, Sealcon, European
European Part-No. Structure Conductor Resistance
Ohm/km		 Outer Diameter
ca. mm		 Copper Weight
kg / km		 Weight
ca. kg / km
400056 2 x 1.5 <13.3 7.0 30.0 74
400057 2 x 2.5 <7.98 7.6 50.0 97
400058 4 x 4.0 <4.95 11.0 80.0 187
Type: Speaker Cable European
Cable Structure 2 x 1.5
Conductor Material: Copper, bare
Conductor Insulation: PVC
Conductor Colors: Red, Blue
Stranding Element: Pairs Stranded
Jacket Material: PVC
Cable External Diameter: Approx. 7.0 mm
Jacket Color: Black
Technical Data
Weight: Approx. 74.0 kg/km
Min. Bending Radius for Laying: 70 mm
Operating Temperature Range Min.: -25°C to -13°F
Operating Temperature Range Max.: +70°C to +158°F
Copper Weight: 30.0 kg/km
Electrical Characteristics

Conductor Resistance Max.:

 13.3 Ohm/km
Insulation Resistance Min.: 5.0 GOhm/km
Norms
Halogen-free acc. to EN 50267-2-3
Approvals
RoHS
Type: Speaker Cable European
Cable Structure 2 x 1.5
Conductor Material: Copper, bare
Conductor Insulation: PVC
Conductor Colors: Red, Blue
Stranding Element: Pairs Stranded
Jacket Material: PVC
Cable External Diameter: Approx. 7.0 mm
Jacket Color: Black
Application
The HELUSOUND® speaker cable with 2 conductors and jacket is extremely flexible. It is used in all public address systems due to its robustness and winding capability, however particularly for mobile use.
Properties
  • Not available
Note
  • Not available
Cable Accessories
  • Coming Soon!
Cable Technical Data Construction and ApplicationProperties and Note Accessories
