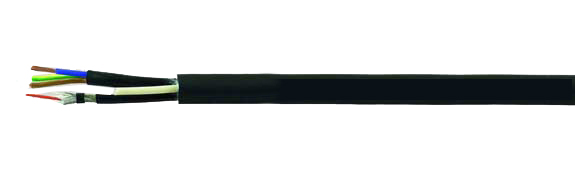

European Audio Cable: DMX + POWER

HeluSound
DMX-POWER

Sealcon, Inc, European & Domestic cable

Audio Cables, Digital Audio Cables, AES/EBU Digital Audio Cables, Multiparied, Pairs with Foil Shielding and Overall Foil Shielding, RoHS Approved, RoHS Compliant, Sealcon, European
European Part Number: 400151
Type: DMX Cable European
Cable Structure (1x2x0,25)+3G1.5
Conductor Material: Copper, bare
Conductor Insulation: Foam-skin-PE (DMX) PVC (Power)
Stranding Element: DMX - Element together with Power - Element and filler stranded
Jacket Material: PVC
Cable External Diameter: Approx. 13.2 mm
Jacket Color: Black
Technical Data
Weight: Approx. 50.0 kg/km
Copper Weight: 60.5 kg/km
Electrical Characteristics
Characteristic Impedance: 110.0 Ohm/km
Approvals
RoHS
Type: DMX Cable European
Cable Structure (1 x 2 x 0.25) + 3G1.5 QMM
Conductor Material: Copper, bare
Conductor Insulation: Foam-skin-PE
Stranding Element: Double conductor
Jacket Material: PVC
Cable External Diameter: Approx. 7.4 mm
Jacket Color: Black
Application
The HELUSOUND® DMX+POWER hybrid cable combines a shielded light control wire and the power supply wire. The DMX-cable, which is shielded by a tin-coated copper braiding is perfectly suited for the control of light systems and mixing boards (110 Ohm characteristic intrinsic impedance). It highlights a soft PVC insulation and it is qualified for the use at indoor and outdoor installations. The DMX cable can also be used for the transmission of audio signals such as a microphone wire or as a power supply wire for active loudspeaker systems.
Properties
  • Not available
Note
  • Not available
Cable Accessories
  • Coming Soon!
