Enclosure Home Page|Enclosures w/ Functional Integrity


FK 7045 - Cable Junction Box - Tested for Functional Integrity

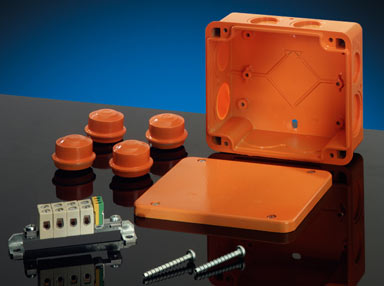

FK 7105
  Enlarge Picture

FK 9105 - Cable Junction Box
Enlarge Picture
  • for normal environment and protected outdoor
  • connecting terminal made from ceramic with resistance to high temperatures
  • Intrinsic fire resistance in accordance with DIN 4102 part 12 in combination with function-retaining cables
  • The enclosed screw anchors can be used for concrete C20/25, limestone blocks KSV 12, building bricks MZ 12 and clinker bricks KS 12.
rated connecting capacity Connection box for 2 cables 1.5-10 mm²
Junction box 1.5-4 mm²
conductor material: Cu
Polarity 5-pole, per pole
conductor cross section sol 4 x 1.5 mm²
sol 4 x 2.5 mm²
sol 4 x 4 mm²
sol 2 x 6 mm²
conductor cross section sol 2 x 10 mm²
current carrying capacity of the terminal 40 A
rated insulation voltage AC/DC 400 V
degree of protection: IP 65
material: Duroplastic
color: orange RAL 2003
cable entry included 4 EDKF 40
sealing range 11-30 mm
in accordance with DIN 4102 part 12 IEC 60,670-22
Testings: Tested with the cable manufacturers Dätwyler, Eupen, Studer, Prysmian and Nexans for the intrinsic fire resistance E30 and E90, see test certificate no.: P-MPA-E-08-021, download available from www.hensel-electric.de

Cable Junction Box - tested for Functional Integrity Cable Junction Box - tested for Functional Integrity


Accessories for FK 7045: EDKF 32 - Grommet, IP 66
EDK 32 - Grommet, IP 65
  Enlarge Picture

EDK 32 - Grommet, IP 65
Enlarge Picture



  • for indoor - normal environment and (or) protected outdoor installation
  • ambient temperature - 25° to + 35° C




degree of protection: IP 66
material: thermoplastic
color: orange RAL 2003
sealing range 8-23 mm
glow wire test IEC 60 695-2-11 750°C


FK 7105 Features & Applications

Application area Suitable for indoor installation and outdoor installation, protected against weather influences according to DIN VDE 0100 Part 737
ambient temperature Average value over 24 hours + 35° C
Maximum value + 40° C
Minimum value - 25° C
Relative humidity 50% at 40° C short-time 100% at 25° C
Toxic behavior Duroplastic halogen-free "halogen-free" in accordance with the examination of the cables and insulated wires - corrosiveness of fumes - as per IEC 754-2

Our products are used in the following areas of application:

  • Companies involved in the processing of metal, wood and paper, cement factories
  • Agricultural and food industries
  • Water treatment and sewage plants, power stations and cold-storage depots
  • Banks and insurance buildings
  • Leisure and commercial centers
  • Hotel and cinema complexes
  • Hospitals and clinics
  • Schools and universities
  • Stadiums and sports centers
  • Gas stations and traffic infrastructure in ports, underground stations, tunnel and road construction
  • Indoor and outdoor installations
