Push Button (1/8 NPT Input,

3-Way Normally Open Valves)

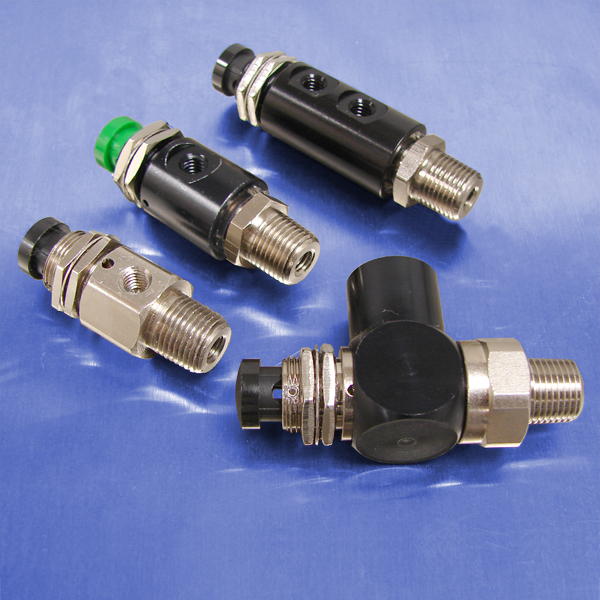

Pneumadyne manufactures two styles of 3-way normally open valves with 1/8 NPT input ports to accommodate application requirements.

Our highly reliable "0" Series valve, part number A0-31-1, features a swivel input port for critical valve alignment.

The "11" Series valves, part numbers start with A11, has a swivel output port as well as push-in connections to speed tubing installation.

Features:

• Clear anodized for corrosion and wear resistance
• Swivel ports accommodate alignment requirements
• Internal poppet design contributes to long product life
• Compact size is ideal for limited space applications.
• Locknuts (2) and washer provided
• Durable nylon push button actuators

Performance Data:

• Operating Pressure: 0 to 125 psi
• Flow Rate: Ranges from 17.3 to 19 scfm at 125 psi depending upon the valve selected.
