Bimba Pneumadyne Inc. - Pneumatic Valves

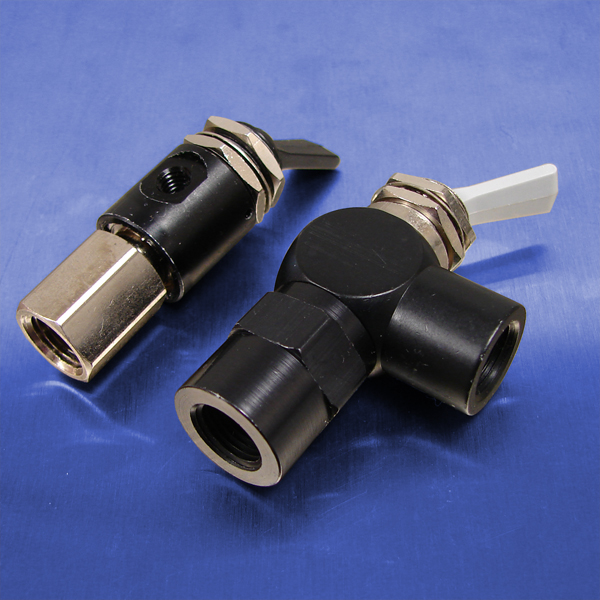

Detented Toggle (1/8 NPT (F) Input,

3-Way Normally Open Valves)

3-way normally open valves are offered in two styles to fit your application requirements. Pneumadyne's "0" Series valve, part number H0-31-4, features a swivel input port to accommodate critical alignment. The "11" Series, part numbers begin with H11, have a swivel output port as well as push-in connections to ease tubing installation. Durable nylon toggles are retained by a specially designed roll pin which extends service life and will not fall out.

Features:

• Clear anodized for corrosion and wear resistance
• Miniature size is ideal for limited space applications
• Internal poppet design contributes to long product life
• Swivel ports accommodate alignment requirements
• Nuts and lockwasher provided for panel mounting

Performance Data:

• Operating Pressure: 0 to 125 psi
• Flow Rate: Ranges from 17.3 to 19 scfm at 125 psi depending upon valve selected
