	Bimba Pneumadyne Inc. - Pneumatic Valves

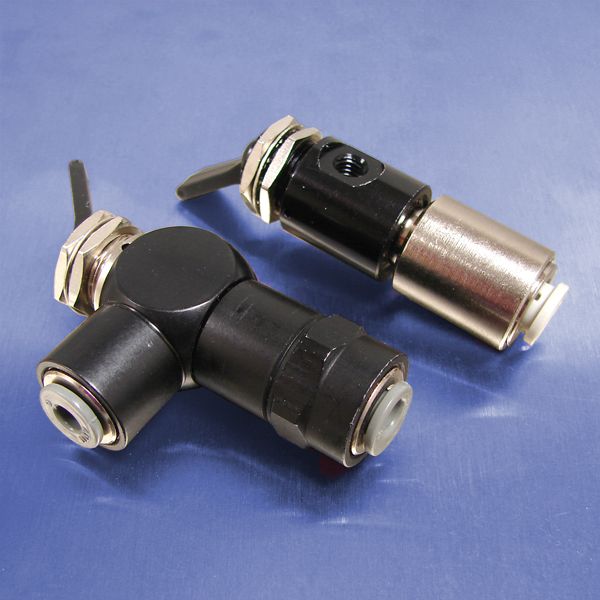

Click to enlarge	Momentary Toggle (1/4 Push-in Input Port, 3-Way Normally Closed Valves) A variety of 3-way normally closed valves with push-in ports are available for plumbing convenience. Push-to-connect ports speed tubing and valve installation. Pneumadyne's highly reliable "0" Series valve (part number F0-30-6) features a swivel input port for alignment purposes. In addition to a swivel input port, the "3" Series valve, part number F3-30-6, has a 10-32 (F) exhaust port for the removal of exhaust flow in liquid or cleanroom applications. Our "11" Series, part numbers begin with F11, features a swivel output port for plumbing convenience. Push-in ports are also offered in the output to speed tubing installation. Features: • Anodized for corrosion and wear resistance • Swivel ports accommodate alignment requirements • Push-in ports speed tubing installation • Durable nylon momentary toggles • Nuts and lockwasher included for panel mounting Performance Data: • Operating Pressure: 0 to 125 psi • Flow Rate: Ranges from 15.4 to 22.1 scfm at 125 psi depending upon the valve selected.

Pneumadyne - Momentary Toggle (1/4 Push-in Input, 3-Way Normally Closed Valves
Part Number	EXHAUST PORT	Input Port	Output Port
Momentary Toggle (1/4 Push-in Input Port, 3-Way NC Valves)
F0-30-6	Non-Threaded	1/4 Push-in	10-32 (F)
F3-30-6	10-32 (F)	1/4 Push-in	10-32 (F)
F11-30-64	Non-Threaded	1/4 Push-in	1/8 NPT (F)
F11-30-66	Non-Threaded	1/4 Push-in	1/4" Push-in
F11-30-67	Non-Threaded	1/4 Push-in	5/32" Push-in

Contact Sealcon to be your Pneumatic Components & Systems Supplier

We have access to a large amount of Pneumadyne Bimba inventory. They specialize in a wide range of standard miniature pneumatic valves. We can also assist you with design and engineering of custom pneumatic components or full pneumatic control systems.
