Bimba Pneumadyne Inc. - Pneumatic Valves

Momentary Toggle (1/8 NPT Input,

2-Way Normally Open Valves)

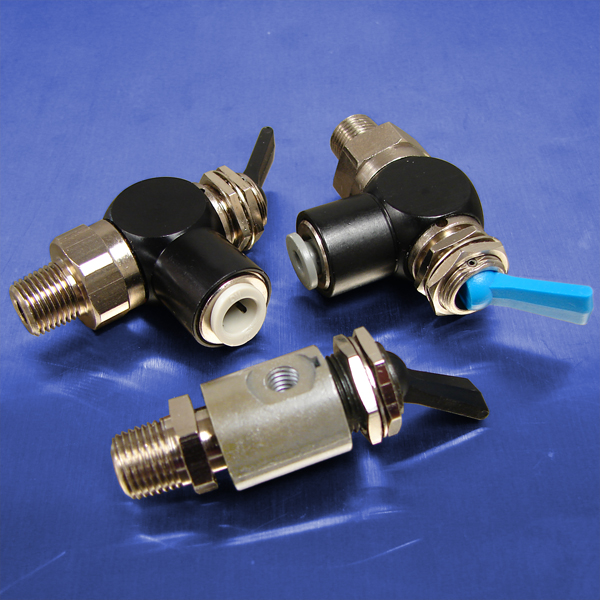

2-way normally open valves with 1/8 NPT input ports are available in two styles for plumbing convenience.

Pneumadyne’s “0” Series valve, F0-21-1, features a swivel input port for valve alignment.

The “11” Series valves, part numbers beginning with F11, feature a swivel output port to fit application requirements. Output ports are also available with push-in connections for faster tubing installation..

Features:

• Swivel ports accommodate alignment requirements
• Black anodized and electroless nickel plated valve bodies resist corrosion
• Internal poppet design contributes to long product life
• Miniature size is ideal for limited space applications
• Durable nylon momentary toggles
• Nuts and lockwasher provided

Performance Data:

• Operating Pressure: 0 to 125 psi
• Flow Rate: Ranges from 17.3 to 19 scfm at 125 psi depending upon the valve selected. Download Performance Data for specific information.
