Pneumatic Valves

Momentary Toggle (1/8 NPT Input,

2-Way Valves)

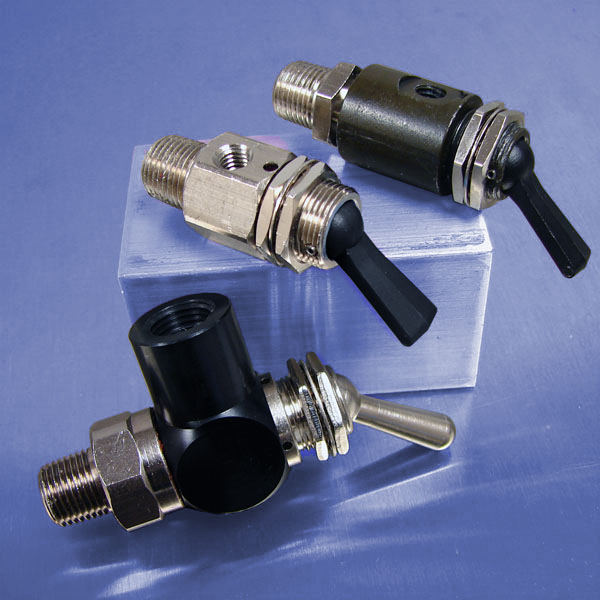

To accommodate plumbing requirements, Pneumadyne manufactures several styles of 2-way valves with 1/8 NPT input ports.

The input port of the “0” Series valve, part number F0-20-1, swivels for valve alignment purposes.

The “300” Series valves, C030703 & C030723, can be used in vacuum applications to 26” Hg and are ideal for mounting directly in a manifold.

Metal and nylon toggles are offered to fit actuation requirements. Nylon toggles are available in seven colors with black as standard. Contact the factory for colored actuators.

Features:

• Swivel ports are ideal for valve alignment
• Black anodized or electroless nickel plated for corrosion resistance
• Compact size
• Nylon or metal toggles are available to fit actuation requirements
• Nuts (2) and lockwasher provided

Performance Data:

• Operating Pressure: 26" Hg to 125 psi
• Flow Rate: Ranges from 17.3 to 22.1 scfm at 125 psi depending upon the valve selected. Download Performance Data for specific information.
