Sure Seal "Captive Sleeve" Heavy Duty Brass Fittings

Used When Greater PSI Is Needed. Use With Copper Or SemiRigid Plastic Tubing. Brass Sleeve Is Attached To Nut Allowing For Faster, More Reliable Assembly Than With Standard Compression. Use #461 Insert With Plastic Tubing.

CS61

Brass Captive Sleeve & Nut Brass

CS62

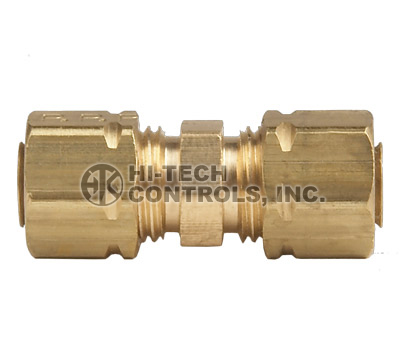

Brass Union Captive Sleeve

CS68

Brass Male Connector Captive Sleeve

Category Number	Tube Outer Diameter x Male Pipe (inches)
CS68A	1/8 X 1/8
CS68B	3/16 X 1/8
CS68BB	3/16 X 1/4
CS68C	1/4 X 1/8
CS68CC	1/4 X 1/4
CS68CE	1/4 X 3/8
CS68CF	1/4 X 1/2
CS68D	5/16 X 1/8
CS68DD	5/16 X 1/4
CS68E	3/8 X 1/8
CS68EE	3/8 X 1/4
CS68EEE	3/8 X 3/8
CS68EF	3/8 X 1/2
CS68EJ	3/8 X 3/4
CS68F	1/2 X 3/8
CS68FC	1/2 X 1/4
CS68FF	1/2 X 1/2
CS68FJ	1/2 X 3/4
CS68H	5/8 X 1/2
CS68HE	5/8 X 3/8
CS68HJ	5/8 X 3/4
CS68J	3/4 X 1/2
CS68JJ	3/4 X 3/4
CS68NN	1" X 1"

CS66

Brass Female Connector Captive Sleeve

Category Number	Tube Outer Diameter x Female Pipe (inches)
CS66A	1/8 X 1/8
CS66B	3/16 X 1/8
CS66C	1/4 X 1/8
CS66CC	1/4 X 1/4
CS66CE	1/4 X 3/8
CS66D	5/16 X 1/8
CS66DD	5/16 X 1/4
CS66E	3/8 X 1/8
CS66EE	3/8 X 1/4
CS66EEE	3/8 X 3/8
CS66EF	3/8 X 1/2
CS66EJ	3/8 X 3/4
CS66F	1/2 X 3/8
CS66FF	1/2 X 1/2
CS66FJ	1/2 X 3/4
CS66H	5/8 X 1/2
CS66HJ	5/8 X 3/4
CS66J	3/4 X 1/2
CS66JJ	3/4 X 3/4

CS69

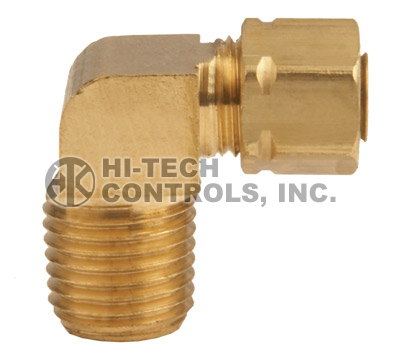

Brass Male Elbow Captive Sleeve

Category Number	Tube Outer Diameter x Male Pipe (inches)
CS69A	1/8 X 1/8
CS69B	3/16 X 1/8
CS69BB	3/16 X 1/4
CS69C	1/4 X 1/8
CS69CC	1/4 X 1/4
CS69CE	1/4 X 3/8
CS69CF	1/4 X 1/2
CS69D	5/16 X 1/8
CS69DD	5/16 X 1/4
CS69DE	5/16 X 3/8
CS69E	3/8 X 1/8
CS69EE	3/8 X 1/4
CS69EEE	3/8 X 3/8
CS69EF	3/8 X 1/2
CS69EJ	3/8 X 3/4
CS69F	1/2 X 3/8
CS69FC	1/2 X 1/4
CS69FF	1/2 X 1/2
CS69FJ	1/2 X 3/4
CS69H	5/8 X 1/2
CS69HE	5/8 X 3/8
CS69HJ	5/8 X 3/4
CS69J	3/4 X 1/2
CS69JJ	3/4 X 3/4

CS70

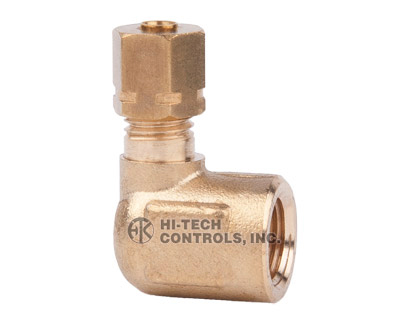

Brass Female Elbow Captive Sleeve

Category Number	Tube Outer Diameter x Male Pipe (inches)
CS70A	1/8 X 1/8
CS70B	3/16 X 1/8
CS70C	1/4 X 1/8
CS70CC	1/4 X 1/4
CS70CE	1/4 X 3/8
CS70E	3/8 X 1/8
CS70EE	3/8 X 1/4
CS70EEE	3/8 X 3/8
CS70EF	3/8 X 1/2
CS70F	1/2 X 3/8
CS70FF	1/2 X 1/2
CS70H	5/8 X 1/2
CS70HJ	5/8 X 3/4
CS70J	3/4 X 1/2
CS70JJ	3/4 X 3/4

CS65

Brass Elbow Union Captive Sleeve

CS64

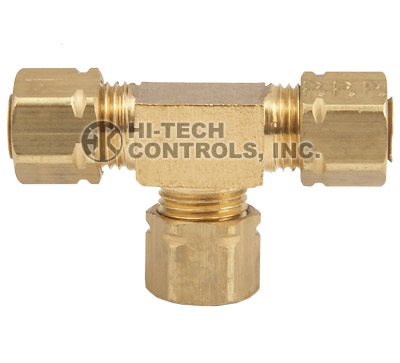

Brass Tee Captive Sleeve

CS72

Brass Tee With Male Pipe Captive Sleeve

Category Number	Tube Outer Diameter x Male Pipe (inches)
CS72A	1/8 X 1/8
CS72B	3/16 X 1/8
CS72C	1/4 X 1/8
CS72CC	1/4 X 1/4
CS72D	5/16 X 1/8
CS72DD	5/16 X 1/4
CS72E	3/8 X 1/8
CS72EE	3/8 X 1/4
CS72EEE	3/8 X 3/8
CS72EF	3/8 X 1/2
CS72F	1/2 X 3/8
CS72FF	1/2 X 1/2
CS72H	5/8 X 1/2
CS72J	3/4 X 1/2
CS72JJ	3/4 X 3/4

CS71

Brass Male Run Tee Captive Sleeve

Category Number	Tube Outer Diameter x Male Pipe (inches)
CS71A	1/8 X 1/8
CS71B	3/16 X 1/8
CS71C	1/4 X 1/8
CS71CC	1/4 X 1/4
CS71D	5/16 X 1/8
CS71DD	5/16 X 1/4
CS71E	3/8 X 1/8
CS71EE	3/8 X 1/4
CS71EEE	3/8 X 3/8
CS71F	1/2 X 3/8
CS71FF	1/2 X 1/2
CS71H	5/8 X 1/2
CS71J	3/4 X 1/2
CS71JJ	3/4 X 3/4

Assembly Information

Compression Tube Fittings
(Do NOT flare tubing)

To Install:

Slip Tubing through Nut and Sleeve
Insert Tubing into Fitting Up To Shoulder
Tighten Nut - This Action Spins the Sleeve A Component of the Tubing

SAE Flared Tube Fittings

To Install:

Slide Flare Nut on Tubing
Flare Tubing
Screw Flare Nut on Tubing This Seals the Flared End Of Tubing Between the Nut and the Fitting

AIR BRAKE

To Install:

Cut Tubing to Desired Length
Slide Nut & Sleeve on Tubing
Insert Tubing into Fitting and Make Sure It Bottoms On Shoulder
Wrench Tighten Nut.

AIR BRAKE REUSEABLE HOSE

To Install:

Slide Nut on to Hose.
Slide Sleeve on to Hose with Tapered Edge toward Fitting Body.
Bottom Hose into Fitting.
Tighten Nut Until It Contacts Body Hex.
If Reassembling, Do Not Reuse Sleeve.
