Brass Couplings Index

Brass Pipe Fittings (Extruded / Forged)

Brass Fittings Sealcon, Inc

(Click to enlarge)

Model Series

Description

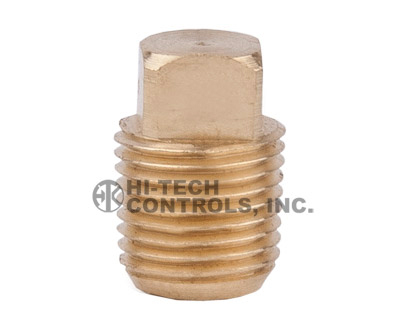

109

Brass Plug Square Head - (SOLID)

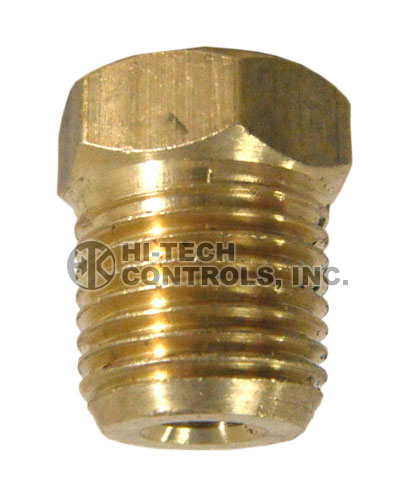

109X

Brass Plug Hex Head - (HOLLOW / SOLID STYLE)

Category Number	Male Pipe (Inches)
HOLLOW
109XA	1/8
109XC	1/4
109XE	3/8
109XF	1/2
109XJ	3/4
109XN	1
SOLID STYLE
109SXA	1/8
109SXC	1/4
109SXE	3/8
109SXF	1/2
109SXJ	3/4

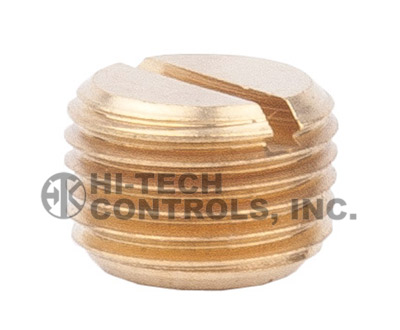

109W

Brass Plug Slotted Head

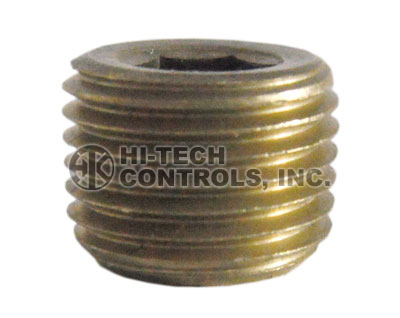

109U

Brass Plug Countersunk

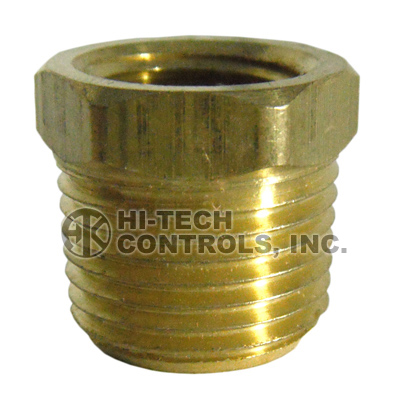

110

Brass Bushings Hex And Face

Category Number	Male Pipe (Inches)	x	Female Pipe (Inches)
HEX
110C	1/4	x	1/8
110E	3/8	x	1/8
110EE	3/8	x	1/4
110F	1/2	x	3/8
110FA	1/2	x	1/8
110FC	1/2	x	1/4
110J	3/4	x	1/2
110JA	3/4	x	1/8
110JC	3/4	x	1/4
110JE	3/4	x	3/8
110NC	1	x	1/4
110NE	1	x	3/8
110NF	1	x	1/2
110NJ	1	x	3/4
FACE
Additional Sizes Available on Request
FB110EE	3/8	x	1/4
FB110F	1/2	x	3/8
FB110J	3/4	x	1/2

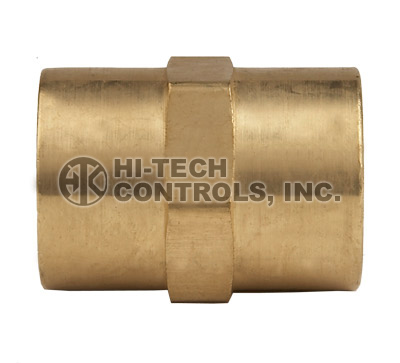

103

Brass Coupling L103

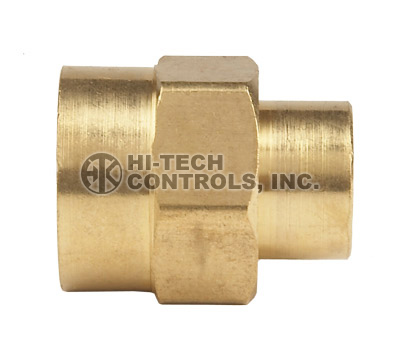

119

Brass Reducer Coupling

Category Number	Female Pipe (Inches)	x	Female Pipe (Inches)
119C	1/4	x	1/8
119E	3/8	x	1/8
119EE	3/8	x	1/4
119F	1/2	x	3/8
119FA	1/2	x	1/8
119FC	1/2	x	1/4
119J	3/4	x	1/2
119JC *	3/4	x	1/4
119JE *	3/4	x	3/8
119NJ *	1	x	3/4
* CAST BRASS

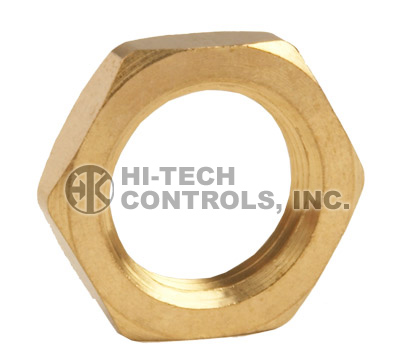

111

Brass Locknut Straight Pipe Thread (NPSL)

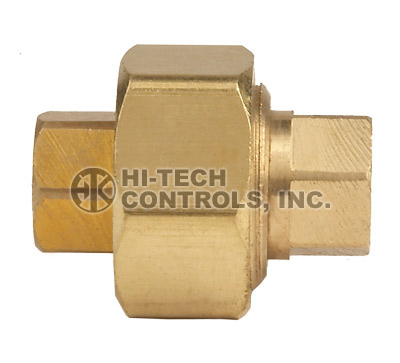

104

Brass Union (3pc)

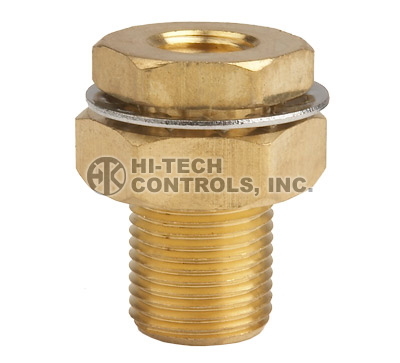

392

Brass Bulkhead Coupling Brass

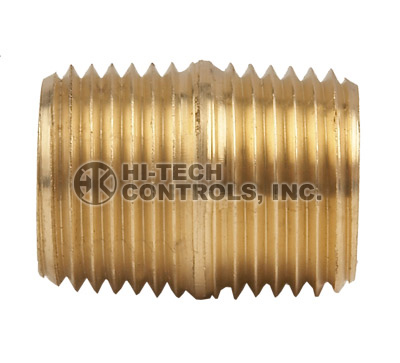

112

Brass Close Nipple (Yellow Brass)

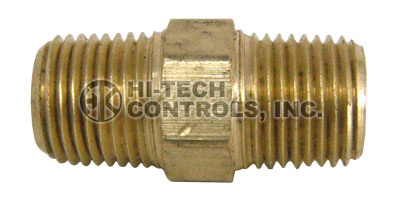

112X

Brass Hex Nipple

Category Number	Male Pipe (Inches)	Overall Length
112XA	1/8	.97
112XC	1/4	1.12
112XC-80	1/4	1.38
112XE	3/8	1.31
112XE-80	3/8	1.41
112XF	1/2	1.50
112XF-80	1/2	1.81
112XJ	3/4	1.56
112XN	1	2.315

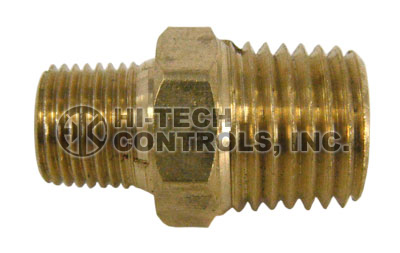

112R

Brass Hex Nipple Reducing Sizes

100S

Brass 90º Elbow - Extruded

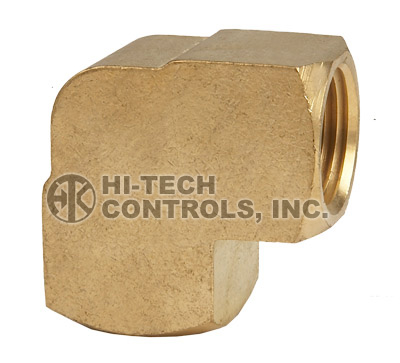

100

Brass 90º Elbow - Forged

Category Number	Female Pipe (Inches)
100A	1/8
100C	1/4
100E	3/8
100F	1/2
100F-39 *	1/2
100J-39 *	3/4
100J	3/4
100N	1
Reducing Sizes - Forged
100CA	1/4 x 1/8
100EC	3/8 x 1/4
100FE	1/2 x 3/8
* BRASS CASTING

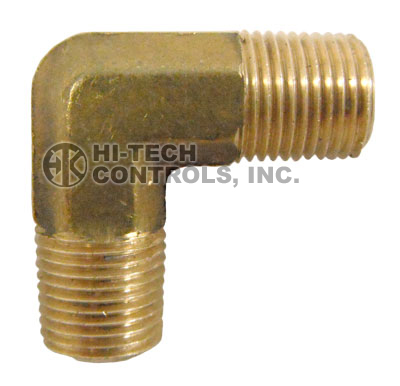

130S

Brass 90º Male Elbow - Extruded

130

Brass 90º Male Elbow - Forged

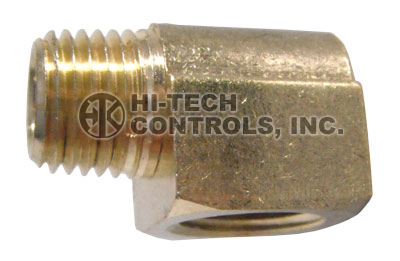

116S

Brass Street Elbow 90º

Category Number	Pipe Size	Dimensions
116SA-97	1/8	A-.55 B-.83
116SA-LONG	1/8	A-.69 B-.94
116SA-80	1/8	A-.65 B-.89
116SC-97	1/4	A-.73 B-1.12
116SC-LONG	1/4	A-.94 B-1.27
116SC-80	1/4	A-.73 B-1.12
116SE-30	3/8	A-.89 B-1.41
116SE-LONG	3/8	A-1.08 B-1.40
116SF	1/2	A-1.10 B-1.61
116SJ	3/4	A-1.61 B-2.00
REDUCING SIZES FEM MALE
116SRCA	1/4 x 1/8	A-.73 B - 1.05

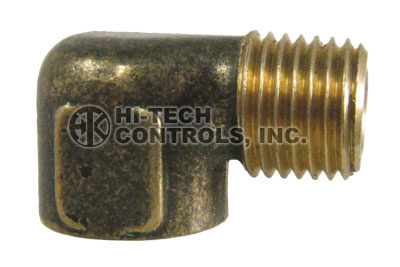

116

Brass 90º Street Elbow - Forged

Category Number	Pipe Size (inches)
116A	1/8	A .69 B 1.18
116C	1/4	A .70 B 1.24
116E	3/8	A .98 B 1.44
116F	1/2	A 1.34 B 1.96
116J	3/4	A 1.33 B 1.96
116J-39 (Brass Casting)	3/4	A 1.58 B 2.34
116N (Brass Casting)	1	A 1.93 B 2.75
REDUCING SIZES
Category Number	Female x Male Pipe
116RAC	1/8 x1/4	A - .71 B - 1.22
116RCE	1/4 x 3/8	A - 1.27 B- 1.39
116REC	3/8 x 1/4	A - .84 B- 1.35
116REF	3/8 x 1/2	A - 1.16 B - 1.73
116RFE	1/2 x 3/8	A - 1.34 B - 1.88

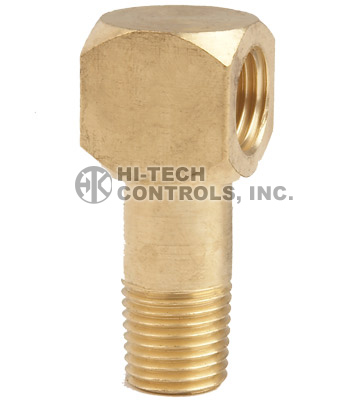

116L

Brass 90º Street Elbow Extra Long

Category Number	Female & Male Pipe (Inches)	(A)*
116LA1	1/8	1 & 3/16*
116LA2	1/8	1 & 7/16*
116LA3	1/8	1 & 11/16*
116LA4	1/8	2 & 7/8*
116LC1	1/4	1 & 3/16*
116LC2	1/4	1 & 7/16*
116LC3	1/4	1 & 11/16*
116LC4	1/4	1 & 7/8*
116LC5	1/4	2 & 1/4*
116LE1	3/8	1 & 3/4*
116LE2	3/8	2 & 1/4*
* "A" from centerline of female end to end of male

124S

Brass 45º Street Elbow

124

Brass 45º Street Elbow - Forged

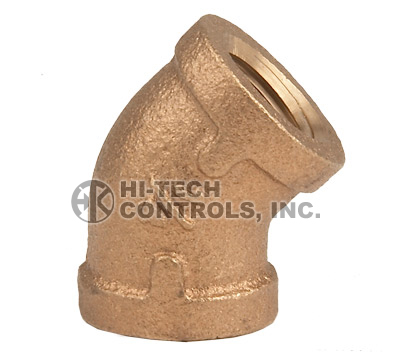

129

Brass 45º Female Elbow Brass Casting

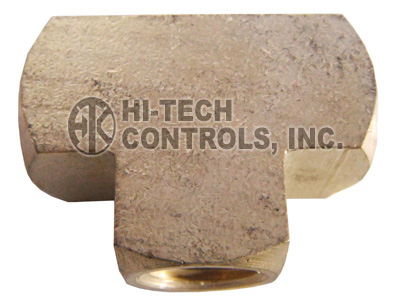

101S

Brass Tee Extruded

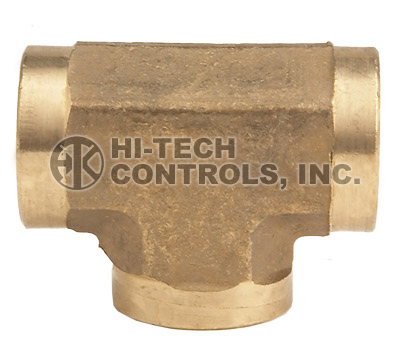

101

Brass Tee Forged Brass

Category Number	Female Pipe (Inches)
101A	1/8
101C	1/4
101E	3/8
101F-39*	1/2
101F	1/2
101J-39*	3/4
101J	3/4
101N*	1"
* BRASS CASTING
REDUCING SIZES
101AAC	1/8 x 1/8 x 1/4
101CCA	1/4 x 1/4 x 1/8
101CCE	1/4 x 1/4 x 3/8
101EEC	3/8 x 3/8 x 1/4
101FFC*	1/2 x 1/2 x 1/4
101FFE*	1/2 x 1/2 x 3/8
101JJF*	3/4 x 3/4 x 1/2
* BRASS CASTING

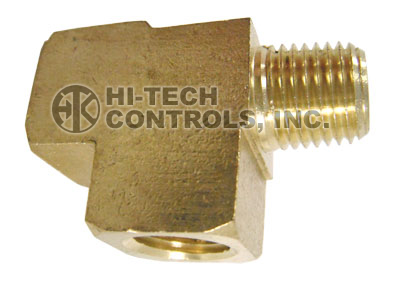

127

Brass Run Tee Female X Male X Female Pipe

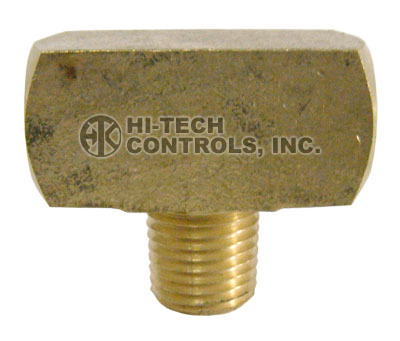

127S

Brass Branch Tee Female X Female X Male Pipe Extruded

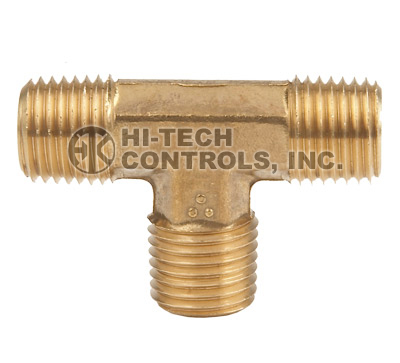

127W

Brass Tee Male Pipe Forged

127Z

Brass Tee Female X Male X Male Pipe Forged

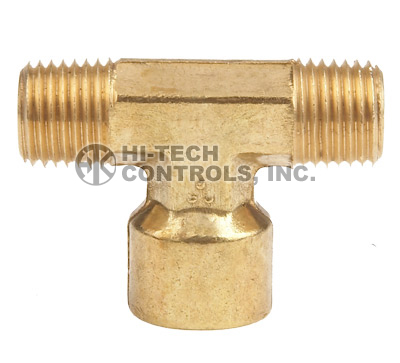

127V

Brass Tee Male X Male X Female Pipe

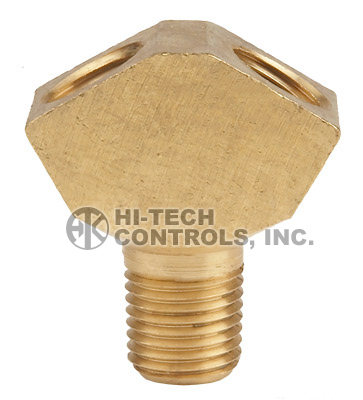

118MPT

Brass Y Forged

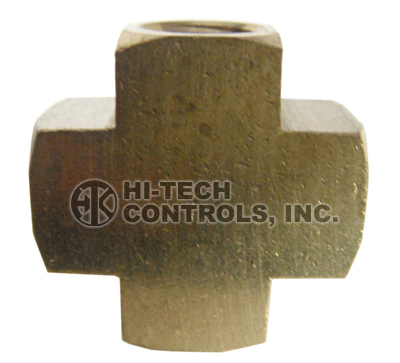

102

Brass Cross

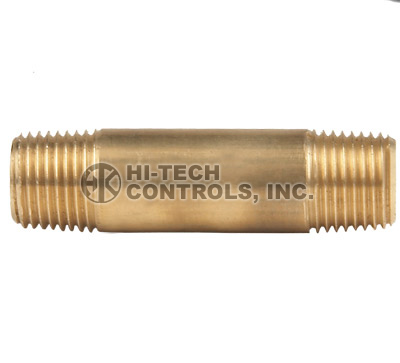

117A

Brass 1/8" Pipe Nipples (Long)

Category Number	Overall Length (Inches)
YELLOW BRASS
117A1&1/2	1.5"
117A2	2"
117A2&1/2	2.5"
117A3	3"
RED BRASS
117A3&1/2	3.5"
117A4	4"
117A4&1/2	4.5"
117A5	5"
117A5&1/2	5.5"
117A6	6"

117C

Brass 1/4" Pipe Nipples (Long)

117E

Brass 3/8" Pipe Nipples (Long)

117F

Brass 1/2" Pipe Nipples (Long)

117J

Brass 3/4" Pipe Nipples (Long)

117N

Brass 1" Pipe Nipples (Long)

112

Brass Close Nipple (Yellow Brass)

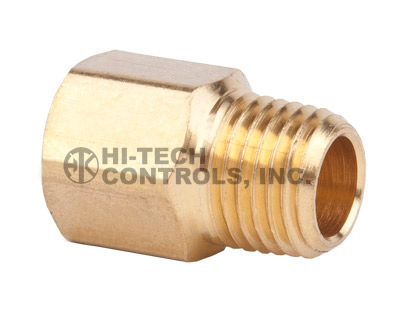

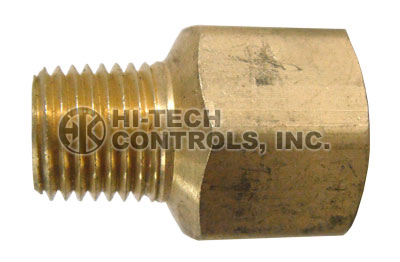

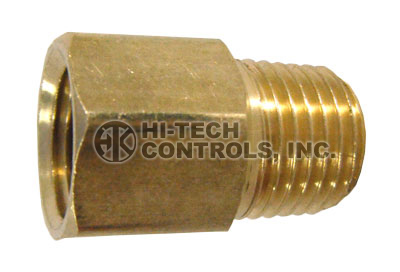

120

Brass Extension Adapter

120R

Brass Adapter Reducing

120S

Brass Adapter (1/8 FEMALE TAP)

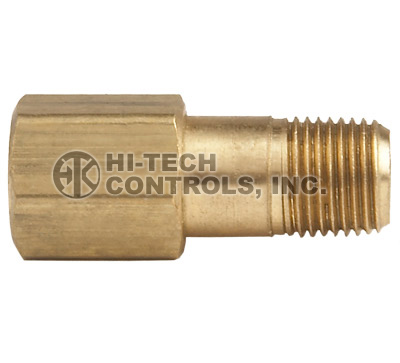

120L

Brass Adapter Extension - EXTRA LONG

Additional Sizes & Stainless Nipples Are Available On Request
