Brass Couplings Index

Brass Compression Fittings

Brass Pneumatic Components Sealcon, Inc

	Sure Seal "Captive Sleeve" Heavy Duty Brass Fittings
	Stastrate Compression Sleeve Fittings
	Compression Brass Fittings for "Polyethylene Tubing"
	Poly-Grasp Brass Fittings for Poly Tubing with Captive Sleeve
	Poly Push Brass Fittings
	Assembly Instructions


Model Series

Description

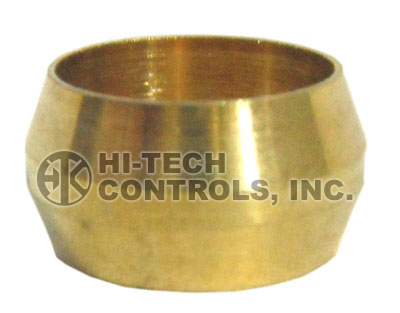

Brass Sleeve Standard

Category Number	Tube Outer Diameter (inches)
60A	1/8
60B	3/16
60C	1/4
60D	5/16
60E	3/8
L60F	1/2
60F*	1/2
60G	7/16
L60H	5/8
60H*	5/8
60J	3/4
60M	7/8
* HEAVY STYLE

860

Brass Sleeve Stastrate Brass for Metal or Plastic tubing - Must be used with #860 below

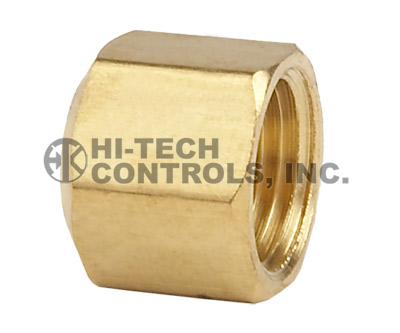

861

Brass Nut stastrate Brass for Metal or plastic Tubing use with #860 Shown above

461

Brass Insert - Tube Support

Category Number	Tubing Outer Diameter (inches)	Insert Outer Diameter (inches)
461A-80	1/8	.080
461A-0*	1/8	.073
461BS	3/16	.135
461B-80	3/16	.095
461B-0	3/16	.110
461C	1/4	.163
461D	5/16	.187
461DS*	5/16	.232
461E	3/8	.250
461F	1/2	.370
461H	5/8	.470
TH461H*	5/8	.434
461J	3/4	.559
*USE WITH A/B TUBING

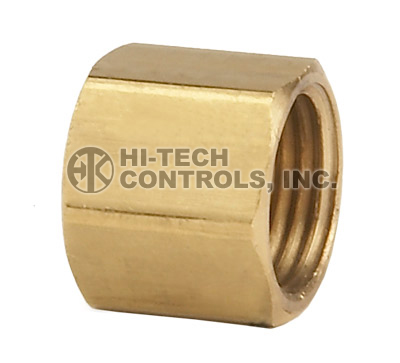

Brass Nut Standard

Category Number	Tube Outer Diameter (inches)
61A	1/8
61B	3/16
61C	1/4
61D	5/16
61E	3/8
L61F	1/2
61F*	1/2
61G	7/16
L61H	5/8
61H*	5/8
61J	3/4
61M	7/8
*HEAVY STYLE
NUT CHROME PLATED
CL61E	3/8
CL61F	1/2
CL61H	5/8

CS61

Brass Captive Brass Sleeve & Nut - Heavy Duty

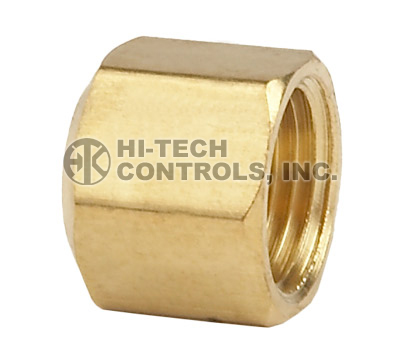

61-CAP

Brass Compression Cap

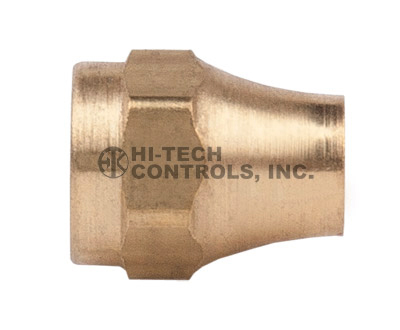

161

Brass Nut Long

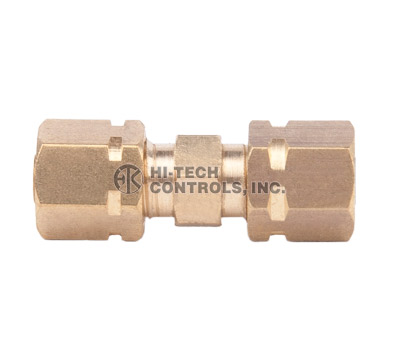

Brass Union

Category Number	Tube Outer Diameter (inches)
62A	1/8
62B	3/16
62C	1/4
62D	5/16
62E	3/8
L62F	1/2
62F*	1/2
62G	7/16
L62H	5/8
62H*	5/8
62J	3/4
62M	7/8
*HEAVY STYLE
REDUCING
Category Number	Tube Outer Diameter x Tube Outer Diameter (inches)
62RCA	1/4 X 1/8
62RCB	1/4 X 3/16
62RDC	5/16 X 1/4
62REC	3/8 X 1/4
62RED	3/8 X 5/16
L62RFE	1/2 X 3/8
L62RHE	5/8 X 3/8
L62RHF	5/8 X 1/2

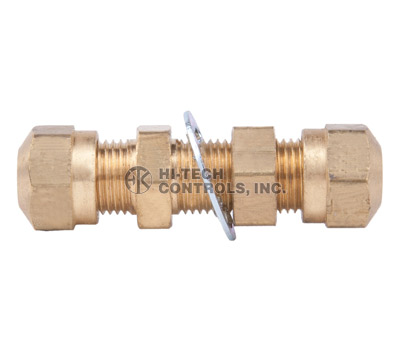

62L

Brass Bulkhead Union Tube X Tube

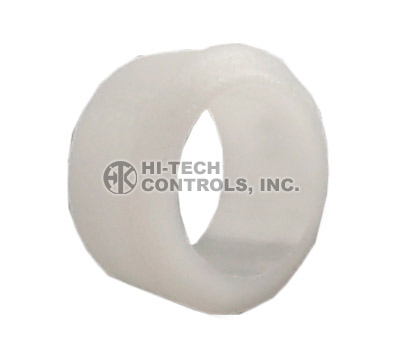

460

Sleeve
-Plastic for Polyethylene tubing

68-75

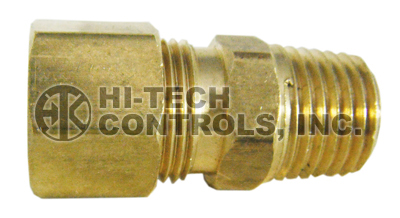

Brass Male Connector

Category Number	Tube Outer Diameter x Male Pipe(inches)
68A	1/8 X 1/8
68B	3/16 X 1/8
68BB	3/16 X 1/4
68C	1/4 X 1/8
68CC	1/4 X 1/4
68CE	1/4 X 3/8
68CF	1/4 X 1/2
68D	5/16 X 1/8
68DD	5/16 X 1/4
68DE	5/16 X 3/8
68DF	5/16 X 1/2
68E	3/8 X 1/8
68EE	3/8 X 1/4
68EEE	3/8 X 3/8
68EF*	3/8 X 1/2
75EF**	3/8 X 1/2
68EJ	3/8 X 3/4
L68F	1/2 X 3/8
68F*	1/2 X 3/8
68FC	1/2 X 1/4
L68FF	1/2 X 1/2
68FF*	1/2 X 1/2
75FF**	1/2 X 1/2
L68FJ	1/2 X 3/4
68FJ*	1/2 X 3/4
68G	7/16 X 1/4
68GE	7/16 X 3/8
L68H	5/8 X 1/2
68H*	5/8 X 1/2
75H**	5/8 X 1/2
L68HE	5/8 X 3/8
75HJ	5/8 X 3/4
68HJ*	5/8 X 3/4
68J	3/4 X 1/2
68JJ	3/4 X 3/4
68MF	7/8 X 1/2
68MJ	7/8 X 3/4
68MN	7/8 X 1"
CS68NN	1" X 1"
* HEAVY STYLE
SLIP-THRU TANK STYLE**

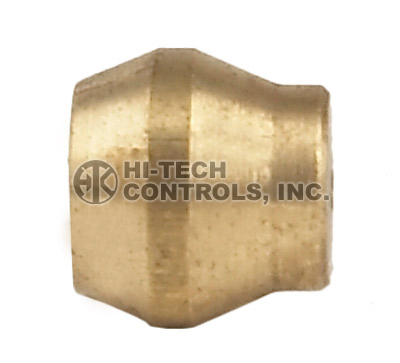

60PL

Brass Plug Compression - USE IN PLACE OF SLEEVE

66-77

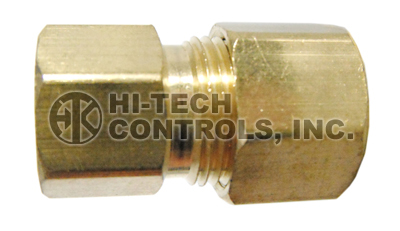

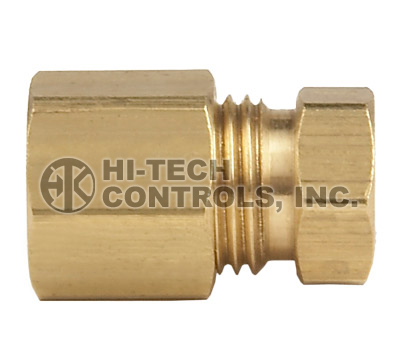

Brass Female Connector

Category Number	Tube Outer Diameter x Female Pipe(inches)
66A	1/8 X 1/8
66B	3/16 X 1/8
66BB	3/16 X 1/4
66C	1/4 X 1/8
66CC	1/4 X 1/4
66CE	1/4 X 3/8
66CF	1/4 X 1/2
66D	5/16 X 1/8
66DD	5/16 X 1/4
66DE	5/16 X 3/8
66E	3/8 X 1/8
66EE	3/8 X 1/4
77EEE**	3/8 X 3/8
77EF**	3/8 X 1/2
66EJ	3/8 X 3/4
77F**	1/2 X 3/8
66FC	1/2 X 1/4
77FF**	1/2 X 1/2
66FJ	1/2 X 3/4
77H**	5/8 X 1/2
66HE	5/8 X 3/8
L66HJ	5/8 X 3/4
66J	3/4 X 1/2
66JJ	3/4 X 3/4
66MF	7/8 X 1/2
66MJ	7/8 X 3/4
* HEAVY STYLE
SLIP-THRU TANK STYLE**

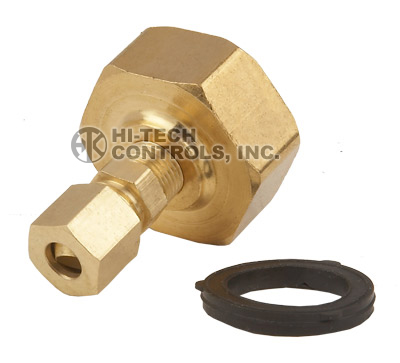

719-68

Brass 1/4 Male Compression X 3/4 Fem Garden Hose w/Washer - REFRIGERATOR HOOK-UP

77S

Brass Solder Connector Tube X Solder End Tank Type - FLEX SUPPLY "SLIP-THRU"

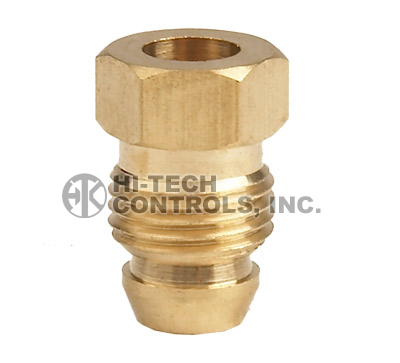

81L

Brass Pilot Line Control Nut - FOR THERMOSTATS BREAKAWAY SLEEVE

Brass Plug - BLOCKS END OF TUBING

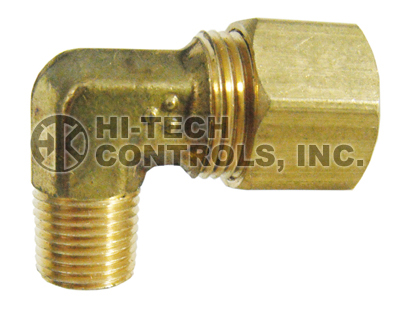

Brass Male Elbow Forged

Category Number	Tube Outer Diameter x Male Pipe(inches)
69A*	1/8 X 1/8
69B*	3/16 X 1/8
69BB	3/16 X 1/4
69C*	1/4 X 1/8
69CC*	1/4 X 1/4
69CE	1/4 X 3/8
69CF	1/4 X 1/2
69D*	5/16 X 1/8
69DD*	5/16 X 1/4
69DE	5/16 X 3/8
69DF	5/16 X 1/2
69E	3/8 X 1/8
69EE*	3/8 X 1/4
69EEE	3/8 X 3/8
69EF	3/8 X 1/2
69EJ	3/8 X 3/4
L69F	1/2 X 3/8
69F**	1/2 X 3/8
69FC	1/2 X 1/4
L69FF	1/2 X 1/2
69FF**	1/2 X 1/2
69FJ	1/2 X 3/4
69G	7/16 X 1/4
69GE	7/16 X 3/8
L69H	5/8 X 1/2
69H**	5/8 X 1/2
69HE	5/8 X 3/8
69HJ	5/8 X 3/4
69J	3/4 X 1/2
69JJ	3/4 X 3/4
69MF	7/8 X 1/2
69MJ	7/8 X 3/4
* BAR STOCK
HEAVY STYLE**

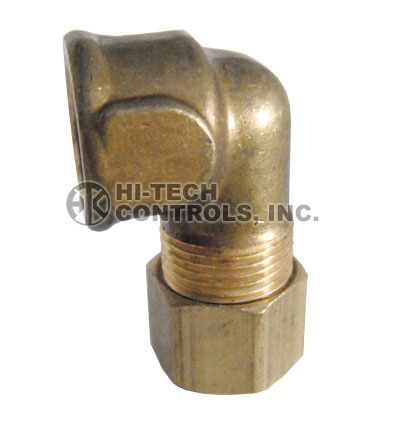

Brass Female Elbow

Category Number	Tube Outer Diameter x Female Pipe(inches)
70A	1/8 X 1/8
70B	3/16 X 1/8
70C	1/4 X 1/8
70CC	1/4 X 1/4
70CE	1/4 X 3/8
70CF	1/4 X 1/2
70D	5/16 X 1/8
70DD	5/16 X 1/4
70E	3/8 X 1/8
70EE	3/8 X 1/4
70EEE	3/8 X 3/8
70EF	3/8 X 1/2
70EJ	3/8 X 3/4
70F	1/2 X 3/8
70FC	1/2 X 1/4
70FF	1/2 X 1/2
70FJ	1/2 X 3/4
70H	5/8 X 1/2
70HE	5/8 X 3/8
70HJ	5/8 X 3/4
70J	3/4 X 1/2
70JJ	3/4 X 3/4

Brass 45° Male Elbow

Category Number	Tube Outer Diameter x Male Pipe(inches)
78B	3/16 X 1/8
78C	1/4 X 1/8
78CC	1/4 X 1/4
78D	5/16 X 1/8
78DD	5/16 X 1/4
78E	3/8 X 1/8
78EE	3/8 X 1/4
78EEE	3/8 X 3/8
78F	1/2 X 3/8
78FF	1/2 X 1/2
78H	5/8 X 1/2

686

Brass Conversion with Nylon Washer

Assembly Information

Compression Tube Fittings
(Do NOT flare tubing)

To Install:

Slip Tubing through Nut and Sleeve
Insert Tubing into Fitting Up To Shoulder
Tighten Nut - This Action Spins the Sleeve A Component of the Tubing

SAE Flared Tube Fittings

To Install:

Slide Flare Nut on Tubing
Flare Tubing
Screw Flare Nut on Tubing This Seals the Flared End Of Tubing Between the Nut and the Fitting

AIR BRAKE

To Install:

Cut Tubing to Desired Length
Slide Nut & Sleeve on Tubing
Insert Tubing into Fitting and Make Sure It Bottoms On Shoulder
Wrench Tighten Nut.

AIR BRAKE REUSEABLE HOSE

To Install:

Slide Nut on to Hose.
Slide Sleeve on to Hose with Tapered Edge toward Fitting Body.
Bottom Hose into Fitting.
Tighten Nut Until It Contacts Body Hex.
If Reassembling, Do Not Reuse Sleeve.
