Brass Couplings Index

Brass Inverted Flare Fittings

Brass Couplings Sealcon, Inc

Nylon Fittings Working Pressure at 73�F 150 PSI Max Temp: 150�F

Model Series

Description

105

Brass Inverted Flare Nut - Brass

105S

Brass Inverted Flare Nut - Steel

1428

Brass Adapter

1429

Brass Transmission Oil Coolant Line

105L

Brass Long Steel Inverted Flare Nut

409

Brass Plug Steel Inverted Flare - Steel

250

Brass Female Connector

200 - 202

Brass Connector

Category Number	Inv. Tube Outer Diameter x Male Pipe
202A	1/8 X 1/8
200B	3/16 X 1/8
200C	1/4 X 1/8
200CC	1/4 X 1/4
200D	5/16 X 1/8
200DD	5/16 X 1/4
202DE	5/16 X 3/8
200E	3/8 X 1/8
200EE	3/8 X 1/4
200EEE	3/8 X 3/8
202F	1/2 X 3/8
202FC	1/2 X 1/4
202FF	1/2 X 1/2
202H	5/8 X 1/2
202JJ	3/4 X 3/4

1514

Brass Plymouth Fuel Line Adapter - Male Inverted X Male Pipe

353 - 302

Brass Union

354

Brass Union For Imported Vehicles Fem. Inv. Flare (Both Ends)

1441/2/3

Brass Metric Conversion Adapter

400 - 402

Brass Elbow 90º INV.

Category Number	Inv. Flare Tube Outer Diameter x Male Pipe
402A	1/8 X 1/8
402B	3/16 X 1/8
400C	1/4 X 1/8
402CC	1/4 X 1/4
400D	5/16 X 1/8
402DD	5/16 X 1/4
402E	3/8 X 1/8
402EE	3/8 X 1/4
402EEE	3/8 X 3/8
402F	1/2 X 3/8
402FC	1/2 X 1/4
402FF	1/2 X 1/2
402H	5/8 X 1/2
402MJ	7/8 X 3/4
402NN	1" X 1"

352

Brass Male Elbow 45º Inv.

450W

Brass Elbow - Inv. Flare X Female Pipe

240

Brass Conversion Inverted Flare Adapters

Category Number	Female Inv. Flare Tube x Male Inv. Flare Tube
240BC	3/16 X 1/4
240BD	3/16 X 5/16
240B	3/16 FEMALE INV. X 9/16-18 MALE INV.
240CB	1/4 X 3/16
240CD	1/4 X 5/16
240C	1/4 FEMALE INV. X 9/16-18 MALE INV.
240DC	5/16 X 1/4
240DDD	5/16 X 5/16
240DE	5/16 X 3/8
240ED	3/8 X 5/16
The following Seal on Hex Face Fem. Inv. X Male Inv.
240BD-HEX	3/16 X 5/16
240CD-HEX	1/4 X 5/16
240CG-20-HEX	1/4 X 7/16-20
240DD-HEX	5/16 X 5/16

Brass Ford Transmission Adapter - With O Ring & Lock Nut

702

Brass Union Tee

600

Brass Tee Inv. X Mpt

1441 1442 1443 7935 7936 7937

Brass Metric Conversion Adapter

7898 7900 7901

Brass Towed Trailer Brake Tees For Hydraulic Brakes

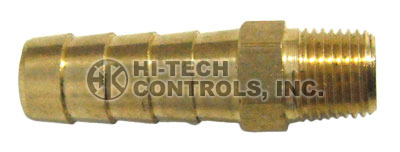

220

Brass Hose Barb X Male Pipe

Category Number	Hose Inner Diameter x Male Pipe (Inches)
220A	1/8 X 1/8
220A-1/16	1/8 X 1/16
220AC	1/8 X 1/4
220B	3/16 X 1/8
220BB	3/16 X 1/4
220C	1/4 X 1/8
220C-1/16	1/4 X 1/16
220CC	1/4 X 1/4
220CE	1/4 X 3/8
220CF	1/4 X 1/2
220D	5/16 X 1/8
220DD	5/16 X 1/4
220DE	5/16 X 3/8
220E	3/8 X 1/8
220EE	3/8 X 1/4
220EEE	3/8 X 3/8
220EF	3/8 X 1/2
220EJ	3/8 X 3/4
220F	1/2 X 3/8
220FC	1/2 X 1/4
220FF	1/2 X 1/2
220FJ	1/2 X 3/4
220H	5/8 X 1/2
220HC	5/8 X 1/4
220HE	5/8 X 3/8
220HJ	5/8 X 3/4
220J	3/4 X 1/2
220JE	3/4 X 3/8
220JJ	3/4 X 3/4
220NF	1" X 1/2
220NJ	1" X 3/4
220NN	1" X 1"

220SW

Brass Swivel Hose Barb X Male Pipe - SWIVEL

221

Brass Hose Barb X Female Pipe

Category Number	Hose Inner Diameter x Female Pipe (Inches)
221A	1/8 X 1/8
221AC	1/8 X 1/4
221B	3/16 X 1/8
221BB	3/16 X 1/4
221C	1/4 X 1/8
221CC	1/4 X 1/4
221CE	1/4 X 3/8
221D	5/16 X 1/8
221DD	5/16 X 1/4
221DE	5/16 X 3/8
221E	3/8 X 1/8
221EE	3/8 X 1/4
221EEE	3/8 X 3/8
221EF	3/8 X 1/2
221F	1/2 X 3/8
221FC	1/2 X 1/4
221FF	1/2 X 1/2
221JJ	3/4 X 3/4
221NJ	1" X 3/4
221NN	1" X 1"

809

Brass Hose Barb X Male Pipe Thread - RIGID PIPE

Category Number	Hose Inner Diameter x Female Pipe (Inches)
809B	3/16 X 1/8
809C	1/4 X 1/8
809CC	1/4 X 1/4
809D	5/16 X 1/8
809DD	5/16 X 1/4
809E	3/8 X 1/8
809EE	3/8 X 1/4
809EEE	3/8 X 3/8
809FC	1/2 X 1/4
809F	1/2 X 3/8
809HE	5/8 X 3/8
809H	5/8 X 1/2
809J	3/4 X 1/2
809JJ	3/4 X 3/4
809NJ	1" X 3/4
809JJ	3/4 X 3/4
809NJ	1" X 3/4

222

Brass Splicer
Stainless Steel Available

NY222

Splicer - Nylon

227

Brass Hose Barb With Flat Seat & Washer X Straight Female Pipe Swivel

225

Hose Barb Ball Seat X Straight Female Pipe Swivel

228

Straight Male Pipe With Ball Seat X Taper Male Pipe

805NS

Hose Barb X Inverted Flare Rigid

TUBE SIZE	1/8	3/16	1/4	5/16	3/8	7/16	1/2	5/8	3/4	7/8
THREAD SIZE	5/16-28	3/8-24	7/16-24	1/2-20	17/32-24	11/16-18	3/4-18	7/8-18	1&1/16 -16	1&3/16-16
