Model Series |
Description |
| TUBE SIZE |
3/16 |
1/4 |
3/8 |
1/2 |
5/8 |
3/4 |
| THREAD SIZE |
5/16-24 |
7/16-24 |
17/32-24 |
11/16-20 |
13/16-18 |
1-18 |
|
| |
TH260 |
Sleeve |
 |

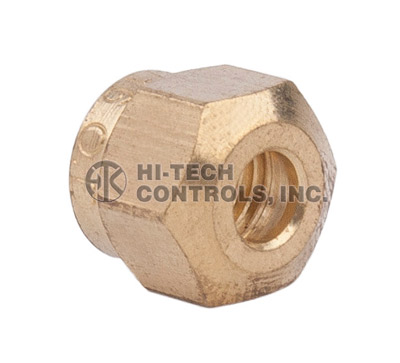

TH261 |
Brass Nut |
 |
TH262 |
Brass Union |
 |

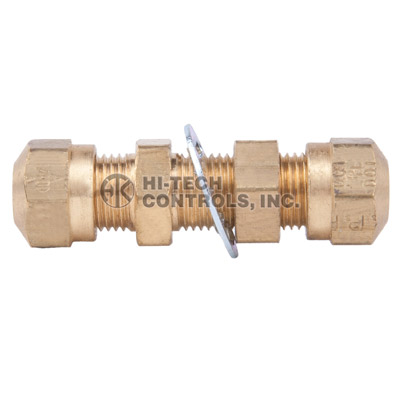

TH262L |
Brass Bulkhead Union |
 |

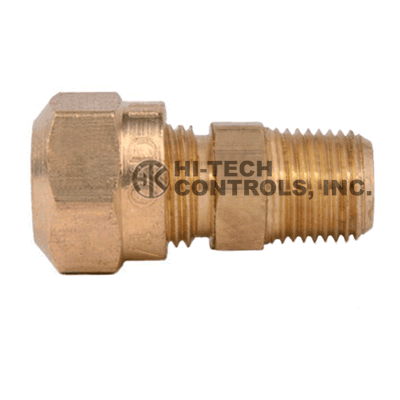

TH268 |
Brass Male Connector |
 |

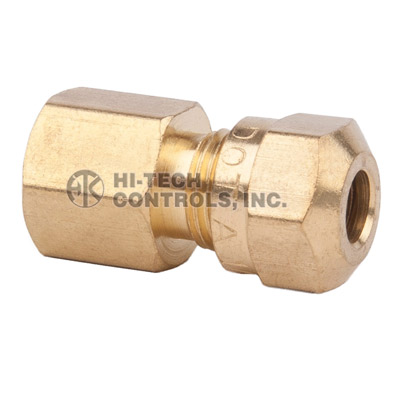

TH266 |
Brass Female Connector |
 |

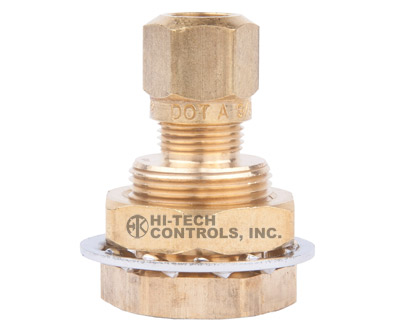

TH396 |
Brass Bulkhead Air Brake Coupling |
 |

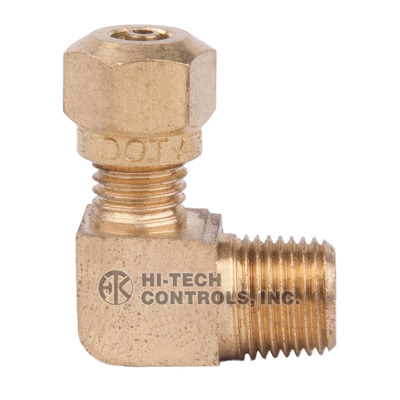

TH269 |
Brass Male Elbow |
 |
TH278 |
Brass 45º Elbow |
 |
|
Nylon Air Brake Tubing |
|
TH265 |
Brass Elbow |
 |

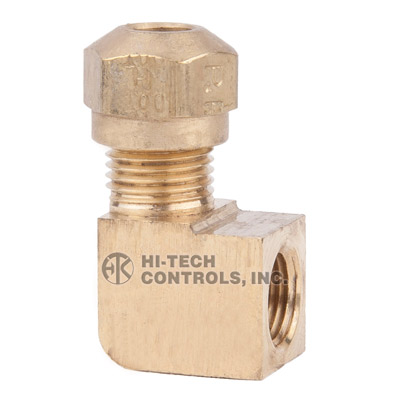

TH270 |
Brass Female Elbow |
|
TH100 |

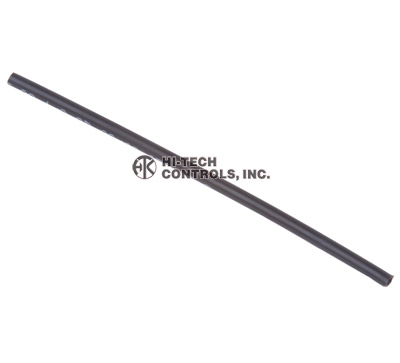

D.O.T. Nylon Air Brake Tubing (Saej844) 150 Psi 100' Black Coils Order By Coil Not Length |
 |

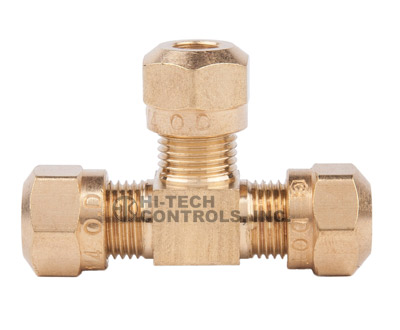

TH264 |
Brass Tee |
 |

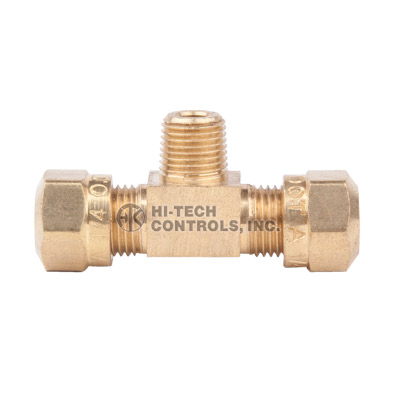

TH272 |
Brass Tee Male Branch |
 |

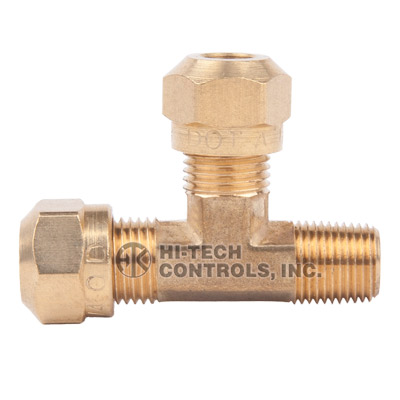

TH271 |
Brass Tee Male Pipe Run |
| |
TH461 |
Stainless Steel Inserts For D.O.T. Truck Air Brake Nylon Tubing (Saej844) |
 |
461 |
Brass A/B Dot Nylon Tubing Assortments |
| |
BFS-56 Complete With Cabinet
BFS-56LC Fittings Only |
Brass A/B DOT Nylon Tubing Assortments
#BFS-56 56 Items, 350 Pieces. Cabinet Size 22H x 17W x 11D |
Copper Tubing Air Brake Compression Brass Fittings |
 |

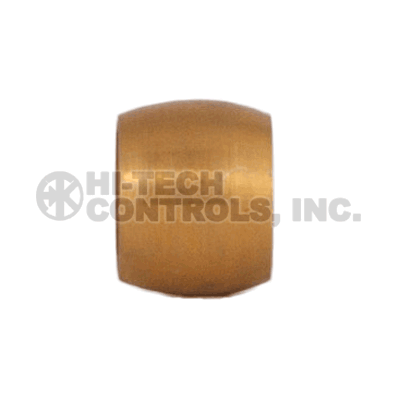

260 |
Brass Air Brake Sleeve |
 |

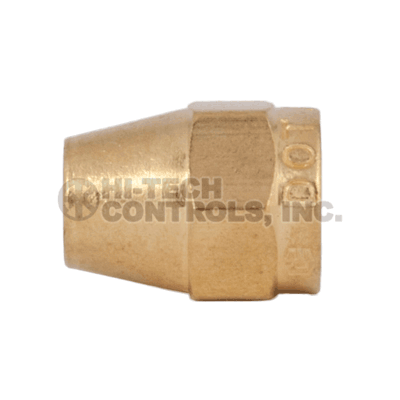

261 |
Brass Air Brake Nut |
 |
262L |
Brass Air Brake Bulkhead Union |
 |
262 |
Brass Air Brake Union |
 |
266 |
Brass Air Brake Female Connector |
 |

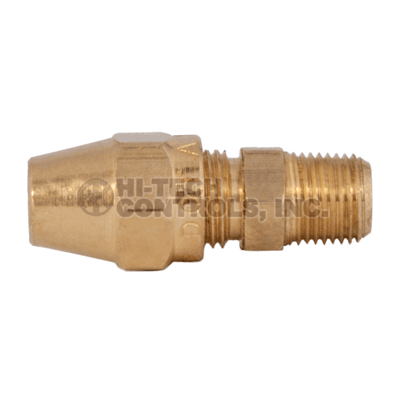

268 |
Brass Air Brake Male Connector |
 |

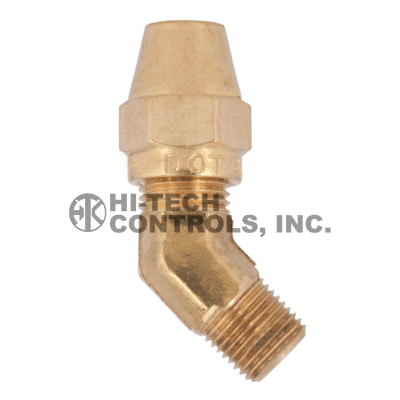

278 |
Brass Air Brake 45º Male Elbow |
 |

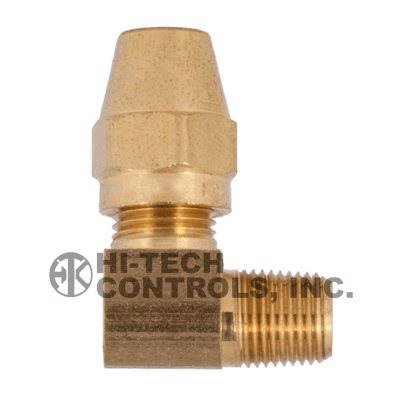

269 |
Brass Air Brake Male Elbow |
| |
TU6 |
Brass Airbrake Copper Tubing |
 |

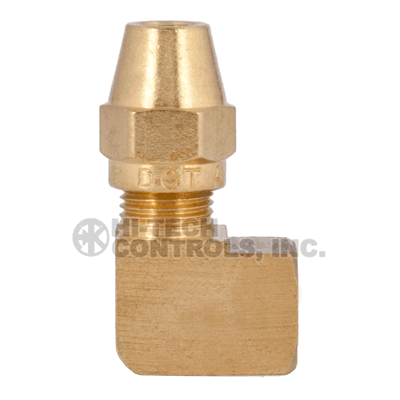

270 |
Brass Air Brake Female Elbow |
| |
265 |
Brass Air Brake Elbow |
 |

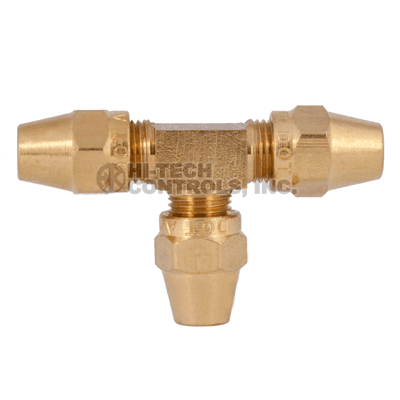

264 |
Brass Air Brake Tee |
 |

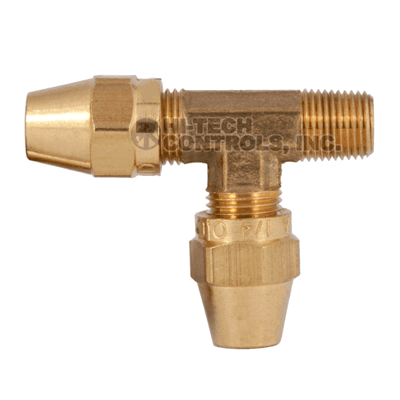

271 |
Brass Air Brake Male Run Tee - Tube To Male Pipe To Tube |
 |
272 |
Brass Air Brake Branch Tee - Tube To Tube To Male Pipe |
 |

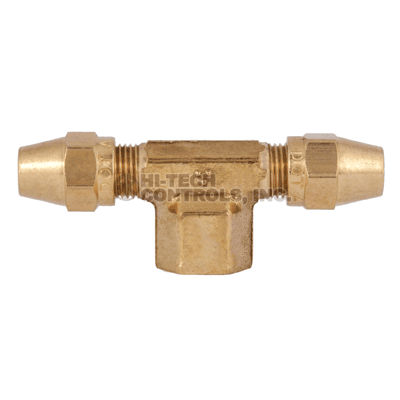

272S |
Brass Air Brake Female Branch Tee |
 |

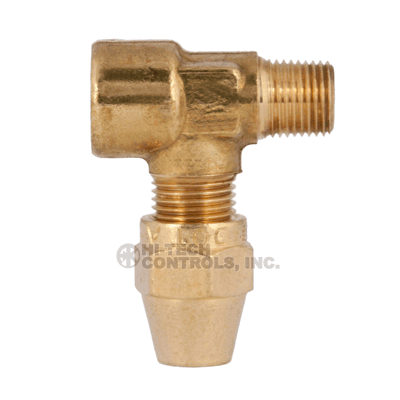

276 |
Brass Air Brake Tee - Female Pipe To Male Pipe To Tube |
Air Brake Truck Valves |
 |
18K |
Brass Air Brake Drain Cock Tee Handle |
 |
229K |
Brass Truck Shut-Off Valve - Brass Body Wheel Handle |
 |
21 |
Brass Truck Valve Oil Tank Valve - Female Pipe Thread X Male Pipe Thread Brass |
 |
18 |
Brass Oil Tank Valve |
Transmission "Suregrip" Brass Fittings 1/8 & 5/32 Sizes
(For Use With Nylon Air Brake Tubing, SAEJ844) |
 |

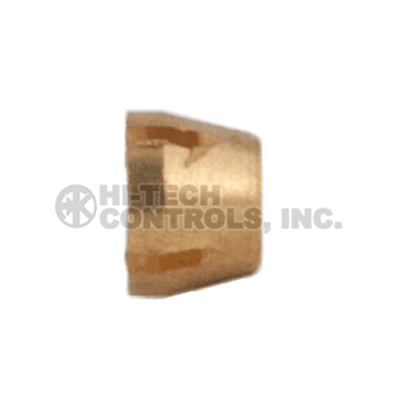

660 |
Brass Suregrip Sleeve |
 |

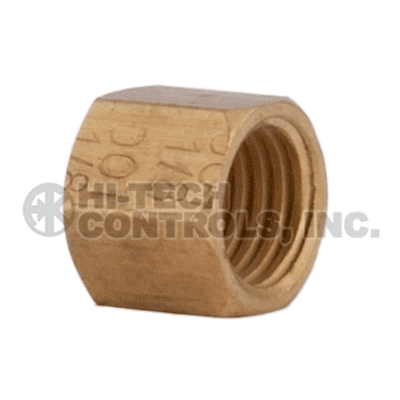

661 |
Brass Suregrip Nut |
 |

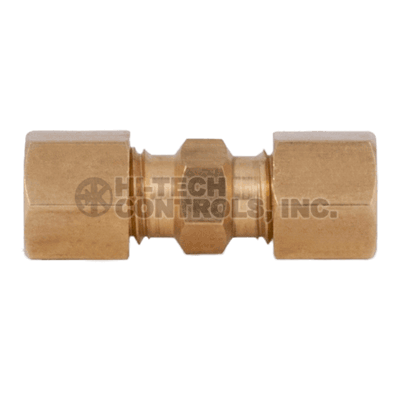

662 |
Brass Suregrip Union |
 |

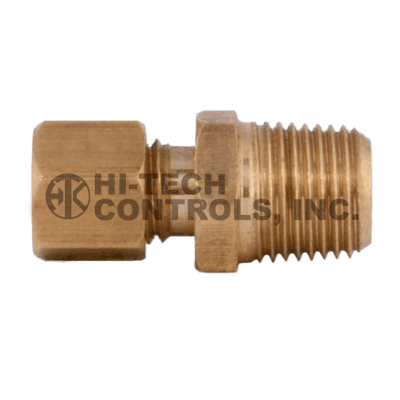

668 |
Brass Suregrip Male Connector |
 |

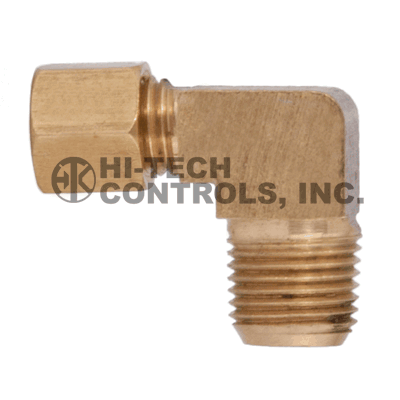

669 |
Brass Suregrip Male Elbow |
D.O.T.Truck Air Brake Reusable Hose Brass Fittings |
 |
360 |
Brass Air Brake Hose Sleeve |
 |
361 |
Brass Air Brake Hose Nut |
 |
371 |
Brass Air Brake Hose Nut With Spring Guard Attached |
 |
371THR |
Brass Air Brake Hose Nut -For Spring Guard Attachment |
 |
371SPR |
Brass Air Brake Hose - Spring Guard Only |
 |
378 |
Brass Air Brake Hose Connector With Spring Guard |
 |
368 |
Brass Air Brake Hose Connector |
 |
368-BO |
Brass Air Hose Connector Body Only |
 |
362-BO |
Brass Air Brake Hose Union Body Only |
 |
362 |
Brass Air Brake Hose Union |
| |
ABH50 |
(SAEJ1402) (Type B) Air Brake Hose -For Reuseable Fittings On This Page 50', & 250' Coils |
Air Brake Truck Swivel Type Hose Connectors |
| |
396 |
Brass Air Brake Connector Hose To Special Female Thread |
| |
398 |
Brass Air Brake Connector With Male Pipe Adapter |
| |
398398-BO |
Brass Air Brake Adapter Body |
| |
ABH |
Brass Air Brake Hose -For Use With Air Brake Reuseable Fittings |
| |
390 |
Brass Bulkhead Coupling Steel |
|
TH396 |
Brass Bulkhead Air Brake Coupling Brass - With Nylon Truck Airbrake Conn. |
| |
391 |
Brass Bulkhead Coupling |
 |
392 |
Brass Bulkhead Coupling Brass |
Truck Accessory "DOT" Push In Brass Fittings |
| To Install: Cut Tubing Squarely. Insert Tubing Into Fitting Until Tube Bottoms Firmly. To Remove: Hold Back Release Ring And Withdraw The Tubing. |
| |
PP62-DOT |
Brass Union
Show Details
| Category Number |
Tube Outer Diameter |
| PP62AA-DOT |
5/32 |
| PP62C-DOT |
1/4 |
| PP62E-DOT |
3/8 |
| PP62F-DOT |
1/2 |
| PP62H-DOT |
5/8 |
| PP62J-DOT |
3/4 |
| BULKHEAD UNION |
| PP62LC-DOT |
1/4 |
| PP62LE-DOT |
3/8 |
| PP62LF-DOT |
1/2 |
| PP62LH-DOT |
5/8 |
|
| |
PP68-DOT |
Brass Male Connector
Show Details
| Category Number |
Tube Outer Diameter x Male Pipe |
| PP68AAS-DOT |
5/32X1/16 |
| PP68AA-DOT |
5/32 X 1/8 |
| PP68C-DOT |
1/4 X 1/8 |
| PP68CC-DOT |
1/4 X 1/4 |
| PP68CE-DOT |
1/4 X 3/8 |
| PP68E-DOT |
3/8 X 1/8 |
| PP68EE-DOT |
3/8 X 1/4 |
| PP68EEE-DOT |
3/8 X 3/8 |
| PP68EF-DOT |
3/8 X 1/2 |
| PP68F-DOT |
1/2 X 3/8 |
| PP68FC-DOT |
1/2 X 1/4 |
| PP68FF-DOT |
1/2 X 1/2 |
| PP68H-DOT |
5/8X1/2 |
| PP68J-DOT |
3/4X1/2 |
| PP68JJ-DOT |
3/4X3/4 |
|
| |
PP69-DOT |
Brass Male Elbow
Show Details
| Category Number |
Tube Outer Diameter x Male Pipe |
| PP69AA-DOT |
5/32 X 1/8 |
| PP69C-DOT |
1/4 X 1/8 |
| PP69CC-DOT |
1/4 X 1/4 |
| PP69CE-DOT |
1/4 X 3/8 |
| PP69E-DOT |
3/8 X 1/8 |
| PP69EE-DOT |
3/8 X 1/4 |
| PP69EEE-DOT |
3/8 X 3/8 |
| PP69EF-DOT |
3/8 X 1/2 |
| PP69FC-DOT |
1/2 X 1/4 |
| PP69F-DOT |
1/2 X 3/8 |
| PP69FF-DOT |
1/2 X 1/2 |
| PP69HE-DOT |
5/8 X 3/8 |
| PP69H-DOT |
5/8 X 1/2 |
| PP69J-DOT |
3/4 X 1/2 |
| PP69JJ-DOT |
3/4 X 3/4 |
|
| |
PP69S-DOT |
Brass Swivel Male 90º Elbow
Show Details
| Category Number |
Tube Outer Diameter x Male Pipe |
| PP69SC-DOT |
1/4 X 1/8 |
| PP69SCC-DOT |
1/4 X 1/4 |
| PP69SCE-DOT |
1/4 X 3/8 |
| PP69SE-DOT |
3/8 X 1/8 |
| PP69SEE-DOT |
3/8 X 1/4 |
| PP69SEEE-DOT |
3/8 X 3/8 |
| PP69SEF-DOT |
3/8 X 1/2 |
| PP69SFC-DOT |
1/2 X 1/4 |
| PP69SF-DOT |
1/2 X 3/8 |
| PP69SFF-DOT |
1/2 X 1/2 |
| PP69SHE-DOT |
5/8 X 3/8 |
| PP69SH-DOT |
5/8 X 1/2 |
| PP69SJ-DOT |
3/4 X 1/2 |
| PP69SJJ-DOT |
3/4 X 3/4 |
|
| |
PP66-DOT |
Brass Female Connector
Show Details
| Category Number |
Tube Outer Diameter x Female Pipe |
| PP66C-DOT |
1/4 X 1/8 |
| PP66CC-DOT |
1/4 X 1/4 |
|
| |
PP70-DOT |
Brass Female 90º Elbow
Show Details
| Category Number |
Tube Outer Diameter x Male Pipe |
| PP70C-DOT |
1/4 X 1/8 |
| PP70CC-DOT |
1/4 X 1/4 |
| PP70E-DOT |
3/8 X 1/8 |
| PP70EEE-DOT |
3/8 X 3/8 |
| PP70FF-DOT |
1/2 X 1/2 |
|
| |
PP65-DOT |
Brass 90º Elbow
Show Details
| Category Number |
Tube Outer Diameter |
| PP65C-DOT |
1/4 |
| PP65E-DOT |
3/8 |
| PP65F-DOT |
1/2 |
|
| |
PP78-DOT |
Brass 45º Male Elbow
Show Details
| Category Number |
Tube Outer Diameter x Male Pipe |
| PP78C-DOT |
1/4 X 1/8 |
| PP78CC-DOT |
1/4 X 1/4 |
| PP78CE-DOT |
1/4 X 3/8 |
| PP78E-DOT |
3/8 X 1/8 |
| PP78EE-DOT |
3/8 X 1/4 |
| PP78EEE-DOT |
3/8 X 3/8 |
| PP78EF-DOT |
3/8 X 1/2 |
| PP78FC-DOT |
1/2 X 1/4 |
| PP78F-DOT |
1/2 X 3/8 |
| PP78FF-DOT |
1/2 X 1/2 |
| PP78HE-DOT |
5/8 X 3/8 |
| PP78H-DOT |
5/8 X 1/2 |
| PP78J-DOT |
3/4 X 1/2 |
| PP78JJ-DOT |
3/4 X 3/4 |
| SWIVEL |
| PP78SC-DOT |
1/4 X 1/8 |
| PP78SCC-DOT |
1/4 X 1/4 |
| PP78SE-DOT |
3/8 X 1/8 |
| PP78SEE-DOT |
3/8 X 1/4 |
| PP78SEEE-DOT |
3/8 X 3/8 |
| PP78SFC-DOT |
1/2 X 1/4 |
| PP78SF-DOT |
1/2 X 3/8 |
| PP78SFF-DOT |
1/2 X 1/2 |
|
| |
PP64-DOT |
Brass Tee
Show Details
| Category Number |
Tube Outer Diameter |
| PP64C-DOT |
1/4 |
| PP64E-DOT |
3/8 |
| PP64F-DOT |
1/2 |
| PP64H-DOT |
5/8 |
| PP64J-DOT |
3/4 |
|
| |
PP71S-DOT |
Brass Tee - Tube X Male Pipe Swivel X Tube
Show Details
| Category Number |
Tube Outer Diameter x Male Pipe |
| PP71SC-DOT |
1/4 X 1/8 |
| PP71SCC-DOT |
1/4 X 1/4 |
| PP71SEE-DOT |
3/8 X 1/4 |
| PP71SEEE-DOT |
3/8 X 3/8 |
| PP71SF-DOT |
1/2 X 3/8 |
|
| |
PP72S-DOT |
Brass Tee - With Swivel Male Pipe
Show Details
| Category Number |
Tube Outer Diameter x Male Pipe |
| PP72SC-DOT |
1/4 X 1/8 |
| PP72SCC-DOT |
1/4 X 1/4 |
| PP72SEE-DOT |
3/8 X 1/4 |
| PP72SEEE-DOT |
3/8 X 3/8 |
| PP72SF-DOT |
1/2 X 3/8 |
|
| |
PP72-DOT |
Brass Tee - With Male Pipe
Show Details
| Category Number |
Tube Outer Diameter x Male Pipe |
| PP72C-DOT |
1/4 X 1/8 |
| PP72CC-DOT |
1/4 X 1/4 |
| PP72EE-DOT |
3/8 X 1/4 |
| PP72EEE-DOT |
3/8 X 3/8 |
| PP72F-DOT |
1/2 X 3/8 |
|
