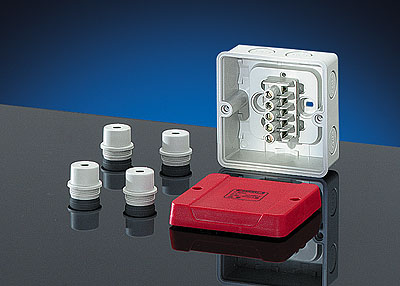

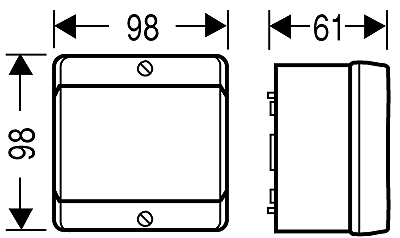

D 9245 - Cable Junction Box - Safety Lighting Circuits
for normal environment and protected outdoor
connecting terminal made from ceramic with resistance to high temperatures
Glow wire test accoreding to IEC 60 695-2-11 : 750�C flame-retardant, self-extinguishing
The stainless steel cover screws with quick fastening metric thread reduce cover fixing time
rated connecting capacity
with Terminals for Security Lighting Circuits 1.5-2.5mm², Cu3~
conductor material:
Cu
Polarity
5-pole, per pole
conductor cross section
sol 6 x 1.5 mm²
sol 4 x 2.5 mm²
sol 3 x 4 mm²
current carrying capacity
of the terminal 40 A
rated insulation voltage
AC/DC 690 V
degree of protection:
IP 65, IP 55 ESM
material:
PS polystyrene thermoplastic
color:
colour: grey, RAL 7035 with red lid RAL 3000
cable entry
included 4 ESM 20
sealing range
� 9-17 mm
in accordance with
IEC 60 670-22
D 9245 Features & Applications
Application area
Suitable for indoor installation and outdoor installation, protected against weather influences
Resistant to occasional cleaning procedures (direct jet)
Resistant to occasional cleaning procedures (direct jet) with highpressure
cleaner without additives, water pressure: max. 100 bar,
water temperature: max. 80° C, distance => 0,15 m, in accordance
with the requirements IP 69K, enclosure and cable glands at least
IP 65
ambient temperature
Average value over 24 hours + 35° C
Maximum value + 40° C
Minimum value - 25° C
Relative humidity
50% at 40° C
short-time
100% at 25° C
Fire protection in the event of the internal faults
Demands placed on electrical devices from standards and laws
Minimum requirements - Glow wire test in accordance with IEC 60
695-2-11: - 650°C for boxes and cable glands - 850°C for parts of
insulating material necessary to retain current carrying parts in
position
Burning Behavior
Glow wire test IEC 60 695-2-11: 750 �C
UL Subject 94: V-2
flame resistant
self-extinguishing
Degree of protection agains mechanical load
IK07 (2 Joule)
Toxic behavior
halogen-free, silicone-free "halogen-free" in accordance with the examination of the cables
and insulated wires - corrosiveness of fumes - as per IEC 754-2
Our products are used in the following areas of application:
Companies involved in the processing of metal, wood and paper, cement factories
Agricultural and food industries
Water treatment and sewage plants, power stations and cold-storage depots
Banks and insurance buildings
Leisure and commercial centers
Hospitals and clinics
Schools and universities
Stadiums and sports centers
Gas stations and traffic infrastructure in ports, underground stations, tunnel and road construction
Indoor and outdoor installations
