IP 66/67 temporary submersion up to 1 meter, max. 15 minutes

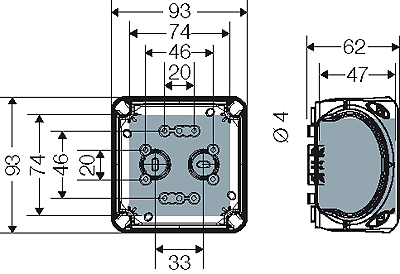

mounting width
74 mm
mounting height
74 mm
material:
Thermoplastic
max. installation depth
47 mm
color:
gray RAL 7035

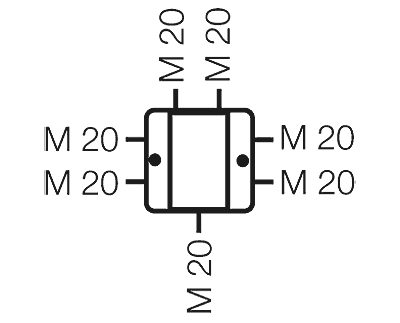

cable entry
cable/conduit entry via metric knockouts
order ASM separately (refer to index LES)
in accordance with
IEC 60,670-22
in accordance with
Det Norske Veritas Certificate No.: E-9149
Germanischer Lloyd Certificate No.: 12 941 - 11 HH
Russian Maritime Register of Shipping, technical documentation is approved by the letter No. 250-011-2-39
Resistant to occasional cleaning procedures (direct jet)
Resistant to occasional cleaning procedures (direct jet) with high-pressure cleaner without additives, water pressure: max. 100 bar, water temperature: max. 80� C, distance => 0,15 m, in accordance with the requirements IP 69K, enclosure and cable glands at least IP 65
ambient temperature
Average value over 24 hours + 55� C
Maximum value + 70� C
Minimum value - 25� C
Fire protection in the event of internal faults
Demands placed on electrical devices from standards and laws
Minimum requirements - Glow wire test in accordance with IEC 60 695-2-11: - 650�C for boxes and cable glands - 850�C for parts of insulating material necessary to retain current carrying parts in position
Fire protection in the event of specific risks or hazards
Demands placed on electrical installations and devices in areas and facilities subject to fire risk, e.g. DIN VDE 0100 Part 482, official regulations, VdS directives
Minimum requirements - Glow wire test to IEC 60 695-2-11: - 850�C for boxes and cable glands - 850�C for cavity wall installation - Use of fire resistant cables
Burning behavior
Glow wire test IEC 60 695-2-11: 960� C
UL Subject 94 V-0
flame resistant
self-extinguishing
degree of protection against mechanical load
IK09 (10 Joule)
Toxic behavior
halogen-free
silicone-free
"halogen-free" in accordance with the examination of the cables and insulated wires - corrosiveness of fumes - as per IEC 754-2
Note:
To material properties see technical data.
Our products are used in the following areas of application:
Companies involved in the processing of metal, wood and paper, cement factories
Agricultural and food industries
Water treatment and sewage plants, power stations and cold-storage depots
Banks and insurance buildings
Leisure and commercial centers
Hotel and ciType NEMA complexes
Hospitals and clinics
Schools and universities
Stadiums and sports centers
Gas stations and traffic infrastructure in ports, underground stations, tunnel and road construction
