sol 4 x 2.5 mm�
sol 4 x 4 mm�
sol 3 x 6 mm�
sol 2 x 10 mm�
rated insulation voltage
AC/DC 690 V
degree of protection:
IP 66 / IP 67
temporary submersion up to 1 meter, max. 15 minutes
material:
Polycarbonate
color:
black RAL 9011
cable entry

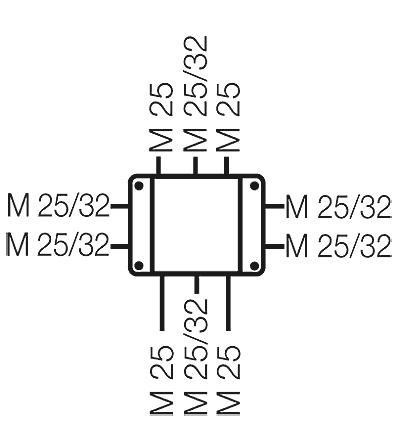

cable/conduit entry via metric knockouts
order ASS separately (refer to index LES)
in accordance with
IEC 60,670-22
in accordance with
Det Norske Veritas Certificate No. E-9693
Germanischer Lloyd Certificate No.: 12 941 - 11 HH
Russian Maritime Register of Shipping, technical documentation is approved by the letter No. 250-011-2-39

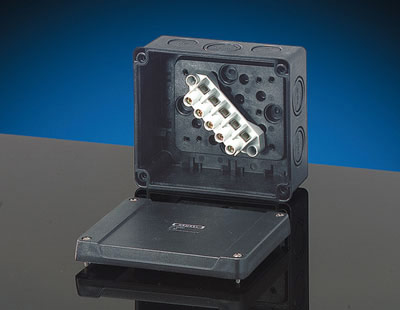

Cable junction boxes for "offshore applications" KD 5100
Application area
Suitable for use in offshore areas and for indoor installation (normal environment and /or protected outdoor) and outdoor installation (harsh environment and /or outdoor) in accordance with DIN VDE 0100, Part 737
Resistant to occasional cleaning procedures (direct jet)
Resistant to occasional cleaning procedures (direct jet) with high-pressure cleaner without additives, water pressure: max. 100 bar, water temperature: max. 80� C, distance => 0,15 m, in accordance with the requirements IP 69K, enclosure and cable glands at least IP 65
ambient temperature
Average value over 24 hours + 55� C
Maximum value + 70� C
Minimum value - 25� C
Fire protection in the event of internal faults
Demands placed on electrical devices from standards and laws
Minimum requirements - Glow wire test in accordance with IEC 60 695-2-11: - 650�C for boxes and cable glands - 850�C for parts of insulating material necessary to retain current carrying parts in position
Fire protection in the event of specific risks or hazards
Demands placed on electrical installations and devices in areas and facilities subject to fire risk, e.g. DIN VDE 0100 Part 482, official regulations, VdS directives
Minimum requirements - Glow wire test to IEC 60 695-2-11: - 850�C for boxes and cable glands - 850�C for cavity wall installation - Use of fire resistant cables
Burning behavior
Glow wire test IEC 60 695-2-11: 960� C
UL Subject 94 5 V
flame resistant
self-extinguishing
degree of protection against mechanical load
IK08 (5 Joule)
Toxic behavior
halogen-free
silicone-free
"halogen-free" in accordance with the examination of the cables and insulated wires - corrosiveness of fumes - as per IEC 754-2
Note:
To material properties see technical data.
