Enclosure Home Page|Mi Series Selection|Mi Series Enclosure Accessories|Terminals for Incoming Cables


Mi VE 304 - Terminal for Incoming Cables

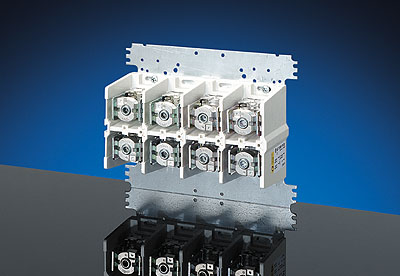

Mi VE 304, Terminals for Incoming Cables, 300 mm², 4-pole, on a Mounting plate
  Enlarge Picture

300 mm², 4-pole, on a Mounting plate

  • to be assembled in Mi Empty Boxes sizes 2 to 8
  • complete on mounting plates 300x300 mm
  • with fastening screws, 258 mm wide
  • 2-pole 1 x 120-300 mm², 2 x 95-185 mm²
  • outgoing Cu-Band Mi VS ..
  • 2-5-pole, for Cu- and Aluminum-wires
  • current carrying capacity 630A
  • connection possibilities for incoming terminals up to 300 mm²
Part Number Number of Poles Rated connecting capacity Clamping units per pole
sol
(round)
sol (round)
s
(round)
s (round)
sol
(sector)
sol (sector)
s
(sector)
s (sector)
Outgoing wiring band Current carrying capacity Tightening torque
Mi VE 120 4-pole 150 mm² 2 (A)
4 (B) 		16-50 16-150 50-150 35-150 Mi VS 250 250 A 20 Nm
Mi VE 125 5-pole 16-50 16-70 50-70 35-70
Mi VE 240 4-pole 240 mm² 2 (A)
4 (B) 		25-50 25-240 50-185 35-240 Mi VS 400 400 A 40 Nm
Mi VE 245 5-pole 25-50 25-120 50-120 35-120
Mi VE 302 2-pole 300 mm² 2 (A) - 120-300 120-185 120-300 Mi VS 630 630 A 50 Nm
Mi VE 303 3-pole 4 (B) 70 70-185 95-185 95-185
Mi VE 304 4-pole
