Enclosure Home Page|Mi Series Selection|Mi Series Enclosure Accessories|Protection Plates


Mi EP 01 - Protection Plate

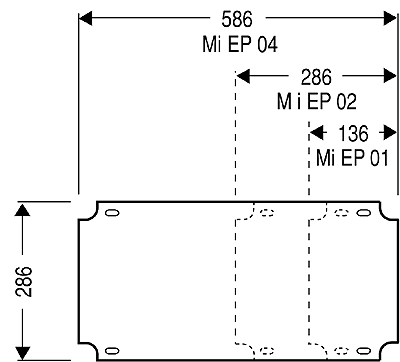

Mi EP 01, Protection Plate, for Mi Empty Box Size 1 (Mi 01xx)
  Enlarge Picture

Mi EP 01, Protection Plate, for Mi Empty Box Size 1 (Mi 01xx)
Enlarge Picture


for Mi-Empty Box Size 1

  • for subsequent installation in Mi empty boxes
  • closed protection plate made of thermoplastics in which equipment can be mounted or covered with protection against electric shock
  • with fastening material




Installation of equipment in protection plates:

Pre-drill the sections at the corners then saw away the section from the protection plate by using a piercing saw at the middle to low cutting speed.  Use coarse toothed saw blades for plastic. Screw the support for the protection plate Mi EP 02 at the base of the box. Put on the protection plate.
Installation of equipment 1 Installation of equipment 2 Installation of equipment 3
