Enclosure Home Page|Industrial Enclosures|Close-Out Sale Selection


K 9500PG - Polystyrene Indoor Enclosures w/ 10 x PG16 (.89") / PG21 (1.11") & 4x PG29 (1.46") / PG36 (1.85") Knockouts

K9500PG polystyrene Enclosure Close-Out Price
$21.98
Stock
155

  Enlarge Picture


Enlarge Picture

W 12.20" (310 mm) x H 8.27" (210 mm) x D 4.57" (116 mm)
degree of protection IP 55 (with ESM Grommet)
degree of protection IP 68 (with Liquid Tight Cable Gland)
material thermoplastic
mounting width 280 mm
mounting height 180 mm
max. installation depth 95 mm
color gray RAL 7035
cable entry cable/conduit entry via metric knockouts

SpacerAccessories Accessories
SpacerDetailed Dimensions Detailed Dimensions

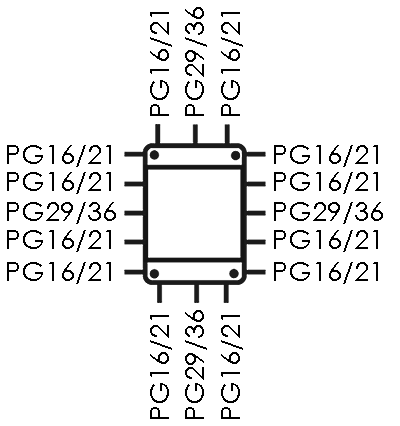

SpacerHole Configurations: Hole Configurations: Number of Holes & Sizes

K 9500PG Features & Applications

High quality Thermoplastic (Polystyrene):
  • Solid, modern and user-friendly design
  • Color: Gray RAL 7035
  • Halogen-free and Silicone-free
  • Fire-resistant & Self-extinguishing
  • RoHS Compliant
  • Stainless Steel fastening screws
  • Accessories included in box
  • Maintenance-free
  • Cable Entry: PG Knockouts

Application:
This Enclosure box is suitable for indoor installation and protected outdoor installation, protected against weather influences according to DIN VDE 0100 Part 737.
Resistant to occasional cleaning procedures (direct jet) max. with high-pressure cleaner
without additives water pressure: max. 65 bar, water temperature: max. 50° C, distance => 0.5
m box and cable entries at least IP 65.

Our products are used in the following areas of application:

  • Companies involved in the processing of metal, wood and paper, cement factories
  • Agricultural and food industries
  • Water treatment and sewage plants, power stations and cold-storage depots
  • Banks and insurance buildings
  • Leisure and commercial centers
  • Hotel and ciType NEMA complexes
  • Hospitals and clinics
  • Schools and universities
  • Stadiums and sports centers
  • Gas stations and traffic infrastructure in ports, underground stations, tunnel and road construction
  • Indoor and outdoor installations
