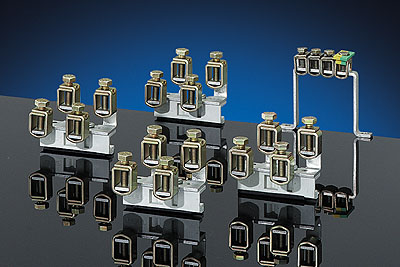

KLS 55 - Terminal Set

KLS 55, Terminal Block: 5-pole - Max. Voltage= 600V - Set 16 to 50 mm², Cu
  Enlarge Picture

KLS 55, Terminal Block: 5-pole - Max. Voltage= 600V - Set 16 to 50 mm², Cu
Enlarge Picture



  • for insertion in cable junction boxes
  • complete with fixing elements
  • for cable junction boxes K 8500, K 9500, KF 4500, KF 5500, KF 8500, KF 9500
  • PE max. 35 mm²
rated connecting capacity 16-50 mm²
conductor material Cu
polarity 5-pole, per pole
conductor cross section s 4 x 16 mm²
s 4 x 25 mm²
s 4 x 35 mm²
s 4 x 50 mm²
conductor cross section sol 70 mm²
PE max. 35 mm²
current carrying capacity 170 A
