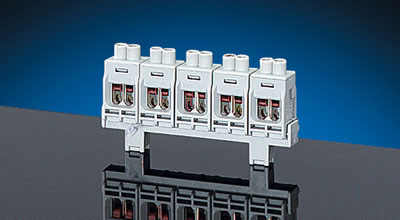

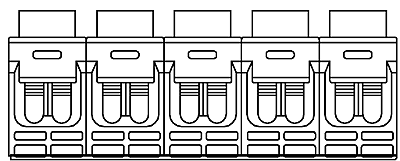

KLS 10 - Terminal Set

KLS 10 - Terminal Set
  Enlarge Picture

KLS 10 - Terminal Set
Enlarge Picture



  • for insertion in cable junction boxes
  • complete with fixing elements
  • for cable junction boxes K 8100, K 9100, KF 4100, KF 5100, KF 8100, KF 9100, KD 5100, KD 4100
rated connecting capacity 2.5-16 mm²
conductor material Cu
polarity 5-pole, per pole
conductor cross section sol 6 x 2,5 mm²
sol 4 x 4 mm²
sol 4 x 6 mm²
sol 4 x 10 mm²
conductor cross section s 2 x 16 mm²
current carrying capacity 63 A
