Enclosure Home Page|Industrial Enclosures|Enclosure Accessories|Terminal Sets

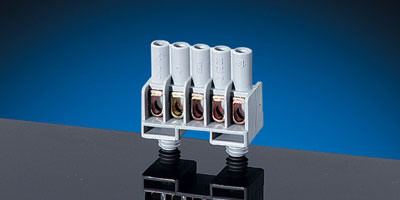

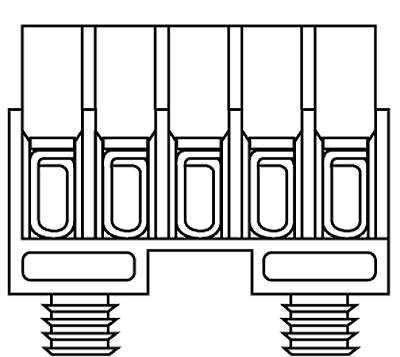

DKL 04 - Terminal Set

DKL 04 - Terminal Set
  Enlarge Picture

DKL 04, Terminal Block: 5-pole - Max. Voltage= 600V, Set 1,5 to 6 mm², Cu, 5-pole
Enlarge Picture



  • for insertion in cable junction boxes
  • complete with fixing elements
  • for cable junction boxes D 8020, D 8120, D 8040, D 9020, D 9120, D 9040, D 9220, DP 9020, DP 9220, DE 9320, DE 9321, DE 9340, DE 9341, KF 4020, KF 4040, KF 5020, KF 5040, KF 8020, KF 8040, KF 9020, KF 9040, KD 5020, KD 5040, KD 4020, KD 4040
rated connecting capacity 1.5-6 mm²
conductor material Cu
polarity 5-pole, per pole
conductor cross section sol 6 x 1,5 mm²
sol 4 x 2,5 mm²
sol 3 x 4 mm²
sol 2 x 6 mm²
