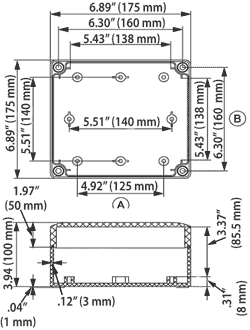

A - 8 x M16, 1 x M12
B - 8 x M16, 1 x M12 Breather valve mounted
*Transparent cover made of Polycarbonate
Assembly and machining services of your enclosures are available on request.
Drawings with additional dimensions can be furnished on request.
Polycarbonate Enclosured with transparent, UV protected top and standard venting area ideal in photovoltaic installations and applications with challenging environments.
Electronic components and connections to Generators, Switches, Circuit Breakers and PCB's, etc. as well as customer specific configurations are IP 66 / 67 protected.
Characteristics of Polycarbonate
High impact resistance
High degree of protection
Light weight
Good resistance to chemicals
Wide temperature range
Self-extinguishing
Easily machined using standard tools
Excellent insulation properties
Suitable for indoor & outdoor use
Also available with transparent cover
Because of the fiberglass used, achieving the correct color shade may be difficult
Polycarbonate
Protection EN 60529
IP 66 / IP 67
Impact EN 50102
at +95/-13°F (+35/-25°C)
IK 08 / IK 08
Temperature Range
-58°F to 212°F (-50°C to 100°C)
Fire Resistance per UL 94
V-2
Standard Color
Gray RAL 7035
Transparent Cover
Polycarbonate
Gasket
PUR (Polyurethane)
Cover Screws
Nylon
Approvals:
