CAMOZZI Valves -
Manual, Mechanical & Air-Pilot

Series 3 - 1/8" Ported Mechanically Operated Sensor Valves

PDF Download

Series 3 - 1/8" Ported Mechanically Operated Sensor Valves (Whisker Valve) (Cv = 0.73)

3-way/2-position normally closed, Ports 1/8" NPTF

Part Number

338-D15-9A5

Operating pressure 4 - 10 bar, 58-145 psi
Acutuation force = .5lbf at 6 bar (2N)
* The function of the valve is indicated by the symbol when operating between 4 and 10 bar.

(Part Listed Is BSP For NPT Sizes - Add TF to Order Code)

Coding Example

(Click Image to Enlarge)

Coding Example

D15

9A5

3	Series 3 = Spool type
3	Function (Way/Position) 3 = 3/2 way normaly closed 4 = 3/2 way normally open 5 = 5/2 way
8	Ports 8 = 1/8"

D15	Pilot Function D15 = pressure drop/air-spring return
9A5	Actuation 9A5 = lever sensor, spring return
TF	Ports TF = NPTF

* These valves have an internal mechanical spring return and a pilot-pressure spool plunger that shifts upon actuation of the lever by depressurizing the spool plunger. Valve symbols shown are "at rest" next to the actuator symbol.

Technical Specifications

Valve group	3-way/2-position, 5-way/2-position
Construction	Spool-type (servo-controlled)
Mounting	Mounting holes in valve body
Materials	Anodized body, stainless steel spool, Buna-N seals
Threaded port sizes	1/8" NPTF
Installation	In any position
Operating temperature	32°F - 175°F, (dry air necessary down to -4°F)
Fluid	Filtered air (25 micron or less recommended)
Lubricant	Not required; otherwise, oil compatible with Buna-N, (3° - 10°E) (ISOVG 32 grade; 32 centistrokes)

Pneumatic Data

Operating pressure	4-10 bar (58-145 psi)
Nominal pressure	6 bar (87 psi)
Nominal flow	*Qn Series 3: 1/8" = 700 Nl/min. (24.7 SCFM)
Cv rating	1/8" = .73
Nominal diameter	1/8" = 5 mm
Fluid	Filtered air

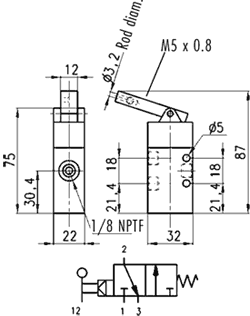

* Qn = determined with supply pressure of 6 bar and with Dp = 1 bar **Dimensions are in millimeters
