CAMOZZI Valves - Manual, Mechanical & Air-Pilot

Series 2 - Manually Operated Console Minivalves

PDF Download

Series 2 - Manually Operated Console Minivalves (Cv = 0.06)

3/2 way normally closed, Ports 10-32 UNF or 5/32" O.D., 2 - position selector, stable

Ø 22mm, black,
with Ø 22 mm mounting aperture

Part Number	Ports
235-990	10-32 UNF
234-990	5/32" O.D.

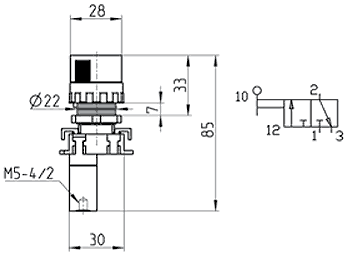

Coding Example

(Click Image to Enlarge)

Coding Example

2	Series 2
3	Function 3 = 3/2 way normally closed 4 = 3/2 way normally open 8 = 5/3 way center open exhausting
4	Ports 4 = cartridge ø 0.4 mm (5/32" O.D.) 5 = M5 (10-32 UNF)

97	Mode of Operation* 87 = 3 - position selector 89 = pushbutton 97 = palm-switch 90 = joystick † 99 = 2 - position selector 92 = foot pedal 904 = key 2 positions
5	Resetting 5 = spring return 0 = stable 2 = latching-twist to release 54 = joystick †

Technical Specifications

Valve group	3-way/2-position, 5-way/3-position
Construction	Poppet type
Mounting	On consoles, control panels or cabinets: bulkhead design
Materials	Anodized body, Brass poppet gate, Buna-N seals
Threaded port sizes	M5 (10-32 UNF) thread, or 4 mm OD cartridge (5/32" OD tube connect)
Installation	Bulkhead, or single panel mount
Operating temperature	32°F - 175°F, (dry air necessary down to -4°F)
Fluid	Filtered air (25 micron or less recommended)
Lubricant	Not required. Otherwise, only oil compatible with Buna-N, (3° - 10° E) (approximate 32 center strokes viscosity), ISOVG32 grade
Operating pressure	2 - 10 bar, (30 - 145 psi)
Nominal pressure	6 bar, (87 psi)
Nominal flow	*Qn = 60 NL/min. (2.12 SCFM)
Nominal diameter	2.5 mm
Cv Rating	0.06
Qn flowrate (SCFM) determined with a supply pressure of 6 bar, (87 psi), and with a pressure drop of 1 bar, (14.5 psi). *Dimensions are in millimeters.
