CAMOZZI Valves - Manual, Mechanical & Air-Pilot

Right Angle Flow Control Valves - NPTF/INCH

PDF Download

Right Angle Flow Control Valves - NPTF/INCH

Needle Orifice Valves Series GSCO

Part Number

GSCO 53-02

GSCO 04-02

GSCO 04-04

GSCO 06-04

GSCO 06-06

This needle-orifice bidirectional flow control is designed with a needle orifice. It has a screwdriver
adjustment with a right-angle push to connect tube fitting.

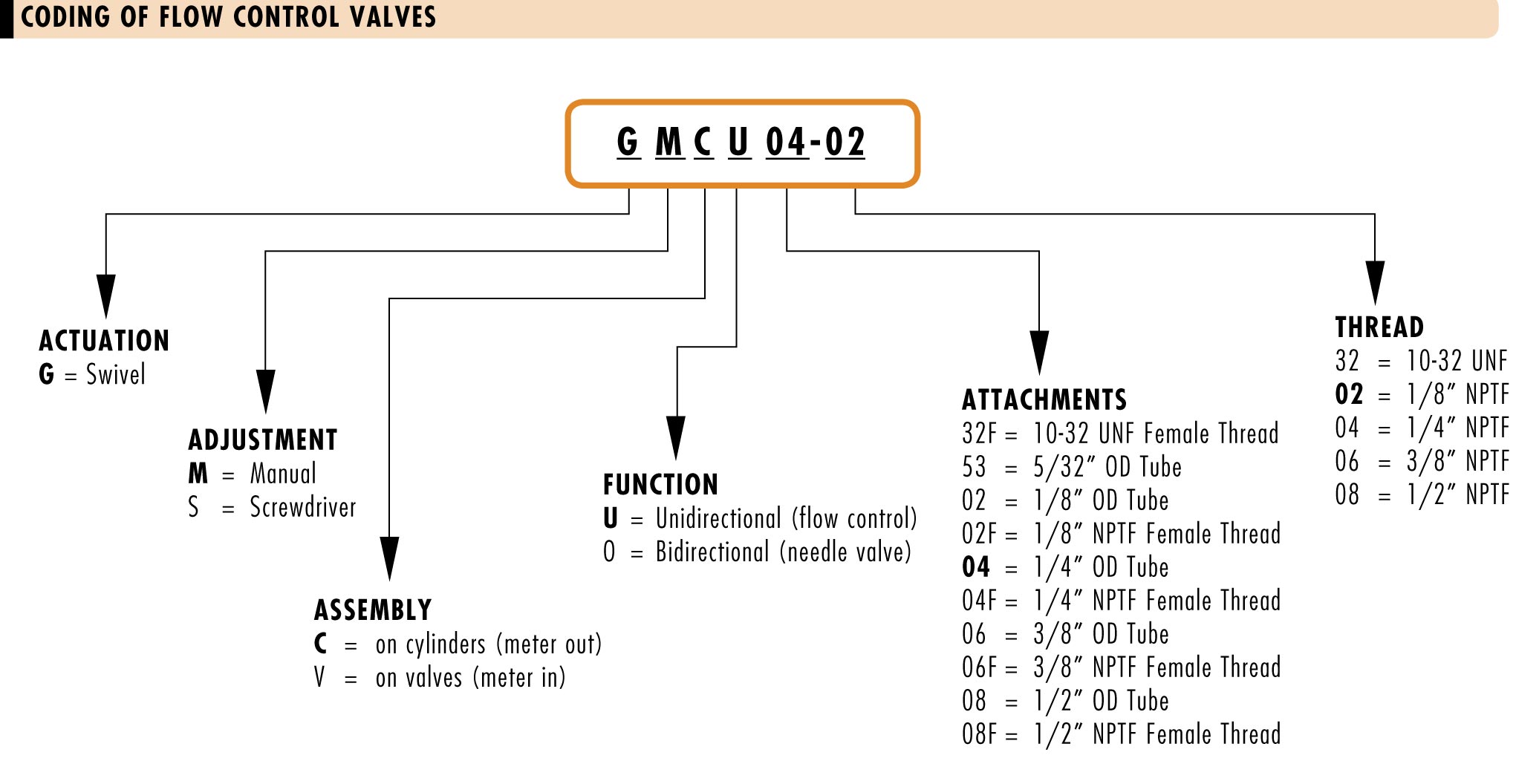

Coding Example

(Click Image to Enlarge)

Coding Example

G	Actuation G = Swivel
M	Adjustment M = Manual S = S crewdriver
C	Assembly C = on cylinders (meter out) V = on valves (meter in)
U	Function U = Unidirectional (flow control) O = Bidirectional (needle valve)
04	Attachments 32F = 10-32 UNF Female Thread 53 = 5/32" OD Tube 02 = 1/8" OD Tube 02F = 1/8" NPTF Female Thread 04 = 1/4" OD Tube 04F = 1/4" NPTF Female Thread 06 = 3/8" OD Tube 06F = 3/8" NPTF Female Thread 08 = 1/2" OD Tube 08F = 1/2" NPTF Female Thread
02	Thread 32 = 10-32 UNF 02 = 1/8" NPTF 04 = 1/4" NPTF 06 = 3/8" NPTF 08 = 1/2" NPTF

Technical Specifications

Valve group	Unidirectional and bidirectional controller, (meter-in, meter-out, and needle valve)
Construction	Needle type
Mounting	Right-angle male thread
Materials	Nickel-plated brass body, Buna-N seals, Nylon gaskets
Port sizes	M5 (10-32 UNF), 1/8", 1/4", 3/8", 1/2" NPTF
Tube sizes	1/8", 5/32", 1/4", 3/8", 1/2" (O.D.)
Installation	Any position
Operating temperature	32° - 175° F, (dry air necessary down to - 4° F)
Fluid	Filtered air
Lubricant	Oil compatible with Buna-N, ( 3° - 10° E)

Pneumatic Data

Operating pressure	1.0 - 10 bar (14.5 - 145 psi)
Nominal pressure	6 bar (87 psi)
Nominal flow	See graphs
Nominal diameter	M5 (10-32 UNF) = 1.5mm (.059"), 1/8" = 2 mm (.079") 1/4" = 4 mm (.157"), 3/8" = 7 mm( .275")
Qn flowrate (SCF M) determined with a supply pressure of 6 bar, (87 psi), and with a pressure drop of 1 bar, (14.5 psi). *Dimensions are in inches
