Manifold base with common exhausts - Series 4 valves 1/4"
For valves Series 4, 1/4 (3-way/2-position, 5-way/2-position or
5-way/3-positions).
The following is supplied :
No. 1 manifold
No. 1 pair of fixing screws per valve position
No. 3 OR seal per valve position
No. 2 guides per valve position
* Available from 2 - 6 stations

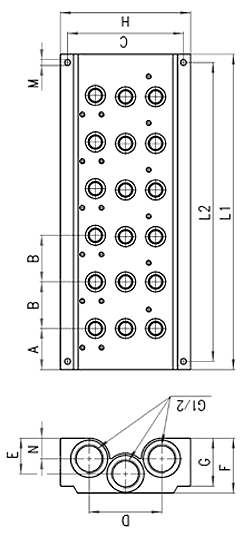

Stations
Part Number
A
3/8" NPTF
B
Inlet/ Exhaust Ports
C
D
E
F
G
H
L1
L2
M
N
2
CNVL-52
30
34
1/2"
84.5
53
26
40
35
95
94
82
4.3
15
3
CNVL-53
30
34
1/2"
84.5
53
26
40
35
95
128
116
4.3
15
4
CNVL-54
30
34
1/2"
84.5
53
26
40
35
95
162
150
4.3
15
5
CNVL-55
30
34
1/2"
84.5
53
26
40
35
95
196
184
4.3
15
6
CNVL-56
30
34
1/2"
84.5
53
26
40
35
95
230
218
4.3
15
(Part Listed Is BSP For NPT Sizes - Add TF to Order Code)
filtered air, without lubrication** (25 micon recommended)
