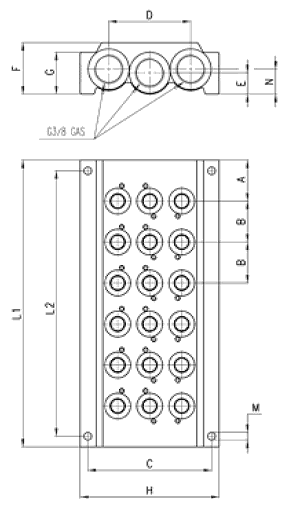

Manifold base with common exhausts - Series 4 valves 1/8"
For valves Series 4, 1/8 (3-way/2-position, 5-way/2-position or
5-way/3-positions).
The following is supplied:
No. 1 manifold
No. 1 pair of fixing screws per valve position
No. 3 OR seal per valve position
No. 2 guides per valve position
* Available from 2 - 6 stations
Stations
Part Number
A
3/8" NPTF
B
Inlet/ Exhaust Ports
C
D
E
F
G
H
L1
L2
M
N
2
CNVL-42
28
33
3/8"
69.5
46
12
29
23.5
78
89
77
4.3
14
3
CNVL-43
28
33
3/8"
69.5
46
12
29
23.5
78
122
110
4.3
14
4
CNVL-44
28
33
3/8"
69.5
46
12
29
23.5
78
155
143
4.3
14
5
CNVL-45
28
33
3/8"
69.5
46
12
29
23.5
78
188
176
4.3
14
6
CNVL-46
28
33
3/8"
69.5
46
12
29
23.5
78
221
209
4.3
14
(Part Listed Is BSP For NPT Sizes - Add TF to Order Code)
filtered air, without lubrication** (25 micon recommended)
