FRL - Filters, Regulators and Lubricators

CAMOZZI Modular FRL Series MC

PDF Download

Pressure Regulators Series MC

Port 1/4", 3/8", 1/2" NPTF
Modular

The Series MC pressure regulators are available with port 1/4", 3/8", 1/2" NPTF.
Relieving diaphragms are standard. Non-Relieving and Fast-Response Relieving diaphragms are optional, as called out in the code key. All versions can be panel mounted.

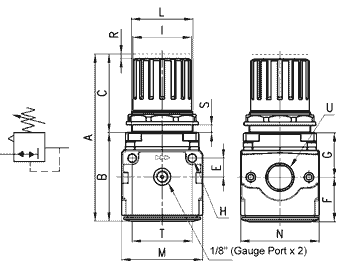

Part Number	A	B	C	E	F	G	H	I	L	M	N	O	R	S	T	U (NPTF)
MC104-R00TF	3.701	2.205	1.496	.433	1.122	1.083	.157	1.102	M30x1.5	1.772	1.772	1.772	.118	.236	1.378	1/4"
MC238-R00TF	5.000	2.638	2.362	.551	1.339	1.378	.197	1.772	M47x1.5	2.441	2.441	2.362	.138	.354	1.811	3/8"
MC202-R00TF	5.000	2.638	2.362	.551	1.339	1.378	.197	1.772	M47x1.5	2.441	2.441	2.362	.138	.354	1.811	1/2"

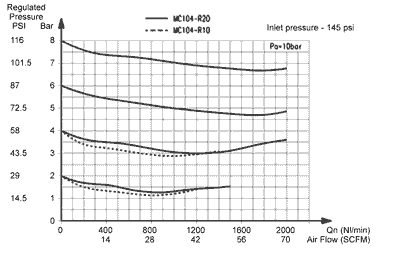

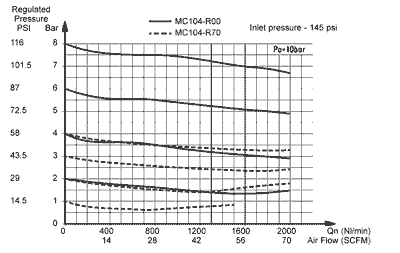

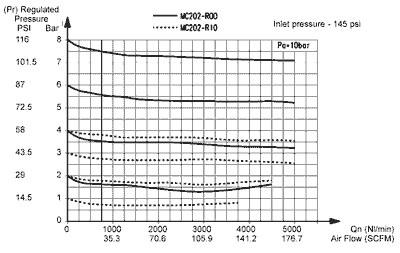

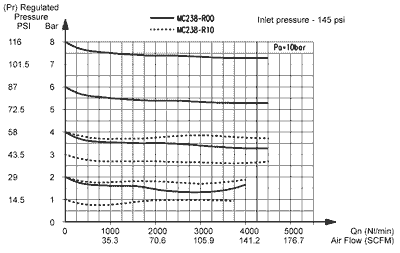

Coding Example & Flow Diagrams

(Click Image to Enlarge)

Coding Example

MC	Series
1	Size 1 = 1/4" 2 = 3/8" or 1/2"
04	Ports 04 = 1/4" NPTF 38 = 3/8" NPTF 02 = 1/2" NPTF
R	Regulator
0	Operating Pressure 0 = 0.5 - 10 bar (standard) (7.25 - 145 psi) 1 = 0 - 4 bar (0 - 58 psi) 2 = 0 - 2 bar (0 - 29 psi), 1/4" ONLY 7 = 0.5 - 7 bar (7.25 - 102 psi), 1/4" ONLY
0	Design Type 0 = self-relieving 1 = non-relieving 5 = fast-response control, (metal-to-metal seat), relieving - 1/4" ONLY
VS	Blank = without high-relief flow VS = with high-relief flow, rapid back flow (1/4" units only)
TF	Port TF = NPTF Blank = BSPP thread ports

(Click Image to Enlarge)

Technical Specifications

Construction	modular, compact, diaphragm type
Materials	Aluminum Body, Buna-N Seals,Nylon-Grilamid Knob, Brass internals
Port	NPTF 1/4" 3/8" 1/2"
Weight	lbs .71 1.42 1.42
Pressure gauge port	1/8" NPTF
Mounting	In-line wall or console mounting (in any position)
Operating temperature	-5°C - 50°C, (23°F - 122°F), with Dew Point of air at least 2°C (4°F) below the min working temperature
Finishing	enameled

Pneumatic Data

Inlet pressure	0 - 16 bar (0 - 232 psi)
Outlet pressure	0.5 - 10 bar or 0 - 4 bar (7.25 - 145 psi or 0 - 58 psi)
Nominal flow	See graph
Secondary pressure relieving	Standard, Non-Relieving and Sensitive Control Relieving available
