FRL - Filters, Regulators and Lubricators

CAMOZZI Modular FRL Series MC

PDF Download

Filter/Regulator Series MC

Port 1/4", 3/8", 1/2" NPTF
Modular with metal bowl guard and bayonet-type mounting

The filter regulators Series MC are available with port 1/4", 3/8", 1/2" NPTF. They combine the features of the filters and regulators and have smaller overall dimensions than the two separate components.

Part Number	A	B	C	D	E	F	G	H	I	L	M	N	O	P	Q	R	S	T	U
MC104 -D00TF	7.500	4.016	2.047	1.496	.433	4.980	1.083	.157	1.102	M30x1.5	1.772	1.772	1/8	1.457	2.283	.118	.024	1.378	1/4
MC238 -D00TF	10.098	5.236	2.520	2.323	.551	6.378	1.378	.197	1.772	M47 x1.5	2.441	2.323	1/8	2.087	2.835	.138	.035	1.811	3/8
MC202 -D00TF	10.098	5.236	2.520	2.323	.551	6.378	1.378	.197	1.772	M47 x1.5	2.441	2.323	1/8	2.087	2.835	.138	.035	1.811	1/2

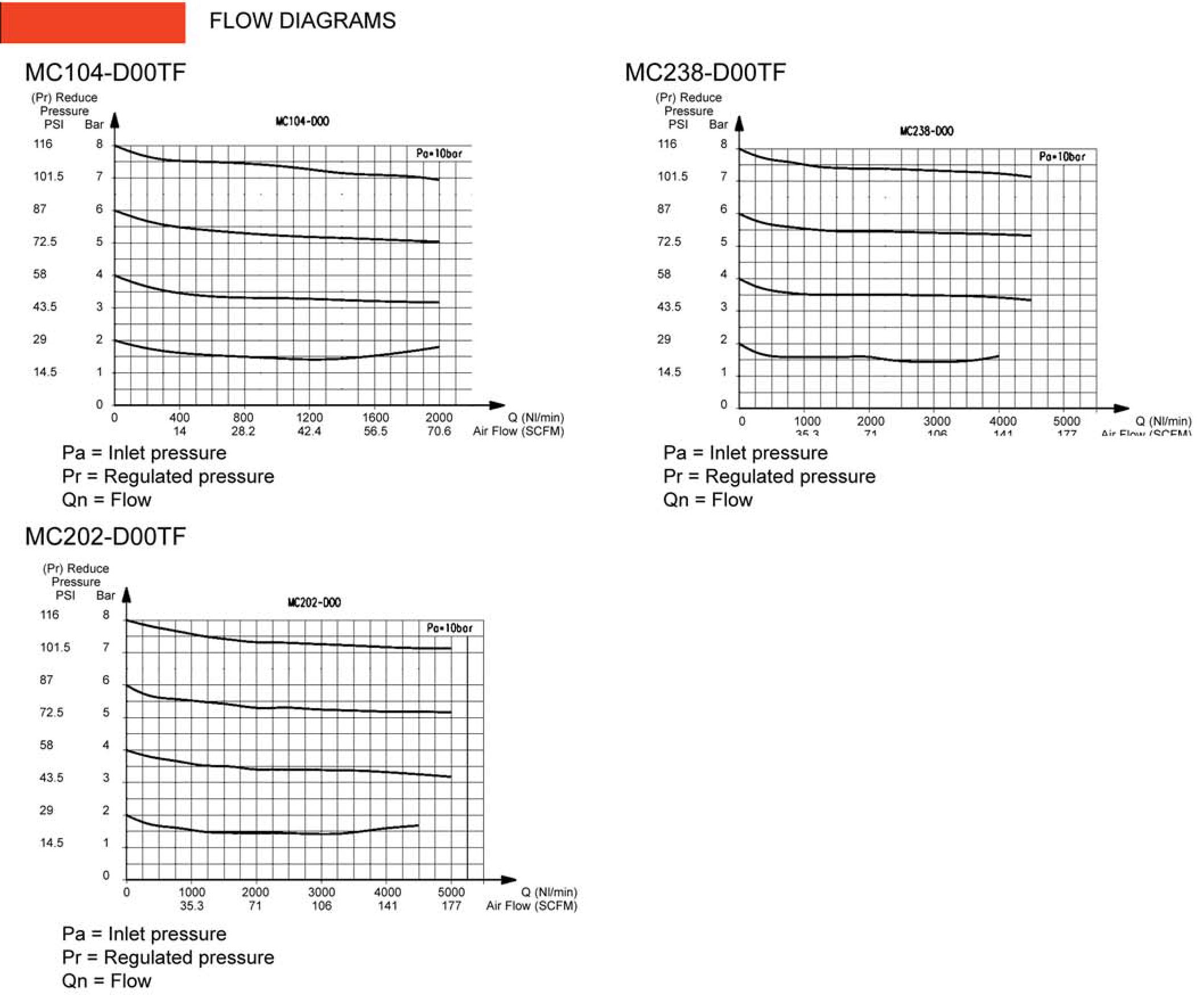

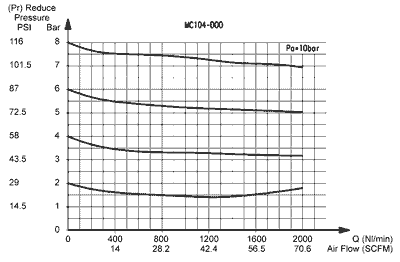

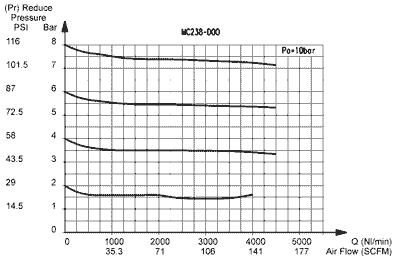

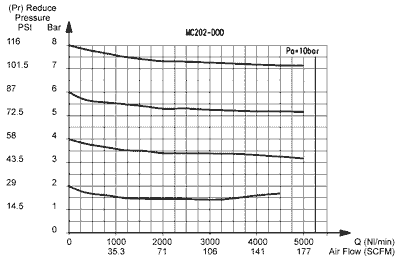

Coding Example & Flow Diagrams

(Click Image to Enlarge)

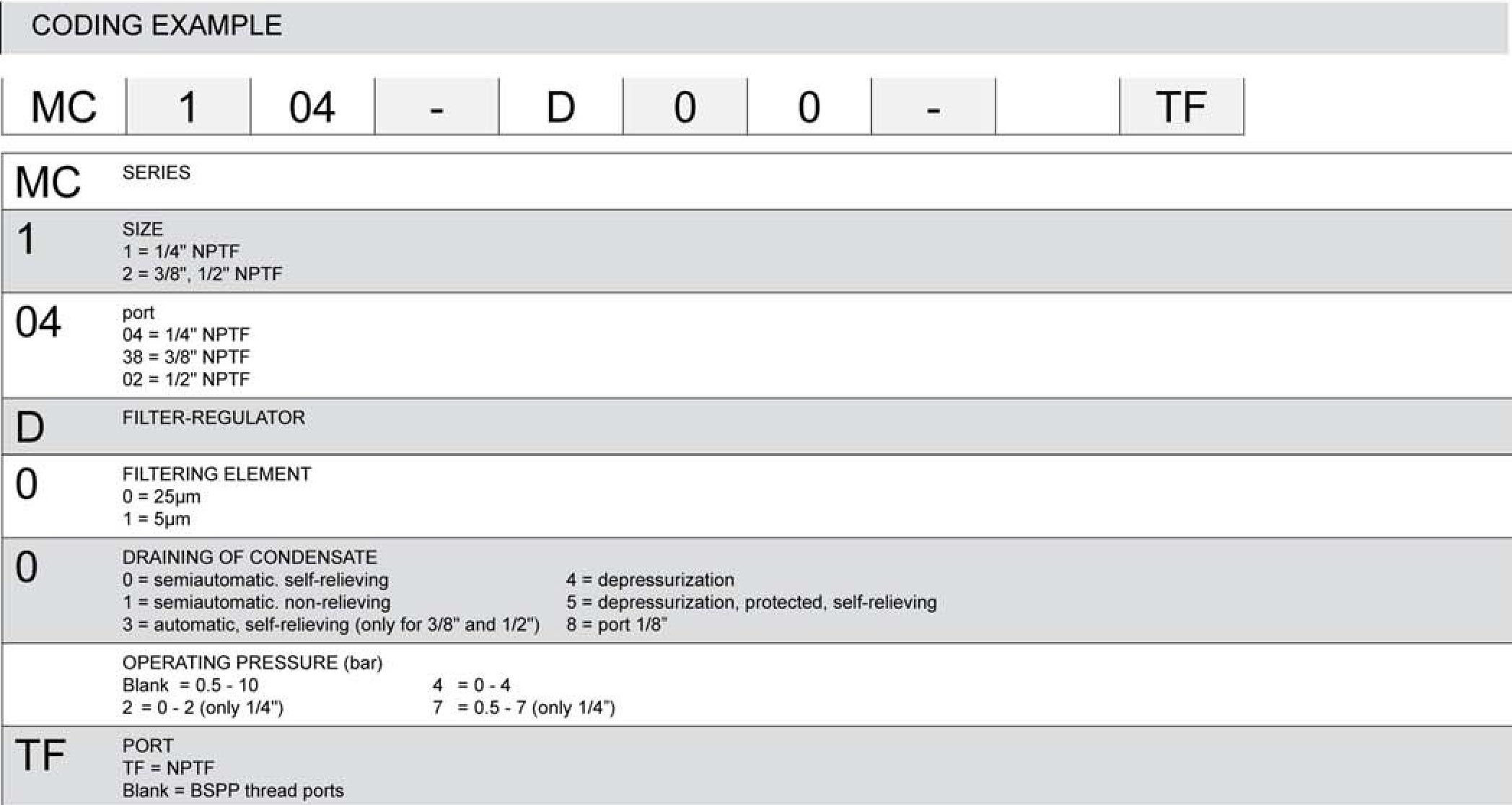

Coding Example

MC	Series
1	Size 1 = 1/4" 2 = 3/8" or 1/2"
04	Ports 04 = 1/4" NPTF 38 = 3/8" NPTF 02 = 1/2" NPTF
D	Filter-Regulator
0	Filtering Element 0 = 25µm 1 = 5µm
0	Draining of Condensate 0 = semiautomatic. self-relieving 1 = semiautomatic. non-relieving 3 = automatic, self-relieving (only for 3/8" and 1/2") 4 = depressurization 5 = depressurization, protected, self-relieving 8 = port 1/8"
	Operating Pressure Blank = 0.5 - 10 2 = 0 - 2 (only 1/4") 4 = 0 - 4 7 = 0.5 - 7 (only 1/4")
TF	Port TF = NPTF Blank = BSPP thread ports

(Click Image to Enlarge)

Technical Specifications

Construction	compact modular with filtering element in HDPE - diaphragm type
Materials	Body - Aluminum alloy, Bowl - Grilamid TR 55 (Nylon compound), Seals - Buna-N
Port	NPTF: 1/4" 3/8" 1/2"
Condensate capacity	oz 1 2.4 2.4
Weight	lbs .98 2.09 2.05
Pressure gauge port	1/8" NPTF
Mounting	vertical in-line or wall-mounting
Operating temperature	-5°C - 50°C, (23°F - 122°F), with Dew Point of air at least 2°C (4°F) below the min working temperature
Porosity of filtering element	25 µm standard - 5 µm upon request
Draining of condensate	manual - semi-automatic standard
Finish	enameled

Pneumatic Data

Inlet pressure	0.3 - 16 bar, (with depressurizing drain P Max. of 10 bar) : 4.35 - 232 psi, (P Max 145 psi w/ depressurizing drain)
Outlet pressure	0.5 - 10 bar (7.25 - 145 psi)
Nominal flow	see graph
Secondary pressure relieving	standard

Items For Quote

Modular FRL Series MC

Filters

Coalescing Filters

Pressure Regulators

Manifold Pressure Regulators

Lubricators

Filter / Regulators

Lockable Isolation 3/2-way Valve

Electropneumatic / Pneumatic Isolation Valve

Soft Start Valve

Take-off Blocks (Distribution Blocks)

Solenoids

Complete Assemblies

Assembly Hardware Kits

Accessories for Series MC

Series MC & N - Functioning Condensate Drains
