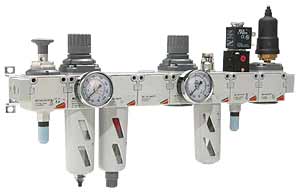

FRL Series MC - Completed Assemblies
(Single Part Number Code)
Ports 1/4", 3/8", 1/2" NPTF
The FRL Series MC Fully Assembled version are easier
to order using one single part number code and to mount.
The version with end-plate kit flanges is supplied
without rear mounting bracket assembly, KIT B, (sold separately).
Assembly Group** C = D + L E = V01 + D + L FRL = F + R + L GN = D + L + V16 + AV HNA = V01 + D + L + V16 + AV + PRESS N.A. HNC = V01 + D + L + V16 + AV + PRESS N.C. N = V01 + D
5
Filtering Element 5 = 5 µm 25 = 25 µm
FL
FL = with end -plate flanges Blank = no end -plates on assembly
TF
Port TF = NPTF Blank = BSPP thread ports
** Assembly group KEY for Code Abbreviations
D
MC***-D00 Filter-regulator 0-10 bar
semi-automatic manual drain filtering
element 5µm or 25µm
V01
MC***-V01 Lock-Out Valve 3/2 way
manually operated
V16
MC***-V16 Shut-Off Valve 3/2 way
electropneumatically operated, (coils
sold separately, not included in
assemblies)
L
MC***-L00 Lubricator
F
MC***-F00 Filter 5µm or 25µm
R
MC***-R00 Regulator 0 - 10 bar (0 -
145 psi)
AV
MC***-AV Soft start valve
PRESS
PM11-NA or NC, Pressure switches
(define if NC or NO)
Technical Specifications
Construction
modular, compact, either with or without end-plate flange kits.
Materials
Body - Aluminum, Heads/Covers - Nylon, Bowls - Nylon (Grilamid), Bowl Guard - Aluminum, Seals - Buna-N, internals in
brass
Ports
1/4" - 3/8" - 1/2" NPTF
Mounting
vertical, in-line or wall-mounting
Finish
enameled
Pneumatic Data
Operating temperature
-5°C - 50°C, (23°F - 122°F), with Dew Point of air at least 2°C (4°F) below the min working temperature
Flow
determined at 87 psi inlet supply with pressure drop of 14.5 psi (Pressure drop of 7.25 for FRL assembly group utilizing
"R00", instead of "D00" models.)
