camozzi Index |
camozzi

Accessories for Cylinders Series 60 - Rear Trunnion Ball Joint
Download & Save as PDF File PDF Download

Rear Trunnion Ball Joint Rear Trunnion Ball Joint Model R
Material: Aluminum
Supplied with: 1x trunnion ball joint, 4x screws

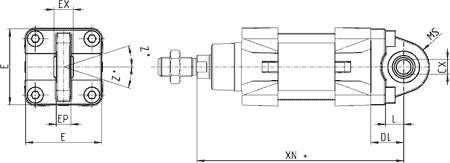

Technical Drawing
Part Number Ø ØCX L DL XN+ MS E EX EP Z torque force
R-41-32 32 10 12 22 142 16 45 14 10,5 4 6 Nm
R-41-40 40 12 15 25 160 20 52 16 12 4 6 Nm
R-41-50 50 12 15 27 170 20 63 16 12 4 13 Nm
R-41-63 63 16 20 32 190 24 73 21 15 4 13 Nm
R-41-80 80 16 24 36 210 24 95 21 15 4 19 Nm
R-41-100 100 20 29 41 230 30 115 25 18 4 22 Nm
R-41-125 125 30 30 50 275 40 140 37 25 4 26 Nm
+ = Add the stroke
