camozzi Index |
camozzi

Accessories for Cylinders Series 60 - Piston Rod Socket Joint
Download & Save as PDF File PDF Download

Piston Rod Socket Joint

Piston Rod Socket Joint Model GY
ISO 8139
Material: Zama and Zinc-plated Steel

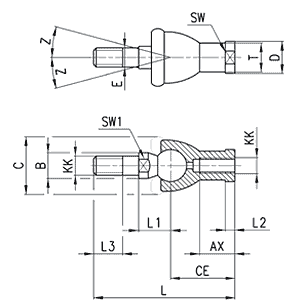

Technical Drawing
Part Number Ø KK L CE L2 AX SW L1 L3 ØT ØD E ØB ØC Z
GY-32 32 M10X1,25 74 35 6,5 18 17 19,5 15 15 19 10 14 28 15
GY-40 40 M12X1,25 84 40 6,5 20 19 21 17 17,5 22 12 19 32 15
GY-50-63 50-63 M16X1,5 112 50 8 27 22 27,5 23 22 27 16 22 40 11
GY-80-100 80-100 M20x1,5 133 63 10 38 30 31,5 25 27,5 34 20 29 45 7,5
