Accessories for Cylinders Series 60 - Center Trunnion
Download & Save as PDF File PDF Download

Center Trunnion Center Trunnion Model F
Material: Zinc-plated Steel
Supplied with: 1x Intermediate trunnion, 4x Clamping elements, 4x Locking screws

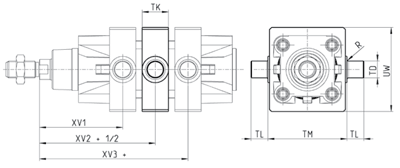

Technical Drawing
Part Number Ø XV1 XV2 XV3 TM TK TD TL UW R
F-32 32 62 73 84 50 20 12 12 60 0,1
F-40 40 71,5 82,5 93,5 63 25 16 16 68 0,15
F-50 50 79 90 101 75 25 16 16 80 0,15
F-63 63 88,5 97,5 106,5 90 30 20 20 95 0,15
F-80 80 97 110 123 110 30 20 20 120 0,15
F-100 100 104,5 120 135,5 132 30 25 25 135 0,2
F-125 125 123 145 167 160 30 25 25 160 0,2
+ = Add the stroke
