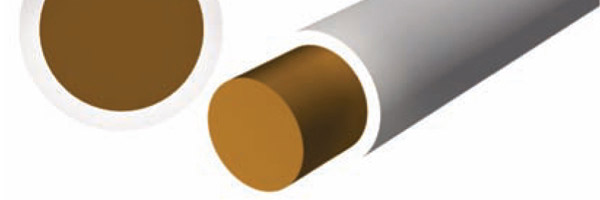

European BIOFLEX-500-JZ Cable Bio-Fuel Resistant

AWM Style 1007

Part No:	AWG	Conductor		Normal O.D		Weight Lb / KFT
Part No:	AWG	Inches	mm	Inches	mm	Weight Lb / KFT
S16A01VX-16	16	0.0508	1.290	0.0828	2.103	9.84
S16A19VX-16	16(19/29)	0.0539	1.369	0.0859	2.182	9.61
S18A01VX-16	18	0.0403	1.024	0.0723	1.836	6.63
S18A19VX-16	18(19/30)	0.0476	1.209	0.0796	2.022	7.80
S20A01VX-16	20	0.0320	0.813	0.0640	1.626	4.55
S20A07VX-16	20(7/28)	0.0390	0.991	0.0710	1.803	4.99
S20A19VX-16	20(19/32)	0.0385	0.978	0.0705	1.791	5.41
S22A01VX-16	22	0.0253	0.643	0.0573	1.455	3.20
S22A07VX-16	22(7/30)	0.0300	0.762	0.0620	1.575	3.58
S22A19VX-16	22(19/32)	0.0295	0.749	0.0615	1.562	3.71
S24A01VX-16	24	0.0201	0.511	0.0521	1.323	2.32
S24A07VX-16	24(7/32)	0.0240	0.610	0.0560	1.423	2.65
S24A19VX-16	24(19/36)	0.0242	0.615	0.0562	1.427	2.69
S26A01VX-16	26	0.0159	0.404	0.0479	1.217	1.73
S26A07VX-16	26(7/34)	0.0190	0.483	0.0510	1.295	1.84
S26A19VX-16	26(19/38)	0.0190	0.483	0.0510	1.295	1.95
S28A01VX-16	28	0.0126	0.320	0.0446	1.133	1.35
S28A07VX-16	28(7/36)	0.0150	0.381	0.0470	1.194	1.43
S30A01VX-16	30	0.0100	0.254	0.0420	1.067	1.09
S30A07VX-16	30(7/38)	0.0120	0.305	0.0440	1.118	1.17

Technical Data

Approvals

Conductor:

Tin plated copper
Solid or stranded (ASTM B-33/ASTM B-286)
Bare copper and other conductors available.

UL AWM Style 1007
