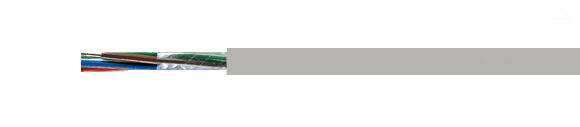

Telephone Cables & Fire Warning Cables | S-YY Lg Switch Board Cable | Sealcon

European Part-No.	Description & No. of Pairs x Diameter in mm	Outer Ø (mm)	Cop. Weight kg/km	Weight kg/km	AWG
34300	S-YY Lg 30x1x0.5	9.6	59.0	128.0	-
34301	S-YY Lg 60x1x0.5	11.9	118.0	233.0	-
34302	S-YY Lg 10x1x0.6	7.9	28.0	98.0	-
34303	S-YY Lg 20x1x0.6	9.6	57.0	132.0	-
34304	S-YY Lg 30x1x0.6	11.1	85.0	183.0	-
34305	S-YY Lg 60x1x0.6	15.4	170.0	344.0	-
34306	S-YY Lg 80x1x0.6	18.3	226.0	445.0	-
34307	S-YY Lg 20x1x1.0	14.5	157.0	292.0	-
34308	S-YY Lg 24x1x1.0	15.2	188.0	328.0	-
34309	S-YY Lg 32x1x1.0	16.3	251.0	430.0	-
34310	S-YY Lg 40x1x1.0	17.8	314.0	515.0	-
34311	S-YY Lg 60x1x1.0	22.2	471.0	710.0	-

Technical Data

European

Switchboard cable according to DIN VDE 0813
Temperature Range
During Operation
-5°C to +50°C (+23°F to +122°F)
Before and After Installation
-30°C to +70°C (-22°F to +158°F)
Electrical Characteristics
According to VDE 0813 at +20°C/+68°F
Conductor Resistance
0.5 mm - max. 96 Ohm/km
0.6 mm - max. 65 Ohm/km
1.0 mm - max. 23.4 Ohm/km

Nominal Voltage
0.5 mm - max. 375 V
0.6 mm - max. 375 V
1.0 mm - max. 400 V
Test Voltage conductor/conductor
0.5 mm - 2000 V
0.6 mm - 2500 V
1.0 mm - 2500 V
Insulation Resistance
Min. 100 MOhm x km
Min. permissible Bending Radius
According to DIN VDE 0891 part 3
during operation max. 7.5 x cable Ø

Approvals

Cable Construction

Bare copper conductor, solid PVC conductor insulation, YI1 to DIN VDE 0207 part 4
Conductor identification to DIN VDE 0813
Conductors stranded in layers
Conductor wrapping with plastic tape
PVC outer jacket, YM1 to DIN VDE 0207 part 5
Jacket color: Gray (RAL 7032)

Application

In DIN VDE the operational areas are defined, where the applications of switchboard cables are permitted. These cables are preferred for the transmission of data signals of telecommunication and control processing i.e. in interlocking installations, to connect the outdoor cables with relay groups as well as for fixed installation to interconnect the racks and distributor frames. This type is not allowed for installation of heavy current operation.

= The product is conformed with the EC Low-Voltage Directive 2006/95/EG.

Properties

PVC self-extinguishing and flame retardant according to VDE 0482-332-1-2, DIN EN 60332-1-2 / IEC 60332-1 (equivalent DIN VDE 0472 part 804 test method B)
The materials used in manufacture are cadmium-free, contain no silicone and are free from substances harmful to the wetting properties of lacquers

Note

The product is conformed with the EC Low-Voltage Directive 73/23/EEC and 93/68/EEC.
