Ship Wiring & Marine Cable: Light Marine Power Cable XLFMKK
Copper Shielded

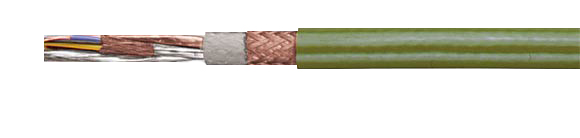

Light Marine Power Cable XLFMKK copper shielded, Ship Wiring & Marine Cables, Sealcon, European
Technical Data
  • According to VG 88778/66
  • Conductor Operating Temperature
    Max. +85°C/+185°F
  • Min. Installation Temperature
    -10°C/+14°F
  • Nominal Voltage 250 V
  • Minimum Bending Radius
    Approx. 5x cable Ø

More... Cable structure Cable Construction

Application

 Application

Note

 Note

Properties

 Properties

Part-No. Description & No. Conductors x cross-sec. mm2 Outer
Diameter 		Copper Weight
kg/km 		Weight
ca. kg/km 		AWG
59336  XLFMKK 2x2x0.75 16.0 160.0 370.0 18
59337  XLFMKK 4x2x0.75 18.1 277.0 490.0 18
59338  XLFMKK 11x2x0.75 26.2 658.0 1080.0 18

Cable Construction  to top up arrow
  • Stranded copper conductors to DIN VDE 0295 cl. 2, BS 6360 cl. 2 and IEC 60228 cl. 2
  • PVC conductor insulation with polyamide coating
  • Conductors laid up in pairs
  • Pairs copper shielded
  • Separating foil
  • PVC inner jacket
  • Plain copper braided shield, waterproofed
  • PVC outer jacket, color green
Properties
 to top up arrow
  • Color code
    All sizes are color coded
Note  to top up arrow
  • AWG sizes are approximate equivalent values. The actual cross-section is in mm².
Application  to top up arrow

For fixed installation on marine craft above and below deck.
