Ship Wiring & Marine Cable: Ships Wiring Cables - SY Stranded Type

Ships Wiring Cables -SY Stranded Type, Ship Wiring & Marine Cables, Sealcon, European
Technical Data
  • Special PVC cable
  • Temperature Range
    Flexing +5°C/+41°F to 70°C/158°F
    Fixed Installation -40°C/-40°F to 70°C/158°F
  • Nominal Voltage 250 V
  • Test Voltage 3000 V
  • Minimum Bending Radius
    Approx. 7.5 x cable Ø

More... Cable structure Cable Construction

Application

 Application

Note

 Note

Properties

 Properties

Part-No. Description & No. Conductors x cross-sec. mm2 Outer
Diameter 		Copper Weight
kg/km 		Weight
ca. kg/km 		AWG
59460  WIRING CABLE -SY 2x1.5 9.7 28.7 146.0 16
59461  WIRING CABLE -SY 3x1.5 10.1 43.1 166.0 16
59462  WIRING CABLE -SY 4x1.5 10.8 57.5 198.0 16
59463  WIRING CABLE -SY 5x1.5 11.6 71.9 230.0 16
59464  WIRING CABLE -SY 7x1.5 13.3 100.6 299.0 16
59465  WIRING CABLE -SY 3x2.5 11.6 72.1 231.0 14
59466  WIRING CABLE -SY 4x2.5 13.3 95.8 298.0 14
59467  WIRING CABLE -SY 5x2.5 14.3 120.0 355.0 14
59468  WIRING CABLE -SY 4x4 16.2 153.5 358.0 12
59469  WIRING CABLE -SY 5x4 17.5 193.0 535.0 12
59470  WIRING CABLE -SY 4x6 18.4 230.3 595.0 10
59471  WIRING CABLE -SY 5x6 19.7 288.0 714.0 10

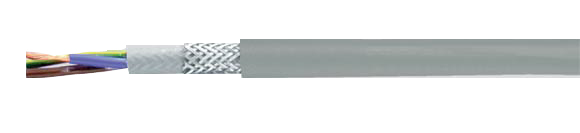

Cable Construction  to top up arrow
  • Fine stranded, plain copper conductors according to DIN VDE 0295 cl. 5, BS 6360 cl. 5 and IEC 60228 cl. 5
  • PVC-based conductor insulation YI2 acc. to DIN VDE 0207
  • Conductors color coded to DIN VDE 0293 or black conductors with continuous white numbering
  • Conductors stranded in layers with optimal lay-length
  • PVC inner jacket
  • Galvanized steel wire braided overall shielding
  • Outer jacket acc. to DIN VDE 0207 part 5
  • Outer jacket color: Gray (RAL 7001)
Properties
 to top up arrow
  • Extensively oil resistant, Chemical resistance - see table Technical Information
  • Flame resistant and self-extinguishing as per VDE 0472 part 804, test B and IEC 60332-1
  • Approved by
    Germanischer Lloyd
Note  to top up arrow
  • AWG sizes are approximate equivalent values. The actual cross-section is in mm².
Application  to top up arrow

The ideal cable for all fixed installations. These SY cables are also suited for use in production lines, conveyor systems, automatic assembly lines, etc. as well as in ship building. The tinned copper wire braiding offers excellent protection against both mechanical and electronic interference to the cable function.
