Ship Wiring & Marine Cable: Ships Wiring Cables - SY Single Conductors

Ships Wiring Cables -SY Single Conductors, Ship Wiring & Marine Cables, Sealcon, European
Technical Data
  • Special PVC single conductors acc. to DIN VDE 0250
  • Temperature Range
    Flexing +5°C/+41°F to +70°C/158°F
    Fixed Installation -40°C/-40°F to 70°C/158°F
  • Nominal Voltage 250 V
  • Test Voltage 1500 V
  • Minimum Bending Radius
    Approx. 7.5x cable Ø

More... Cable structure Cable Construction

Application

 Application

Note

 Note

Properties

 Properties

Part-No. Description & No. Conductors x cross-sec. mm2 Outer
Diameter 		Copper Weight
kg/km 		Weight
ca. kg/km 		AWG
59450  WIRING CABLE -SY 1x6 8.3 57.4 148.0 10
59451  WIRING CABLE -SY 1x10 10.3 95.8 221.0 8
59452  WIRING CABLE -SY 1x16 10.3 153.4 293.0 6
59453  WIRING CABLE -SY 1x25 13.7 239.5 447.0 4
59454  WIRING CABLE -SY 1x35 15.2 335.0 565.0 2
59455  WIRING CABLE -SY 1x50 18.1 479.5 788.0 1
59456  WIRING CABLE -SY 1x70 21.1 671.0 1061.0 2/0
59457  WIRING CABLE -SY 1x95 22.8 910.0 1355.0 3/0

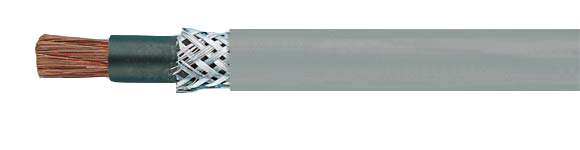

Cable Construction  to top up arrow
  • Fine wire stranded, plain copper conductors according to DIN VDE 0295 cl. 5, BS 6360 cl. 5 and IEC 60228 cl. 5
  • PVC conductor insulation
  • Tinned steel wire braided shielding
  • PVC outer jacket (RAL 7001)
  • Outer jacket color: Gray
Properties
 to top up arrow
  • Flame resistant and self-extinguishing as per VDE 0472 part 804, test B and IEC 60332-1
  • Oil resistant acc. to DIN VDE 0250
  • Approved by
    Germanischer Lloyd
Note  to top up arrow
  • AWG sizes are approximate equivalent values. The actual cross-section is in mm².
Application  to top up arrow

For installation in measuring and control units, for communication systems, production lines and conveyor belts. For fixed or mobile installation in dry, damp or wet areas. These PVC single conductors are also suitable for use in ship building.
