Ship Wiring & Marine Cable: Light Marine Telecommunication Cable LFMSGSSGO
Halogen-Free, 2x Copper Shielded
Light Marine Telecommunication Cable LFMSGSSGO halogen-free, 2x copper shielded, Ship Wiring & Marine Cables, Sealcon, European
Technical Data
  • According to VG 95218 part 66, 2x copper shielding with improved cross-talk protection. No loss of insulation if directly exposed to open flame. No special flame proof layer necessary.
  • Conductor Operating Temperature
    Max. +85°C/+185°F
  • Min. Installation Temperature -10°C/+14°F
  • Nominal Voltage 250 V
  • Minimum Bending Radius
    Approx. 6x cable Ø

More... Cable structure Cable Construction

Application

 Application

Note

 Note

Properties

 Properties

Part-No. Description & No. Conductors x cross-sec. mm2 Outer
Diameter 		Copper Weight
kg/km 		Weight
ca. kg/km 		AWG
59396  LFMSGSSGO 5x3X0.4 16.0 248.0 420.0 -
59397  LFMSGSSGO 12x3X0.4 23.0 500.0 740.0 -

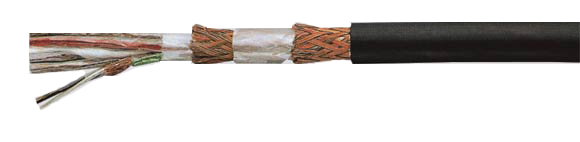

Cable Construction  to top up arrow
  • Stranded (7) tinned copper conductor
  • Cross-linked polyolefin insulation
  • Conductor stranded in pairs with optimal lay-length
  • Tinned copper, braided shielding over each pair
  • Polyester foil separator
  • Overall polyester taped inner covering
  • Tinned copper, braided overall shield
  • Halogen-free insulating layer
  • Overall tinned copper, braided shield
  • Polyester foil separator
  • Elastomer based outer jacket
  • Jacket color: Black
Properties
 to top up arrow
  • Oil resistant and flame retardant
  • Color code
    All sizes and dimensions are color coded
Note  to top up arrow
  • AWG sizes are approximate equivalent values. The actual cross-section is in mm².
Application  to top up arrow

For fixed installation on marine craft above and below decks.
