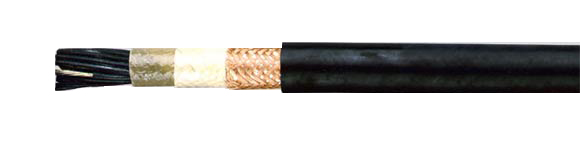

Ship Wiring & Marine Cable: Marine Telecommunication Cable FMGSGO
Halogen-Free, Copper Shielded
Marine Telecommunication Cable FMGSGO halogen-free, copper shielded, Ship Wiring & Marine Cables, Sealcon, European
Technical Data
  • According to VG 95218 part 62, shielded.
    No loss of insulation if directly exposed to open flame.
    No special flame proof layer necessary
  • Conductor Operating Temperature
    Max. +85°C/+185°F
  • Nominal Voltage 250 V
  • Minimum Bending Radius
    Approx. 5x cable Ø

More... Cable structure Cable Construction

Application

 Application

Note

 Note

Properties

 Properties

Part-No. Description & No. Conductors x cross-sec. mm2 Outer
Diameter 		Copper Weight
kg/km 		Weight
ca. kg/km 		AWG
59380  FMGSGO 2X2X0.75 9.0 89.0 110.0 18
59381  FMGSGO 4X2X0.75 12.5 142.0 190.0 18
59382  FMGSGO 6X2X0.75 14.5 189.0 260.0 18
59383  FMGSGO 8X2X0.75 15.5 225.0 310.0 18
59384  FMGSGO 10X2X0.75 17.0 272.0 380.0 18
59385  FMGSGO 14X2X0.75 18.5 338.0 465.0 18
59386  FMGSGO 16X2X0.75 20.0 373.0 520.0 18

Cable Construction  to top up arrow
  • Stranded copper conductor
  • Heat resistant EPR-insulation 3GI3, to DIN VDE 0207 part 20
  • Conductor quad twisted
  • Filling compound covering all conductors
  • Overall copper braided shielding
  • Polyester foil taping
  • Chloroprene based outer jacket 5GM3, to DIN VDE 0207 part 21
  • Jacket color: black
Properties
 to top up arrow
  • Halogen-free and flame retardant
  • Color code
    All sizes and dimensions are color coded
Note  to top up arrow
  • AWG sizes are approximate equivalent values. The actual cross-section is in mm².
Application  to top up arrow

For fixed installation on marine craft above and below decks.
