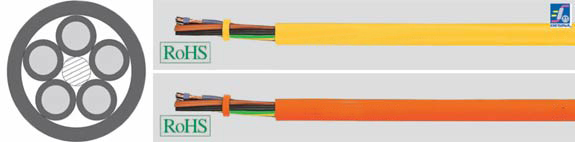

European Special Cables: SENSORFLEX

Sensor Actuator Cable, PVC, PUR or PVC/PUR
SENSORFLEX sensor actuator cable, PVC, PUR or PVC/PUR , RoHS Approved, RoHS Compliant, European  , Sealcon
European Part-No. Description & No. Conductors x cross-sec. mm2 Outer
Diameter
Conductor
Colors
Copper weight
kg/km
Weight
ca. kg/km
AWG
yellow orange gray
76061 76076 73473 SENSORFLEX 3X0.25 4.4 View Colors 7.2 22.0 24
76062 76077 73466 SENSORFLEX 3X0.25 4.4 View Colors 7.2 22.0 24
76063 76078 73474 SENSORFLEX 4X0.25 4.7 View Colors 9.6 26.0 24
76064 76079 73471 SENSORFLEX 4X0.25 4.7 View Colors 9.6 26.0 24
76065 76080 76094 SENSORFLEX 5X0.25 4.8 View Colors 12.0 30.0 24
76066 76081 76095 SENSORFLEX 5X0.25 4.8 View Colors 12.0 30.0 24
76070 76085 76099 SENSORFLEX 3X0.34 4.9 View Colors 9.8 30.0 22
76071 76086 73472 SENSORFLEX 3X0.34 4.9 View Colors 9.8 30.0 22
73485 76087 73368 SENSORFLEX 4X0.34 5.2 View Colors 13.1 43.0 22
73484 76088 72973 SENSORFLEX 4X0.34 5.2 View Colors 13.1 43.0 22
78240 78241 73728 SENSORFLEX 5X0.34 5.9 View Colors 16.4 54.0 22
76072 76089 73657 SENSORFLEX 5X0.34 5.9 View Colors 16.4 54.0 22
73870 76090 73548 SENSORFLEX 5X0.34 5.9 View Colors 16.4 54.0 22
European Part-No. Jacket Material Conductor Colors Fine
Wire
High
Flex
yellow orange gray
76061 76076 73473 PVC brown, blue, black -
X
76062 76077 73466 PUR brown, blue, black -
X
76063 76078 73474 PVC brown, blue, black, white -
X
76064 76079 73471 PUR brown, blue, black, white -
X
76065 76080 76094 PVC brown, blue, black, white, green-yellow -
X
76066 76081 76095 PVC/PUR brown, blue, black, white, green-yellow -
X
76070 76085 76099 PVC brown, blue, black -
X
76071 76086 73472 PVC/PUR brown, blue, green-yellow - X
73485 76087 73368 PVC brown, blue, black, white X
-
73484 76088 72973 PVC/PUR brown, blue, black, white -
X
78240 78241 73728 PVC brown, blue, black, white, gray X
-
76072 76089 73657 PVC brown, blue, black, white, green-yellow X
-
73870 76090 73548 PVC/PUR brown, blue, black, white, green-yellow -
X
Technical Data European
  • Temperature Range
    Flexing
    -5°C to +80°C (+23°F to +176°F)
    Fixed Installation
    -30°C to +80°C (-22°F to +176°F)
  • Peak Operating Voltage
    To 0.25 mm² 350 V
    From 0.34 mm² 500 V
  • A.C. Test Voltage, 50 Hz
    To 0.25 mm² 1200 V
    From 0.34 mm² 2000 V
  • Minimum Bending Radius
    Sensorflex PUR - Approx. 7.5x cable Ø
    Sensorflex PVC/PUR - Approx. 7.5x cable Ø
    Sensorflex PVC - Approx. 15x cable Ø
Approvals
RoHSCE
Cable Construction
  • Sensorflex PVC
    • Bare copper, fine wire conductors in acc. with DIN VDE 0295 cl. 5 and/or cl. 6 and IEC 60228 cl. 5 and cl. 6
    • PVC conductor insulation, conductor colors see below
    • Special PVC jacket
  • Sensorflex PUR
    • Bare copper, ultra-fine wire conductors acc. to DIN VDE 0295 cl. 6 and/or IEC 60228 cl. 6
    • PVC conductor insulation, conductor colors see below
    • PUR jacket
  • Sensorflex PVC/PUR
    • Construction as above, except
    • PVC inner jacket, with PUR jacket applied over it by means of coextrusion
Application

These cables are used in connector systems for sensors and actuators.
In combination with injected circular connectors and installed sensor-actuator boxes, they constitute an important connecting element between the periphery and the PLC in production systems.
The assembled cables offer an attractive opportunity to reduce costs, not only in the field of automation technology, but also in the entire manufacturing industry.
While previously it was necessary to carry out time-consuming wiring of switchgear cabinets and machines, now field bus technology has made it possible to move the periphery interfaces from the switchgear cabinets to the machines and systems. Moving the I/O points to the system periphery enables significant reductions in installation costs.
CE Approval = The product is conformed with the EC Low-Voltage Directive 73/23/EEC and 93/68/EEC.

Properties
  • Sensorflex PVC
    • Oil resistant - for Chemical Resistance, see table Technical Information
    • PVC self-extinguishing and flame retardant according to VDE 0482-332-1-2, DIN EN 60332-1-2 / IEC 60332-1 (equivalent DIN VDE 0472 part 804 test method B)
  • Sensorflex PUR
    • PUR jacket: low adhesion, extremely abrasion resistant, resistant to hydrolysis and microbial attack
  • Sensorflex PVC/PUR
    • The cables with the highly flexible stranded conductor, cl. 6, are suitable for drag chain applications
    • These cables are produced to high quality specifications and conform with a yellow jacket to the DESINA®-standard
  • Jacket color yellow (RAL 1021) according to DESINA®
Note
  • All cables can be delivered with UL/CSA approval and Cu shield.
  • Desina® Explanation: see introduction.
Cable Accessories
  • Coming Soon!
