European Special Cables: Sensorflex-H
Sensor Actuator Cables, Halogen-Free, Highly Flexible Drag Chain Feedback Cable, PUR, EVA +125°C/+257°F
Sensorflex-H, sensor actuator cables, halogen-free, high flexible drag chain feedback cable, PUR, EVA +125°C, RoHS Approved, RoHS Compliant, European , Sealcon

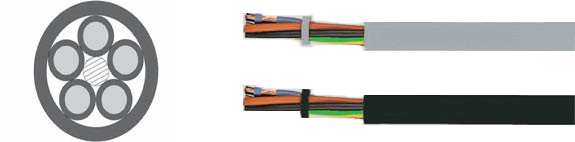

Sensorflex-H (Li12Y11Y)
Grey Cable
Sensorflex-H Li12Y11Y Highly Flexible Drag Chain Cable, PUR
European Part-No. Description & No. Conductors x cross-sec. mm2 Outer
Diameter 		Conductor
Colors		 Copper weight
kg/km 		Weight
ca. kg/km 		AWG
Black Gray
76283 76299 Sensorflex-H 2X0.25 4.4 View Colors 4.8 22.0 24
76284 76300 Sensorflex-H 3X0.25 4.4 View Colors 7.2 22.0 24
76285 76301 Sensorflex-H 4X0.25 4.7 View Colors 9.6 26.0 24
76286 76302 Sensorflex-H 5X0.25 4.8 View Colors 12.0 30.0 24
76287 76303 Sensorflex-H 2X0.34 4.9 View Colors 6.5 30.0 22
76288 76304 Sensorflex-H 3X0.34 4.9 View Colors 9.8 30.0 22
76289 76305 Sensorflex-H 4X0.34 5.2 View Colors 13.1 43.0 22
76290 76306 Sensorflex-H 5X0.34 5.9 View Colors 16.4 54.0 22
78265 78266 Sensorflex-H 5X0.34 5.9 View Colors 16.4 54.0 22
76291 76307 Sensorflex-H 2X0.5 5.0 View Colors 9.6 40.0 20
78267 78268 Sensorflex-H 3X0.5 5.7 View Colors 14.4 43.0 20
76292 76308 Sensorflex-H 3X0.5 5.0 View Colors 39.0 40.0 20
76293 76309 Sensorflex-H 4X0.5 5.5 View Colors 19.2 47.0 20
76294 76310 Sensorflex-H 5X0.5 6.0 View Colors 24.0 55.0 20
76295 76311 Sensorflex-H 2X0.75 5.7 View Colors 14.4 47.0 18
78269 78270 Sensorflex-H 3X0.75 5.9 View Colors 21.6 54.0 18
76296 76312 Sensorflex-H 3X0.75 5.9 View Colors 21.6 54.0 18
78271 78272 Sensorflex-H 4X0.75 6.2 View Colors 28.8 67.0 18
76297 76313 Sensorflex-H 4X0.75 6.0 View Colors 28.8 66.0 18
78273 78274 Sensorflex-H 5X0.75 7.0 View Colors 28.8 66.0 18
76298 76314 Sensorflex-H 5X0.75 7.0 View Colors 36.0 80.0 18
to top up arrow
Sensorflex-H Li9Y11Y Highly Flexible Drag Chain Cable, PUR
European Part-No. Description & No. Conductors
x cross-sec. mm2		 Outer
Diameter 		Conductor
Colors		 Copper weight
kg/km 		Weight
ca. kg/km 		AWG
75801 Sensorflex-H 3X0.25 4.5 View Colors 7.2 22.0 24
77468 Sensorflex-H 4X0.25 4.7 View Colors 9.6 26.0 24
76705 Sensorflex-H 8X0.25 6.0 View Colors 19.2 49.0 24
77427 Sensorflex-H 4X0.34 4.9 View Colors 13.1 43.0 22
78275 Sensorflex-H 3X0.75 6.2 View Colors 21.6 54.0 18
77428 Sensorflex-H 3X0.75 6.2 View Colors 21.6 54.0 18
77429 Sensorflex-H 4X0.75 6.2 View Colors 28.8 66.0 18
to top up arrow
Sensorflex-H Li4G4G Unqualified for Drag Chain Cable, Jacket EVA
European Part-No. Description & No. Conductors
x cross-sec. mm2		 Outer
Diameter 		Conductor
Colors		 Copper weight
kg/km 		Weight
ca. kg/km 		AWG
78359 Sensorflex-H 4X0.75 7.0 View Colors 28.8 65.0 18
73575 Sensorflex-H 3X1.0 7.0 View Colors 29.0 60.0 17
to top up arrow
Sensorflex-H Li12Y11Y Conductor Colors
European Part-No. Jacket Material Conductor Colors Fine
Wire 		High
Flex
Black Gray
76283  76299 PUR brown, blue - X
76284  76300 PUR brown, blue, black - X
76285  76301 PUR brown, blue, black, white - X
76286  76302 PUR brown, blue, black, white, gray - X
76287  76303 PUR brown, blue - X
76288  76304 PUR brown, blue, black - X
76289  76305 PUR brown, blue, black, white - X
76290  76306 PUR brown, blue, black, white, gray - X
78265  78266 PUR brown, blue, black, white, green-yellow - X
76291  76307 PUR brown, blue - X
78267  78268 PUR JZ, black with numbering + green-yellow - X
76292  76308 PUR brown, blue, black - X
76293  76309 PUR brown, blue, black, white - X
76294  76310 PUR brown, blue, black, white, gray - X
76295  76311 PUR brown, blue - X
78296  78270 PUR brown, blue, green-yellow - X
76296  76312 PUR brown, blue, black - X
78271  78272 PUR brown, blue, black, green-yellow - X
76297  76313 PUR brown, blue, black, white - X
78273  78274 PUR JZ, black with numbering + green-yellow - X
76298  76314 PUR brown, blue, black, white, gray - X
to top up arrow
Sensorflex-H Li9Y11Y Conductor Colors
European Part-No. Jacket
Color 		Jacket Material Conductor Colors Fine
Wire 		High
Flex
75801  Gray
RAL 7001 		PUR brown, blue, black - X
77468  Gray
RAL 7001		 PUR brown, blue, black, white - X
76705  Gray
RAL 7001		 PUR DIN 47100 - X
77427  Gray
RAL 7001		 PUR brown, blue, black, white - X
78275  Gray
RAL 7001		 PUR JZ, black with numbering + green-yellow - X
77428  Gray
RAL 7001		 PUR JZ, black with numbering + green-yellow - X
77429  Gray
RAL 7001		 PUR JZ, black with numbering + green-yellow - X
to top up arrow
Sensorflex-H Li4G4G Conductor Colors
Part-No. Jacket
Color 		Jacket Material Conductor Colors Fine
Wire 		High
Flex
78359  Red-brown
RAL 8016 		EVA brown, blue, black, green-yellow X -
73575  Red-brown
RAL 8016		 EVA brown, blue, green-yellow X -
to top up arrow
Technical Data European
  • Temperature Range
    Li12Y11Y/Li9Y11Y
    Flexing
    -30°C to +80°C (-22°F to +176°F)
    Fixed Installation
    -40°C to +80°C (-40°F to +176°F)
    Li4G4G
    Flexing
    -25°C to +125°C (-13°F to +257°F)
    Fixed Installation
    -40°C to +125°C (-40°F to +257°F)
  • Operating Voltage
    Up to 0.25 mm² 350 V
    0.34 mm² and greater 500 V
  • A.C. Test Voltage, 50 Hz
    Up to 0.25 mm² 1200 V
    0.34 mm² and greater 2000 V
  • Minimum Bending Radius
    Sensorflex-H Li12Y11Y - Approx. 5x cable Ø
    Sensorflex-H Li9Y11Y - Approx. 7.5x cable Ø
    Sensorflex-H Li4G4G - Approx. 15x cable Ø
Approvals
RoHSCE
Cable Construction
  • Sensorflex-H (Li12Y11Y-HF)
    • Bare copper, extra-fine wire conductor according to DIN VDE 0295 cl. 6 and IEC 60228 cl. 6
    • TPE conductor insulation, conductor colors see below
    • PUR jacket
    Sensorflex-H (Li9Y11Y-HF)
    • Bare copper, extra-fine wire conductor according to DIN VDE 0295 cl. 6 and IEC 60228 cl. 6
    • PP conductor insulation, conductor colors see below
    • PUR jacket
    Sensorflex-H (Li4G4G)
    • Tinned copper, fine wire conductor according to DIN VDE 0295 cl. 5 and IEC 60228 cl. 5
    • EVA-based compound for conductor and jacket
    • Jacket red/brown (approx. RAL 8016)
Application

These cables are used in connector systems for sensors and actuators.
In combination with injected circular connectors and installed sensor-actuator boxes, they constitute an important connecting element between the periphery and the PLC in production systems.
The assembled cables offer an attractive opportunity to reduce costs, not only in the field of automation technology, but also in the entire manufacturing industry.
While previously it was necessary to carry out time-consuming wiring of switchgear cabinets and machines, now field bus technology has made it possible to move the periphery interfaces from the switchgear cabinets to the machines and systems. Moving the I/O points to the system periphery enables significant reductions in installation costs.
CE Approval = The product is conformed with the EC Low-Voltage Directive 73/23/EEC and 93/68/EEC.
Properties
  • Sensorflex-H (Li12Y11Y-HF) and Sensorflex-H (Li9Y11Y-HF)
    • PUR jacket, low adhesion, extremely abrasion resistant, resistant to hydrolysis and microbial attack
    • Highly flexible drag chain cable
    Sensorflex-H (Li4G4G)
    • Heat-resistant
    • Not suitable for use with drag chains
Note
  • The product is conformed with the EC Low-Voltage Directive 73/23/EEC and 93/68/EEC.
Cable Accessories
  • Coming Soon!
Cable Technical Data Construction and ApplicationProperties and Note Accessories
